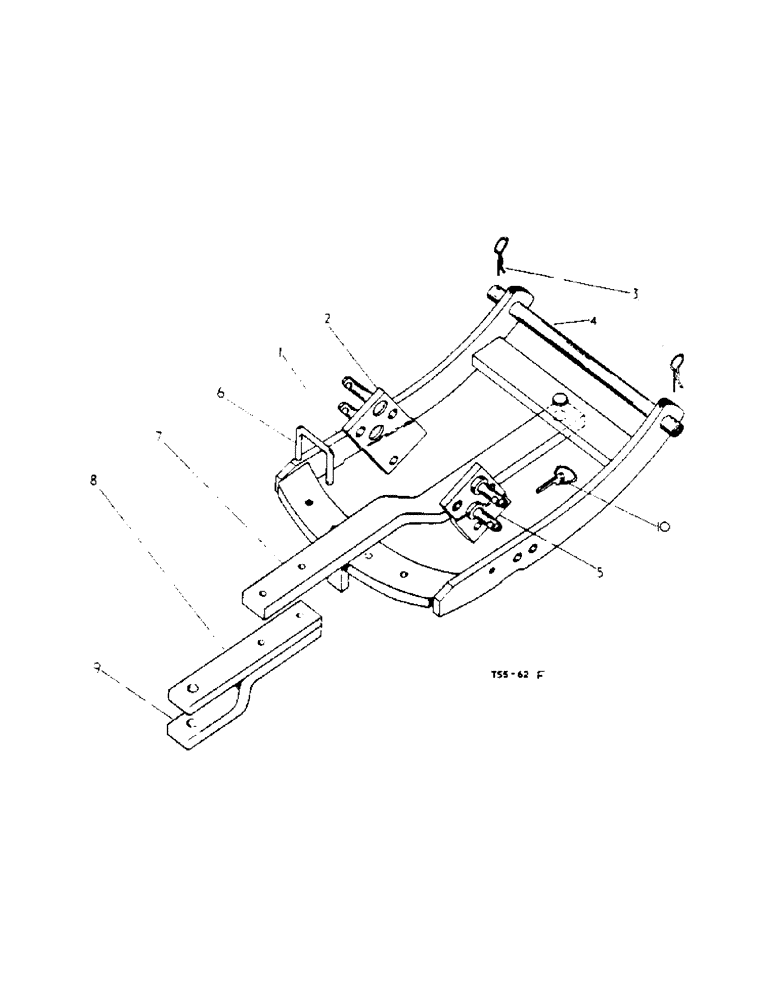

Запчасти Case IH 434 (6-065) - DRAWBAR ATTACHMENTS, 3070837R92, 3070845R92 - ATTACHMENTS (88) - ACCESSORIES

3070837R92

ATTACHMENT, drawbar, adjustable height

1шт.

For machines not fitted with three point linkage but fitted with 540 and 745 r.p.m. P.T.O. (std. hyd. lift may or may not be fitted) (adjustable height clevis)

1шт.

3070845R92

ATTACHMENT, drawbar, adjustable height

1шт.

For machines not fitted with three point linkage but fitted with 1000 r.p.m. P.T.O. (std. hyd. lift may or may not be fitted)(adjustable height clevis)

1шт.

1

3071328R91

FRAME

drawbar, cpte.

1шт.

1

704022R94

FRAME drawbar, cpte.

1шт.

For service in attachment 3070837R91

1шт.

For service in attachment 3070845R91

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

hex-hd., 3/4" x 2-1/4"

2шт.

220081

NUT

hex., 3/4"

2шт.

2

3060786R1

PLATE, drawbar support L.H.

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

hex-hd., 3/4" x 1-3/8"

2шт.

3

3067210R1

CLIP

spring

2шт.

4

704058R1

PIN

drawbar frame

1шт.

5

3060787R1

PLATE, drawbar support R.H.

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

hex-hd., 3/4" x 1-3/8"

2шт.

6

3071789R2

PIN

stop, swinging drawbar

1шт.

720631R1

LINCH PIN

PIN, cotter

1шт.

7

3071322R2

SWINGING DRAWBAR

DRAWBAR, swinging (Adjustable height), for 3070837R92

1шт.

On orders for 3071322R11 or 3071333R11, furnish 3071322R2 or 3071333R2 respectively together with RETAINER 3073934R11 and two BOLTS 271560

1шт.

7

3071333R2

SWINGING DRAWBAR

DRAWBAR, swinging (Adjustable height), for 3070845R92

1шт.

On orders for 3071322R11 or 3071333R11, furnish 3071322R2 or 3071333R2 respectively together with RETAINER 3073934R11 and two BOLTS 271560

1шт.

7

3064331R1

BAR

DRAWBAR, swinging, (Adjustable height), for 3070837R92

1шт.

For service in attachment 3070837R91

1шт.

On orders for 3064331R11 or 3068370R11, furnish 3064331R1 or 3068370R1 respectively together with RETAINER 3073934R11 and two BOLTS 271560

1шт.

7

3068370R1

DRAWBAR

swinging, (Adjustable height), for 3070845R92

1шт.

For service in attachment 3070845R91

1шт.

On orders for 3064331R11 or 3068370R11, furnish 3064331R1 or 3068370R1 respectively together with RETAINER 3073934R11 and two BOLTS 271560

1шт.

8

3064334R1

ARM

drawbar clevis

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex-hd., 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

9

3064333R1

DRAWBAR CLAMP

CLEVIS, drawbar

1шт.

3064333R11

ROLLER

CLEVIS, drawbar

1шт.

On orders for CLEVIS 3064333R11, furnish CLEVIS 3064333R1 and ARM 3064334R1

1шт.

10

704212R91

COTTER PIN

PIN, implement cotter, cpte.

1шт.

700531R1

NO LONGER SERVICED

COTTER implement

1шт.

704187R1

LOCKING RING

RING implement cotter

1шт.
