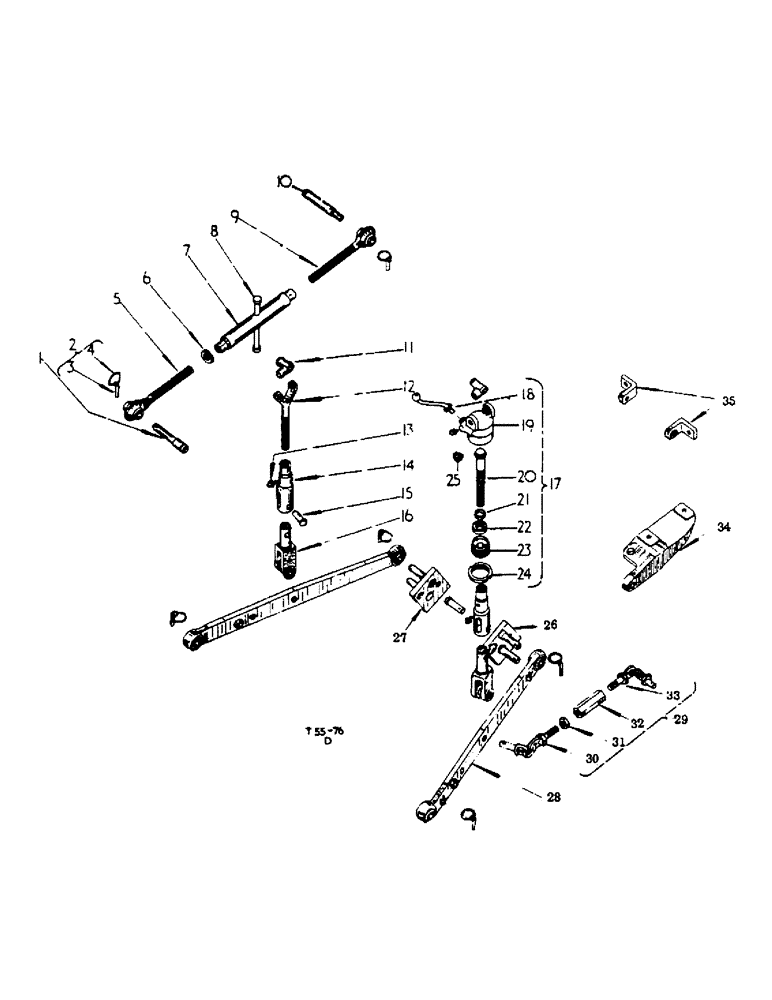

Справочник запчастей Case IH 434 (6-039) - THREE POINT LINKAGE ATTACHMENT - ATTACHMENTS (88) - ACCESSORIES со схемами

3070830R91

ATTACHMENT three point linkage

1шт.

Used only w/Vary Touch Hydraulic Lift Attachment

1шт.

3044339R91

LINK

cpte., top, comprising

1шт.

3074763R1

RETAINER

CIRCLIP

2шт.

3074660R11

HANDLE

1шт.

3074755R1

1шт.

3074756R1

1шт.

3044340R1

BUCKLE

TURNBUCKLE

1шт.

1

3074755R1

top link (cat. 11)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

11

704207R3

PIVOT

SWIVEL, lift rod

2шт.

12

3044350R1

ROD

lift, upper half, L.H.

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

14

3045186R1

TUBE,1.5" ID, 1.906" OD, 7.8" Length

telescoping, lift rod

2шт.

15

3071482R1

std-hd., 3/4" x 2-3/8"

2шт.

720631R1

LINCH PIN

CLIP, spring

2шт.

Q3501

WASHER

25/32" x 1-1/4" x 16 ga.

2шт.

16

3044352R1

FORK

lift rod

2шт.

17

3069056R91

ROD

cpte., lift leveling, comprising: Ref. 18 - 24

1шт.

18

3069062R11

CRANK

leveling control, cpte.

1шт.

435-1612

GROOVED PIN,3/16" x 3/4", Type A

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

19

3069057R1

BOX

leveling gear

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Opt. 1/8"-27 x .66 lg

1шт.

20

3105188R1

ROD

& GEAR, leveling, 434D/21973 up

1шт.

Including 434 Petrol/2444 up

1шт.

3069063R1

GEAR

leveling box pinion, Serial Range: up-434D/21972

1шт.

On orders for GEAR 3069063R1 or ROD 3069066R1 furnish ROD and GEAR 3105188R1 and COLLAR 3105187R1

1шт.

Including up to 434 Petrol/2443

1шт.

3069066R1

ROD

leveling, Serial Range: up-434D/21972

1шт.

On orders for GEAR 3069063R1 or ROD 3069066R1 furnish ROD and GEAR 3105188R1 and COLLAR 3105187R1

1шт.

Including up to 434 Petrol/2443

1шт.

21

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

leveling lift rod, 434D/21973 up

1шт.

Including 434 Petrol/2444 up

1шт.

22

3044346R91

BALL BEARING

BEARING, 1", ball thrust, opt.

1шт.

22

3044347R91

THRUST BEARING

BEARING, 1", ball thrust, opt.

1шт.

22

3044348R91

BEARING, THRUST

BEARING, 1", ball thrust, opt.

1шт.

22

3068049R91

BALL BEARING

BEARING, 1", ball thrust, opt.

1шт.

23

3069064R1

BEARING

leveling rod

1шт.

24

3069065R1

LOCK NUT

leveling rod bearing

1шт.

25

3069066R1

ROD

GEAR lift rod

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, Woodruff, up to 434D/21972

1шт.

Including up to 434 Petrol/2443

1шт.

26

3060787R11

PLATE

cpte., linkage, hitch, R.H.

1шт.

NLS

NO LONGER SERVICED

hex-hd., 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

27

3060786R11

PLATE

cpte., linkage hitch L.H.

1шт.

NLS

NO LONGER SERVICED

hex-hd., 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

28

3044341R91

STRUT

LINK, lower

2шт.

29

3048454R91

X

CHAIN, assy., check, comprising: Ref. 30 - 33

2шт.

30

3048455R91

CHAIN (AG)

END, cpte., check chain link

2шт.

31

218443

NUT

hex., jam, 3/4"

2шт.

32

3048314R1

NUT

check chain adjustment

2шт.

33

3048456R91

CHAIN (AG)

END, cpte., tractor, check chain

2шт.

34

3048461R1

BRACKET

check chain R.H. (illustrated)

1шт.

3048460R1

BRACKET

check chain L.H.

1шт.

17956R1

BOLT,Hex, 5/8" - 11 x 7 3/4"

hex-hd., 5/8" x 7-3/4"

2шт.

3070973R1

BOLT

rect-hd., 5/8" x 8-1/2"

1шт.

102630

SEAL

NUT, hex., 5/8"

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

35

700779R3

BRACKET, check chain inner

2шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

hex-hd., 1/2" x 1-1/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

704194R2

BUSHING

BUSH, lower link

2шт.

704212R91

COTTER PIN

COTTER, w/COTTER 700531R1 & RING 704187R1, cpte., implement

4шт.

700531R1

NO LONGER SERVICED

COTTER, implement

4шт.

704187R1

LOCKING RING

RING, clip, implement cotter

4шт.

704190R51

END

cpte., lower link (cat. 1)

1шт.

704191R51

END

cpte., lower link (cat 11)

1шт.

709307R92

BOLT

EYEBOLT, assy., top link (cat.1 end), comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704178R21

BOLT

EYEBOLT

1шт.

218445

NUT,Jam, 1"-8, G5

1шт.

3074755R1

1шт.

709308R92

BOLT

EYEBOLT, assy., top link (cat.11 end), comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704178R21

BOLT

EYEBOLT

1шт.

3074756R1

1шт.

3074662R1

HOLDER, lynch pin

4шт.
