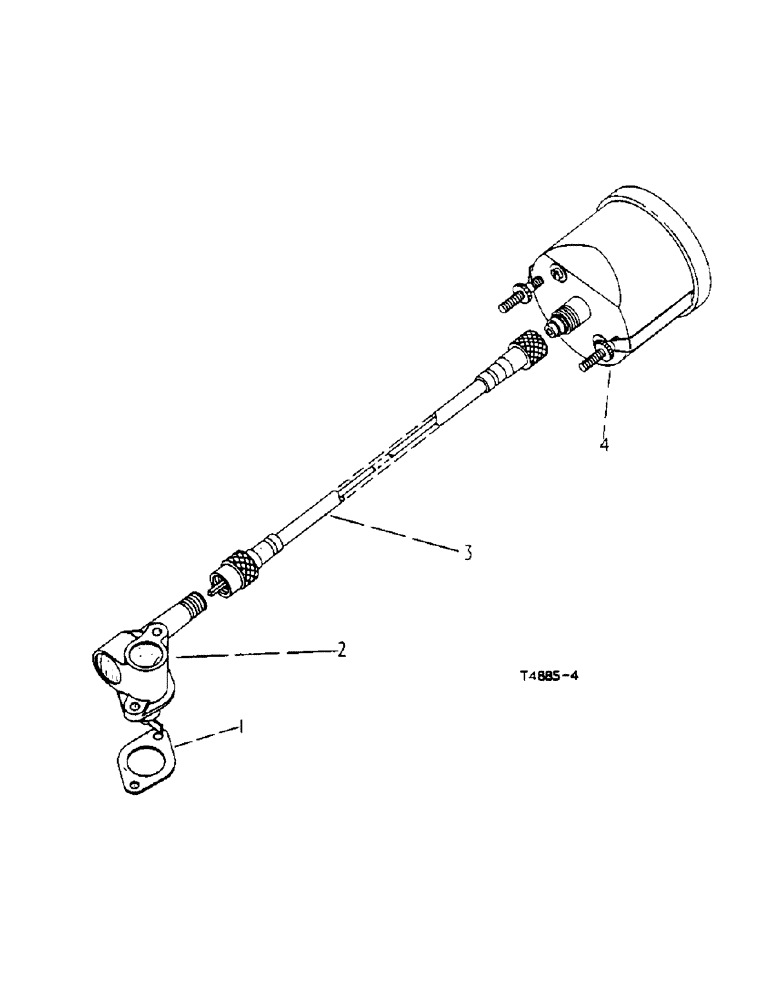

Запчасти Case IH 434 (6-038) - TRACTORMETER ATTACHMENT - ATTACHMENTS (88) - ACCESSORIES

3070506R91

ATTACHMENT, tractormeter, k.p.h., comprising: Ref. 1 - 4

1шт.

3070505R91

TRACTORMETER

ATTACHMENT, tractormeter, m.p.h., comprising: Ref. 1 - 4

1шт.

1

3042467R1

GASKET

hourmeter drive opening cover

1шт.

2

3042474R91

ANGLE

GEAR BOX, assy. optional

1шт.

3070504R91

CASE

GEAR BOX, assy. optional

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

3042473R92

DRIVE

flexible (Smith)

1шт.

3070503R92

FLEXIBLE DRIVE SHAFT

DRIVE flexible (A.C. Delco)

1шт.

3048132R1

CABLE

inner drive (Smith) used w/3042473R91

1шт.

3071265R1

CABLE PULLING GRIP

CABLE, inner drive (Smith)

1шт.

4

3070502R91

METER

TRACTORMETER, k.p.h. (A.C. Delco)

1шт.

4

3070501R91

TRACTORMETER

m.p.h. (A.C. Delco)

1шт.

4

3045067R91

TRACTORMETER

k.p.h. (Smiths)

1шт.

4

3045066R92

METER

TRACTORMETER, m.p.h. (Smiths)

1шт.
