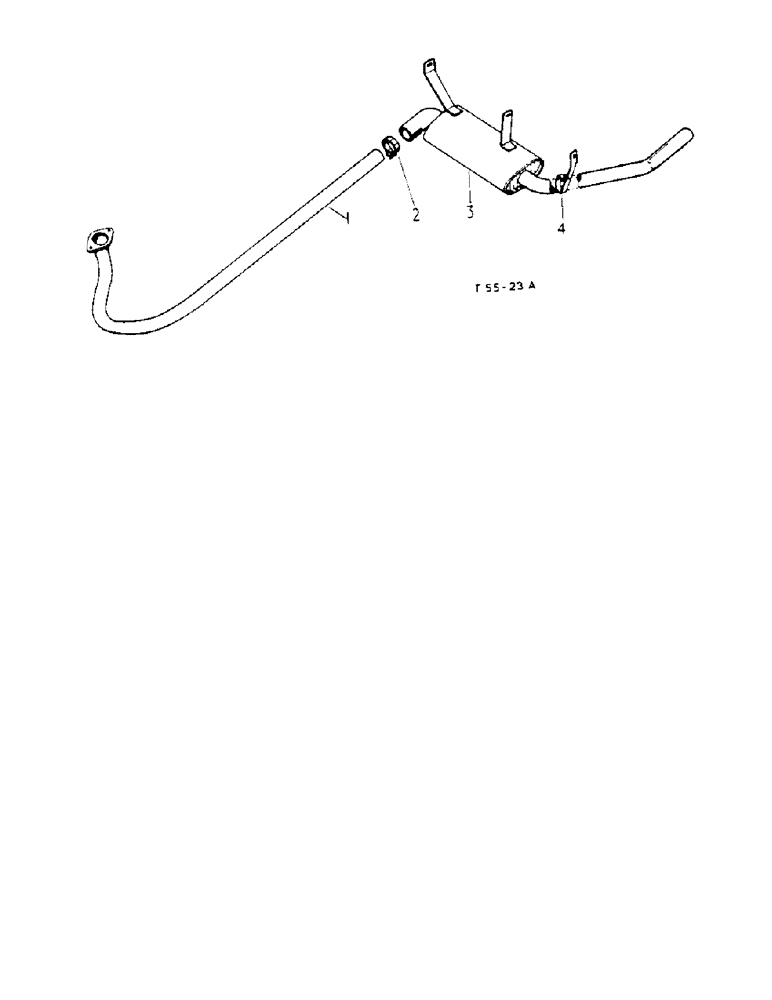

Запчасти Case IH 434 (6-033) - DOWNSWEPT EXHAUST PIPE ATTACHMENT - ATTACHMENTS (88) - ACCESSORIES

3070687R91

ATTACHMENT downswept exhaust pipe, comprising:

1шт.

1

3040044R95

PIPE, cpte., exhaust, Serial Range: manifold-silencer

1шт.

2

704621R1

CLAMP

exhaust pipe

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

3047572R92

MUFFLER

SILENCER, cpte., exhaust, Serial Range: up-434D/22679

1шт.

On orders for SILENCER 3047572R92 furnish SILENCER 3106834R1 w/ PIPE 3044044R95 and CLAMP 3106822R1

1шт.

3

3106834R1

MUFFLER

SILENCER, cpte., exhaust, 434D/22680 up

1шт.

4

3106822R1

CLAMP

muffler outlet, pipe, support, 434D/22680 up

1шт.

4

3070695R1

CLAMP, muffler outlet pipe, support, Serial Range: up-434D/22679

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(For foot plate L.H.) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(For foot plate R.H.) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.
