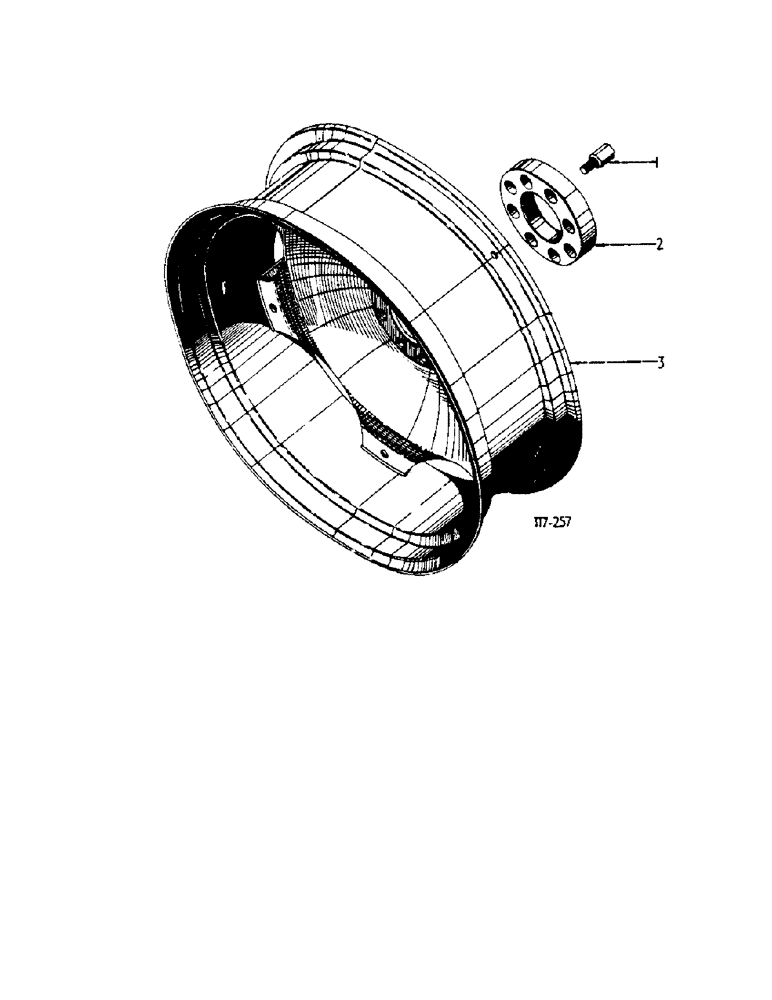

Запчасти Case IH 434 (6-033[1]) - DUAL REAR WHEEL ATTACHMENT - ATTACHMENTS (88) - ACCESSORIES

3069889R91

ATTACHMENT, dual rear wheel, 9 - 28

1шт.

1

707706R1

NUT

wheel spacer, special

16шт.

2

707707R1

SPACER, wheel

2шт.

3

3048867R91

WHEEL ASSY.

WHEEL, cpte., rim and disc, rear (W9 x 28)

4шт.

3

3042291R92

RIM

WHEEL, cpte., rim and disc, rear (W9 x 28), comprising only

4шт.

3073908R1

BOLT

6шт.

3042290R1

DISC

1шт.

121358

YOKE

6шт.

703928R92

RIM

1шт.

703931R1

WASHER

6шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

nib bolt, rear wheel rim

24шт.

3073908R1

BOLT

5/8" UNF (sq-nk)

24шт.

3042290R1

DISC

rear wheel

4шт.

703930R2

NUT

rear wheel rim nib bolt

24шт.

425-110

hex., 5/8" UNF (for sq-nk bolt)

24шт.

703928R92

RIM

cpte., rear wheel (W9 x 28)

1шт.

703931R1

WASHER

rear wheel rim bolt

24шт.
