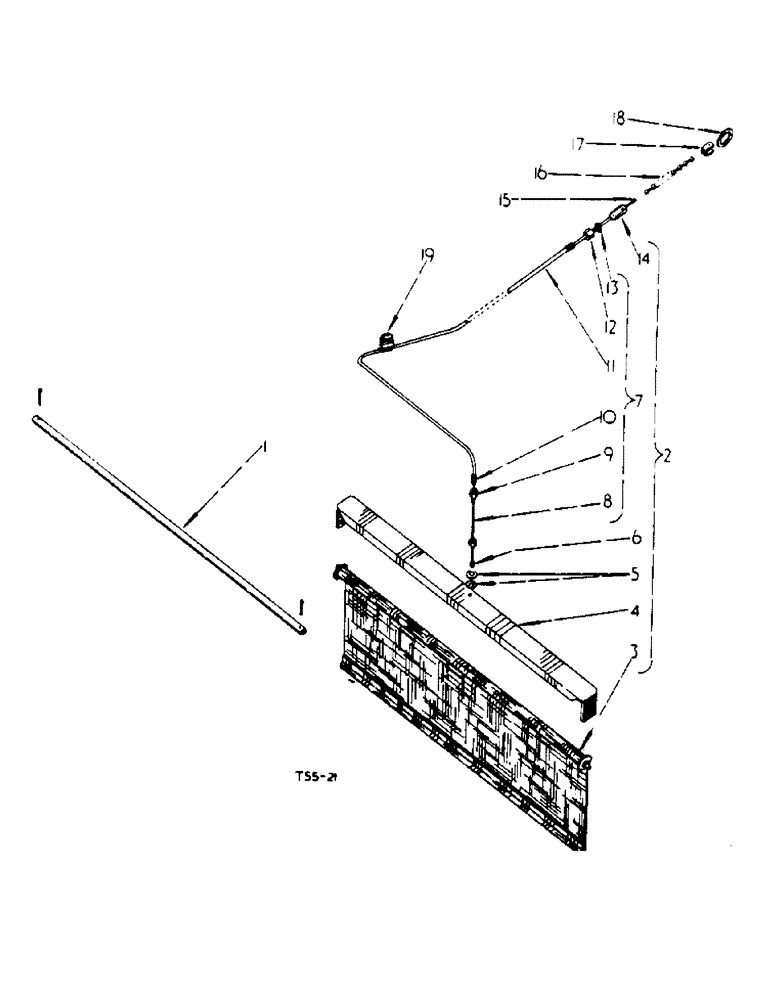

Запчасти Case IH 434 (6-027) - RADIATOR CURTAIN ATTACHMENT - ATTACHMENTS (88) - ACCESSORIES

ATTACHMENT, radiator curtain (Factory application)

1шт.

1

3045259R1

STIFFENER, radiator curtain

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16" x 1/2" cotter

2шт.

2

3045253R91

CURTAIN

cpte., radiator and operating cable, comprising

1шт.

707696R11

CABLE

1шт.

3045254R91

CURTAIN

1шт.

707691R1

CONNECTOR

1шт.

3045255R1

HOLDER

1шт.

707694R1

NIPPLE

1шт.

704763R1

NIPPLE

1шт.

16558R1

WASHER

2шт.

3

3045254R91

CURTAIN

assy., radiator and roller

1шт.

4

3045255R1

HOLDER, radiator curtain

1шт.

5

16558R1

WASHER

17/64" x 5/8" x 18 ga. plain

2шт.

6

707694R1

NIPPLE, cable

1шт.

7

707696R11

CABLE

cpte., operating, radiator curtain, comprising: Ref. 8 - 13

1шт.

8

707696R1

CABLE

radiator operating

1шт.

9

707700R1

STOP, adjustable (7/8" under head)

1шт.

10

707698R1

END, conduit

2шт.

11

707697R1

CONDUIT, operating cable, radiator curtain

1шт.

12

707699R1

STOP, adjustable (7/16" under head)

1шт.

13

707701R1

NUT, lock

2шт.

14

707691R1

CONNECTOR, Serial Range: cable-chain

1шт.

443885

SCREW

set, hdls-sltd., cup-pt., 5/16" - 32 No. 6

2шт.

15

704763R1

NIPPLE, cable

1шт.

16

3070656R91

CHAIN (AG)

CHAIN, ball, radiator curtain

1шт.

17

707688R1

CONNECTOR, ball, Serial Range: chain-ring

1шт.

18

711947R1

RING, radiator chain

1шт.

19

60938D

CLIP, 3/8" cable opt.

1шт.

19

708115R1

PLATE ASSY.

CLIP, 3/8" cable opt.

1шт.

3070657R1

BRACKET, radiator curtain

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT, 1/4" x 3/8" hex-hd.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

704538R93

SPARE PART

ATTACHMENT, heat indicator, Serial Range: up-434D/15900

1шт.

Up to 434NV/785, up to 434HV/505, up to 434P/2003

1шт.

3073790R91

NO LONGER SERVICED

ATTACHMENT, heat indicator, 434D/15901 up, comprising:

1шт.

434NV/786 up, 434HV/506 up, 434P/2004 up

1шт.

3072957R91

INDICATOR

electric heat, attachment

1шт.

3073787R91

TRANSMITTER

UNIT, engine temperature transmitter, heat indicator attachment

1шт.

3073792R91

ATTACHMENT, heat indicator, 434D/15901 up, comprising:

1шт.

434NV/786 up, 434HV/506 up, 434P/2004 up

1шт.

3060350R91

TOOL

INDICATOR, electric heat, optional, attachment

1шт.

3060313R91

TRANSMITTER

UNIT, engine temperature transmitter, optional, heat indicator attachment

1шт.

707355R1

ADAPTER

ADAPTOR, transmitter unit, optional, heat indicator attachment

1шт.
