Запчасти Case IH 434 (8-18) - REAR WHEEL FENDERS - NARROW TREAD (09) - CHASSIS

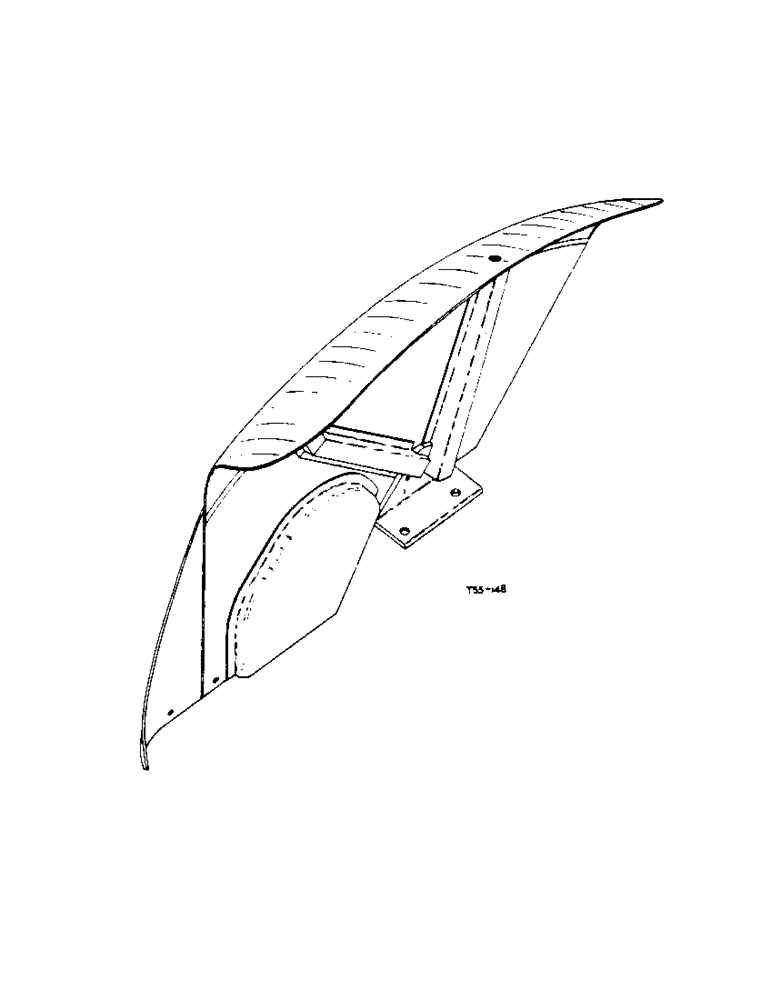

Схема запчастей Case IH 434 - (8-18) - REAR WHEEL FENDERS - NARROW TREAD (09) - CHASSIS

Артикул

Название

Примечание

Количество

3105319R91

FENDER

rear wheel, L.H. cpte., w/two RIVET 104110 & EXTENSION 3105324R1, 434 NT/1001 up

1шт.

3071634R91

FENDER rear wheel, L.H. cpte., w/two RIVET 104110, Serial Range: 434NT/714-1000

1шт.

Order FENDER 3105319R91

1шт.

3068012R91

FENDER rear wheel, L.H. cpte., w/two RIVET 104110 (Illustrated), Serial Range: up-434NT/713

1шт.

Order FENDER 3105319R91

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

hex-hd., 5/8" x 2"

1шт.

271557

DEFLECTOR,Hex, 5/8" - 11 x 1 3/8", Gr 5

hex-hd., 5/8" x 1-3/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

3105320R91

FENDER

rear wheel R.H. cpte., w/two RIVET 104110 & EXTENSION 3105325R1, 434NT/1001 up

1шт.

3071635R91

FENDER rear wheel R.H. cpte., w/two RIVET 104110, Serial Range: 434NT/714-1000

1шт.

Order FENDER 3105320R91

1шт.

3068013R91

FENDER rear wheel R.H. cpte., w/two RIVET 104110, Serial Range: up-434NT/713

1шт.

Order FENDER 3105320R91

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

hex-hd., 5/8" x 2"

1шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

hex-hd., 5/8" x 1-3/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

104110

TUBE

RIVET, small solid btn-hd., 3/8" x 5/8"

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Fenders to footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

102635

NUT,3/8"-16, G5

Fenders to Footplate 3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Fenders to footplate) 3/8"

3шт.

3105324R1

EXTENSION fender L.H. cpte.

1шт.

3105325R1

EXTENSION

fender R.H. cpte.

1шт.

Выбрано товаров: 22
