(8-17[2]) - STEERING WHEEL GUARD AND HOOD ASSEMBLY - NARROW TREAD

Запчасти Case IH 434 (8-17[2]) - STEERING WHEEL GUARD AND HOOD ASSEMBLY - NARROW TREAD (09) - CHASSIS

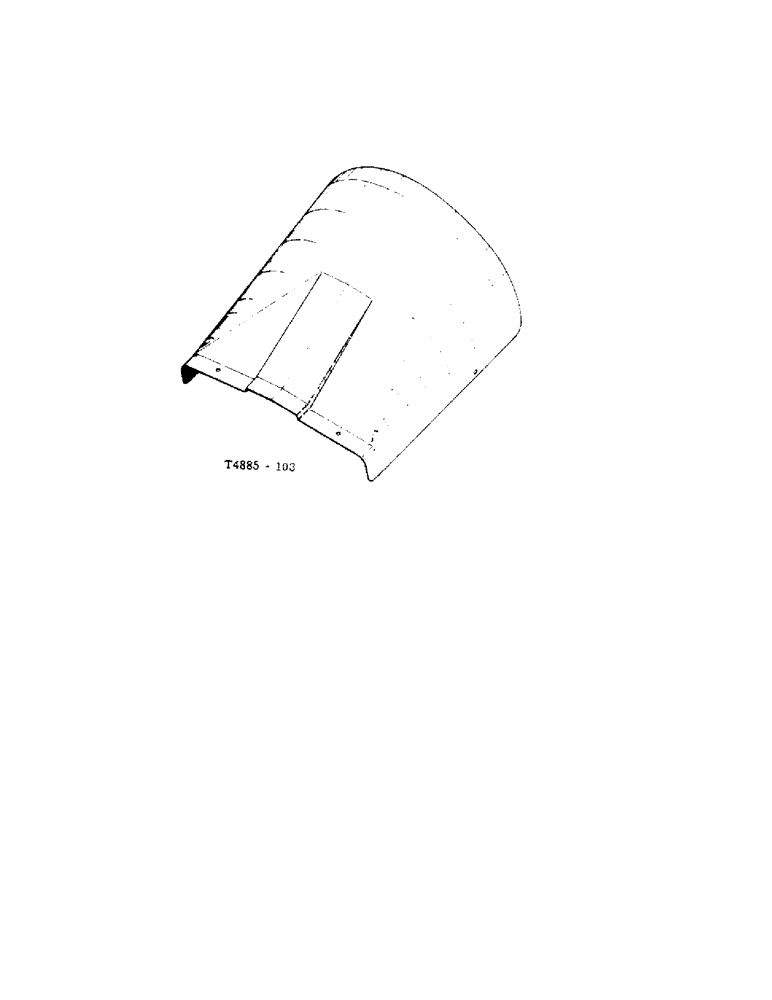

Схема запчастей Case IH 434 - (8-17[2]) - STEERING WHEEL GUARD AND HOOD ASSEMBLY - NARROW TREAD (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3071288R11

GUARD

steering wheel cpte., w/two FASTENERS 3071740R1 and two RING 3070512R1

1шт.

3071740R1

FASTENER

2шт.

3070512R1

RING

retaining

2шт.

3071742R92

HOOD, sheet assy., w/STRIP 3070513R2 six BUFFERS, 3070342R2 and two PAD 3071954R1

1шт.

3071954R1

PAD

rubber

2шт.

3070513R2

STRIP, battery cover stop

1шт.

3070342R2

STRIP

BUFFER, lid retaining

6шт.
