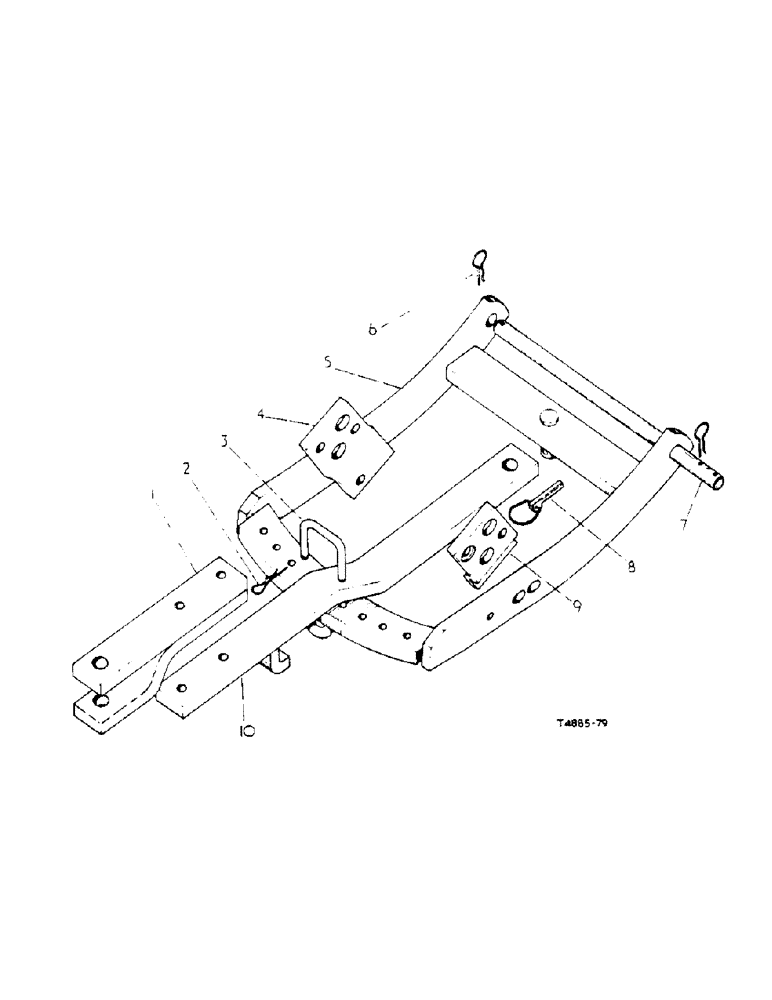

Запчасти Case IH 434 (8-14) - DRAWBAR ATTACHMENT - NARROW TREAD (09) - CHASSIS

3071356R91

ATTACHMENT, drawbar

1шт.

For tractors not fitted with three point linkage but with 545 r.p.m. and 745 r.p.m. P.T.O., adjustable height clevis

1шт.

3071357R91

ATTACHMENT, drawbar

1шт.

For tractors not fitted with three point linkage but with 1,000 r.p.m. P.T.O., adjustable height clevis

1шт.

1

3064333R11

ROLLER

CLEVIS, assy., drawbar

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

5/8" x 4", hex-hd.

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

720631R1

LINCH PIN

PIN, cotter

1шт.

3

3071789R2

PIN

drawbar stop

1шт.

4

3060786R1

PLATE drawbar support L.H.

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

3/4" x 1-3/8", hex-hd.

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

5

3071323R91

FRAME

drawbar cpte.

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4" x 2-1/4", hex-hd.

2шт.

220081

NUT

3/4", hex.

2шт.

6

3067210R1

CLIP

spring

2шт.

7

704058R1

PIN

drawbar frame

1шт.

8

704212R91

COTTER PIN

COTTER, implement cpte.

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

704187R1

LOCKING RING

RING, implement cotter, clips

1шт.

9

3060787R1

PLATE, drawbar support R.H.

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

3/4" x 1-3/8", hex-hd.

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

10

3071322R2

SWINGING DRAWBAR

DRAWBAR swinging adjustable height, cpte., for 3071356R91

1шт.

On orders for 3071322R11 or 3071333R11, furnish 3071322R2 or 3071333R2 with Retainer 3073934R11 and two Bolts 271560

1шт.

10

3071333R2

SWINGING DRAWBAR

DRAWBAR swinging adjustable height, cpte., for 3071357R91

1шт.

On orders for 3071322R11 or 3071333R11, furnish 3071322R2 or 3071333R2 with Retainer 3073934R11 and two Bolts 271560

1шт.
