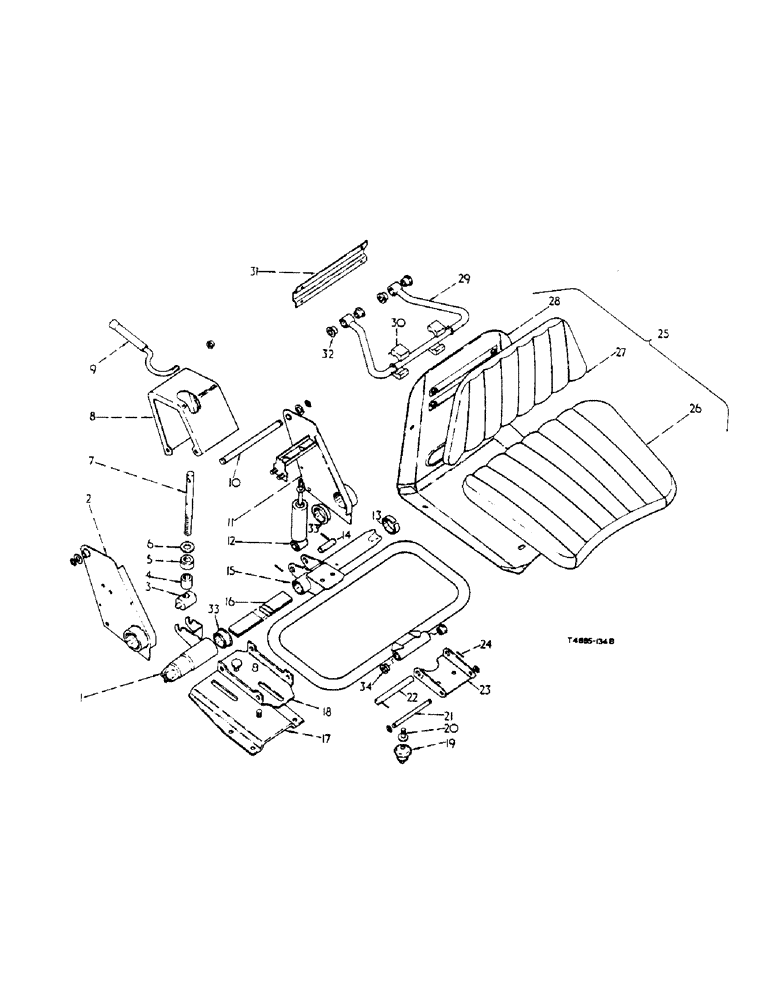

Запчасти Case IH 434 (6-109) - SUSPENSION SEAT - ATTACHMENTS (09) - CHASSIS

3070784R91

SUSPENSION

SEAT, suspension, comprising: Ref. 1 - 34

1шт.

1

3072897R91

TUBE, assy., torque w/BEARING 3109331R1

1шт.

2

3072891R1

PLATE, side, R.H.

1шт.

3072899R1

STUD, push rivet (Plated)

4шт.

3

3072896R1

NUT

adjuster (Plated)

1шт.

4

3074846R1

TUBE

spacer

1шт.

5

3072898R1

BEARING, thrust

1шт.

6

3074845R1

WASHER

(Plated)

1шт.

7

3072894R1

STUD, adjuster

1шт.

3074839R1

PIN, drive

1шт.

8

3072893R1

COVER

1шт.

103721

PIN, roll (Plated)

1шт.

9

3072900R91

HANDLE, assy.

1шт.

3074851R1

NUT

acom 5/16" (Plated)

1шт.

10

3074840R1

SHAFT

1шт.

3074841R1

RING, snap

2шт.

3074849R1

WASHER (plated)

2шт.

11

3072892R91

PLATE ASSY.

PLATE, assy., side L.H. w/BEARING 3109331R1

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16"

2шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

3074833R91

DAMPER

assy., comprising:

1шт.

3074853R1

NUT, stiff

1шт.

3074852R1

WASHER

steel

1шт.

3074854R1

WASHER, rubber

1шт.

13

3074837R1

SPACER

1шт.

14

3074834R1

PIN

1шт.

15

3072890R91

FRAME, assy., seat w/two BEARING 3109332R1

1шт.

16

3074836R91

BAR, torsion

3шт.

17

3072888R91

PLATE, assy., mounting

1шт.

NLS

NO LONGER SERVICED

7/16"-14 (Plated)

2шт.

446211

WASHER, 7/16" (Plated)

2шт.

18

3072889R91

BASE, assy.

1шт.

3074844R1

BOLT, hex-hd., 3/8" x 1" (Plated)

4шт.

102635

NUT,3/8"-16, G5

4шт.

110730

LOCK WASHER

WASHER, lock, 3/8" (Plated)

4шт.

19

3072895R1

BUMPER

1шт.

20

3074831R1

STUD

bumper

1шт.

21

3074848R1

SHAFT (Plated)

1шт.

3074842R1

RING, snap

1шт.

22

3074847R1

PIN

1шт.

23

3074832R1

HINGE, front

1шт.

24

3074835R1

PIN, drive

4шт.

25

3074850R91

SEAT

assy., comprising: Ref. 26 - 28

1шт.

3074857R91

CUSHION

1шт.

3074856R91

CUSHION

1шт.

3074855R91

PAN

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

7шт.

26

3074856R91

CUSHION, assy., seat

1шт.

27

3074857R91

CUSHION, assy., back

1шт.

28

3074855R91

PAN, assy., seat

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4" x 1/2" pan-hd.

7шт.

29

3074830R91

ARM, assy., stabilizer w/four BEARING 3109333R1

1шт.

30

3074843R1

BEARING, half

4шт.

31

3074838R1

CAP

1шт.

21191R1

BOLT,Hex, 5/16"-18 x 5/8", G8, Full Thd

hex-hd., 5/16" x 5/8"

4шт.

32

3109333R1

BEARING

4шт.

33

3109332R1

BEARING

2шт.

34

3109331R1

FLANGED BEARING

BEARING

2шт.
