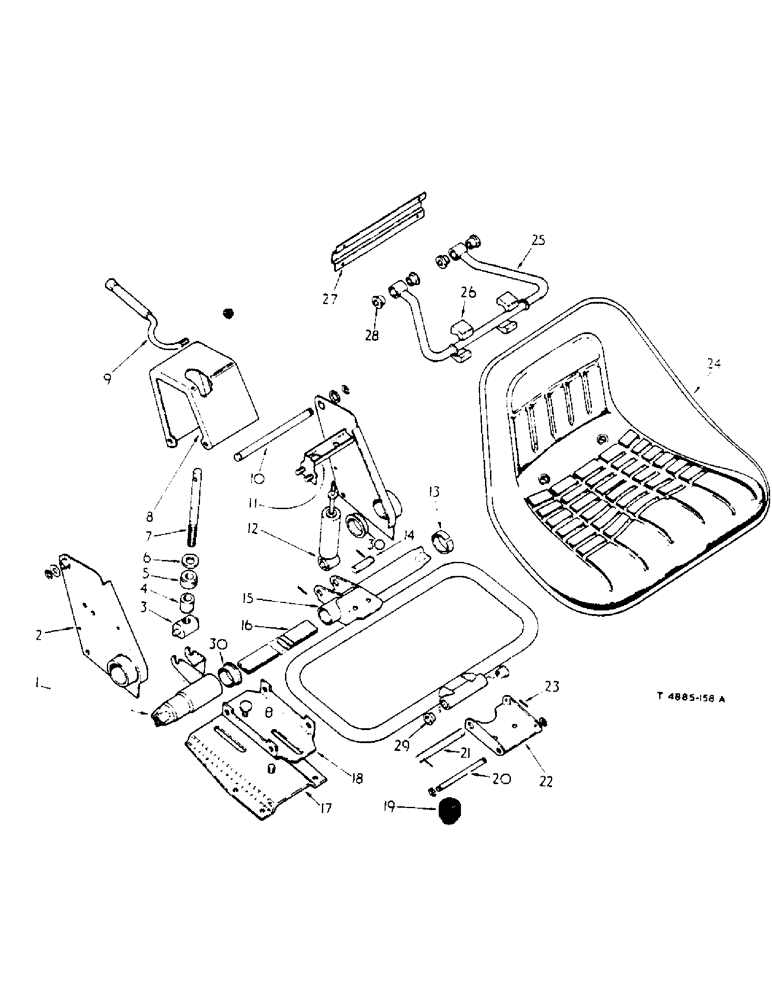

Запчасти Case IH 434 (6-108) - SUSPENSION SEAT WITH BALTIC PAN - ATTACHMENTS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
3070784R92
SUSPENSION
SEAT suspension, comprising: Ref. 1 - 30
1шт.
1
3072897R91
TUBE, assy., torque w/BEARING 3109331R1
1шт.
2
3072891R1
PLATE, side, R.H.
1шт.
3072899R1
STUD, push rivet (Plated)
4шт.
3
3072896R1
NUT
adjuster (Plated)
1шт.
4
3074846R1
TUBE
spacer
1шт.
5
3072898R91
BEARING, thrust
1шт.
6
3074845R1
WASHER
(Plated)
1шт.
7
3072894R1
STUD, adjuster
1шт.
3074839R1
PIN, drive
1шт.
8
3072893R1
COVER
1шт.
103721
PIN, roll (Plated)
1шт.
9
3072900R91
HANDLE, assy.
1шт.
3074851R1
NUT
acom 5/16" (Plated)
1шт.
10
3074840R1
SHAFT
1шт.
3074841R1
RING, snap
2шт.
3074849R1
WASHER, (Plated)
2шт.
11
3072892R91
PLATE ASSY.
PLATE, assy., side L.H. w/BEARING 3109331R
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16"
2шт.
112723
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
12
3074833R91
DAMPER
assy., comprising:
1шт.
3074853R1
NUT, stiff
1шт.
3074852R1
WASHER
steel
1шт.
3074854R1
WASHER, rubber
1шт.
13
3074837R1
SPACER
1шт.
14
3074834R1
PIN
1шт.
15
3072890R91
FRAME, assy., seat w/two BEARING 3109332R1
1шт.
16
3074836R1
BAR
torsion
3шт.
17
3072888R91
PLATE, assy., mounting
1шт.
271500
SOCKET
7/16"-14 (Plated)
2шт.
446211
WASHER, 7/16" (Plated)
2шт.
18
3072889R91
BASE, assy.
1шт.
3074994R1
BOLT, hex-hd., 3/8" x 1"
4шт.
102635
NUT,3/8"-16, G5
4шт.
110730
LOCK WASHER
WASHER, lock, 3/8" (Plated)
4шт.
19
3074989R1
STOP
bump
1шт.
20
3074848R1
SHAFT, (Plated)
1шт.
3074842R1
RING, snap
2шт.
21
3074847R1
PIN
1шт.
22
3074832R1
HINGE, front
1шт.
23
3074835R1
PIN, drive
4шт.
24
3074988R91
SEAT
assy., Baltic Pan w/four BEARING 3109333R1
1шт.
25
3074987R91
ARM, assy., stabilizer
1шт.
26
3074843R1
BEARING, half
4шт.
27
3074838R1
CAP
1шт.
21191R1
BOLT,Hex, 5/16"-18 x 5/8", G8, Full Thd
hex-hd., 5/16" x 3/8"
4шт.
28
3109333R1
BEARING
4шт.
29
3109332R1
BEARING
2шт.
30
3109331R1
FLANGED BEARING
BEARING
2шт.
Выбрано товаров: 49
