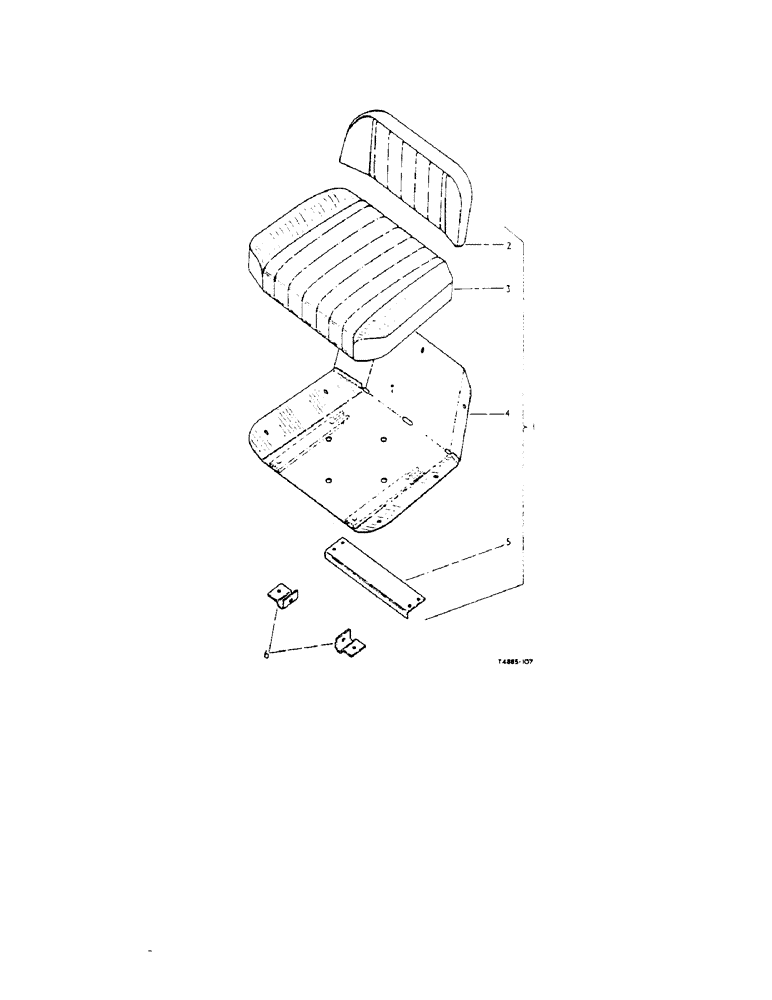

Запчасти Case IH 434 (6-105[1]) - BOSTROM SEAT ATTACHMENT - ATTACHMENTS (09) - CHASSIS

3064747R91

ATTACHMENT deluxe seat, comprising:

1шт.

1

3064746R91

SEAT deluxe cpte., comprising:

1шт.

2

3068213R91

ARMREST

REST, back assy.

1шт.

3

3068212R91

CUSHION

SEAT, plate assy.

1шт.

4

3068211R91

SEAT

PAN, seat assy.

1шт.

5

3071396R1

ANGLE

rear adjuster

1шт.

6

3067850R1

BRACKET, seat

2шт.

3067849R1

RAIL, slide (RH)

1шт.

3067848R1

RAIL, slide (LH)

1шт.

3070942R1

SPACER

4шт.

120376

NUT,5/16"-18, G5

10шт.

155338

SCREW, rd-hd., mach., 1/4" x 1/2"

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

hex-hd., 1/2" x 1-3/4"

2шт.

3065389R1

NUT, lock, Philidas

2шт.

NLS

NO LONGER SERVICED

plain, 17/32" x 1-1/16" x .095"

2шт.
