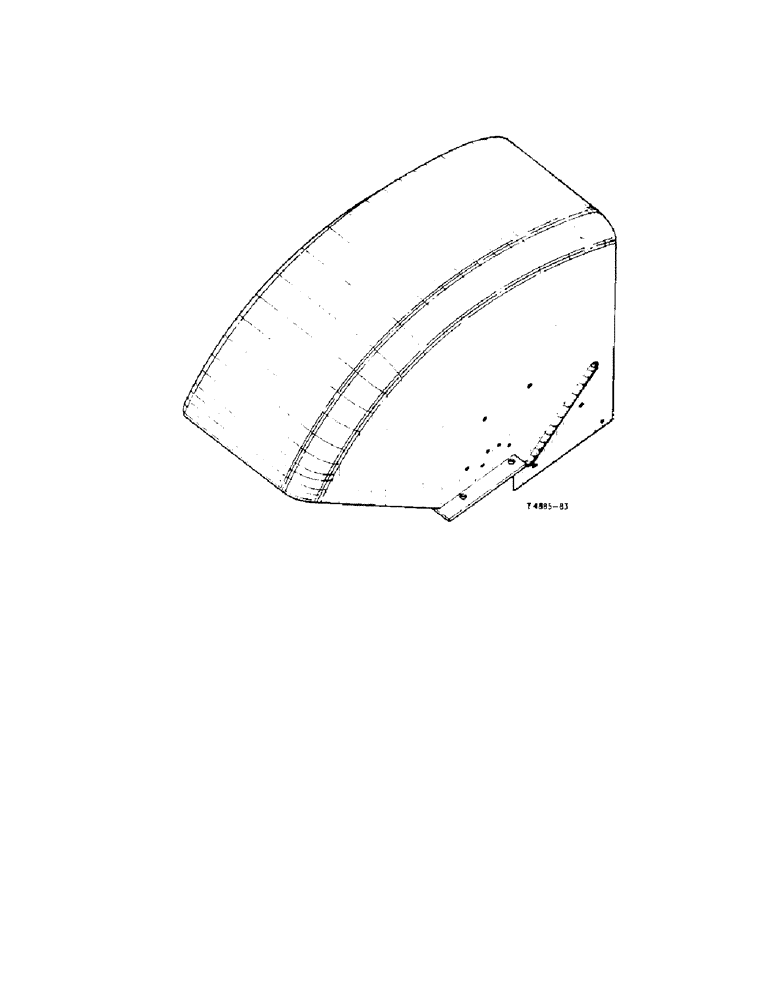

Запчасти Case IH 434 (6-104[1]) - INDUSTRIAL REAR FENDER ATTACHMENT, 3070965R92, 3071365R92 - ATTACHMENTS (09) - CHASSIS

3070965R92

ATTACHMENT, for Industrial axle (Domestic)

1шт.

3071365R92

ATTACHMENT, for Agricultural axle (Domestic)

1шт.

3070762R91

FENDER

assy., cpte., rear L.H.

1шт.

434D/20043 and 434P/2404 up (Agricultural Axles)

1шт.

434D/19033, 434P/2303 and 434HV/515 up (Industrial Axles)

1шт.

3071360R91

FENDER, assy., cpte., rear L.H.

1шт.

Up to 434D/2043 and 434P/2404 (Agricultural Axles)

1шт.

Up to 434D/19032, 434P/2302 and 434HV/515 up (Industrial Axles)

1шт.

751754R2

BOLT, "U", 3/8" UNF, for 3071365R92

1шт.

17522R1

BOLT, hex-hd., 7/16" x 2"

2шт.

179891

SHAFT

hex-hd., 1/2" x 2-1/2", for 3070965R92

2шт.

103026

NUT,3/8"-24, G5

For 3071365R92 3/8"-24, G5

2шт.

102637

NUT,1/2"-13, G5

For 3070965R92 1/2"-13, G5

2шт.

495-21044

WASHER,3/8"

(flat, 7/16" x 1"), for 3071365R92 3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , For 3071365R92 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , For 3070965R92 1/2"

2шт.

Q5035

WASHER

thick, 17/32" x 1" x .0598", for 3070965R92

2шт.

3070763R91

FENDER, assy., cpte., rear R.H.

1шт.

434D/20043 and 434P/2404 up (Agricultural Axles)

1шт.

434D/19033, 434P/2303 and 434HV/515 up (Industrial Axles)

1шт.

3071361R91

FENDER, assy., cpte., rear R.H.

1шт.

Up to 434D/2043 and 434P/2404 (Agricultural Axles)

1шт.

Up to 434D/19032, 434P/2302 and 434HV/515 up (Industrial Axles)

1шт.

751784R2

BOLT, "U", 3/8" UNF, for 3071365R92

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex-hd., 1/2" x 2-1/2", for 3070965R92

2шт.

103026

NUT,3/8"-24, G5

For 3071365R92 3/8"-24, G5

2шт.

102637

NUT,1/2"-13, G5

For 3070965R92 1/2"-13, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , For 3071365R92 3/8"

2шт.

495-21044

WASHER,3/8"

(flat, 7/16" x 1"), for 3071365R92 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , For 3070965R92 1/2"

2шт.

Q5035

WASHER

thick 17/32" x 1" x .0598", for 3070965R92

2шт.

3074158R1

PIECE, packing, for 3071365R92

2шт.

434D/20043 and 434P/2404 up (Agricultural Axles)

1шт.

434D/19033, 434P/2303 and 434HV/515 up (Industrial Axles)

1шт.

751785R1

PIECE, packing, for 3071365R92

2шт.

Up to 434D/2043 and 434P/2404 (Agricultural Axles)

1шт.

Up to 434D/19032, 434P/2302 and 434HV/515 up (Industrial Axles)

1шт.

751786R1

CENTERING RING

PIECE packing, for 3071365R92

1шт.

751787R1

PIECE packing, for 3071365R92

1шт.

751788R1

PIECE packing, for 3071365R92

1шт.
