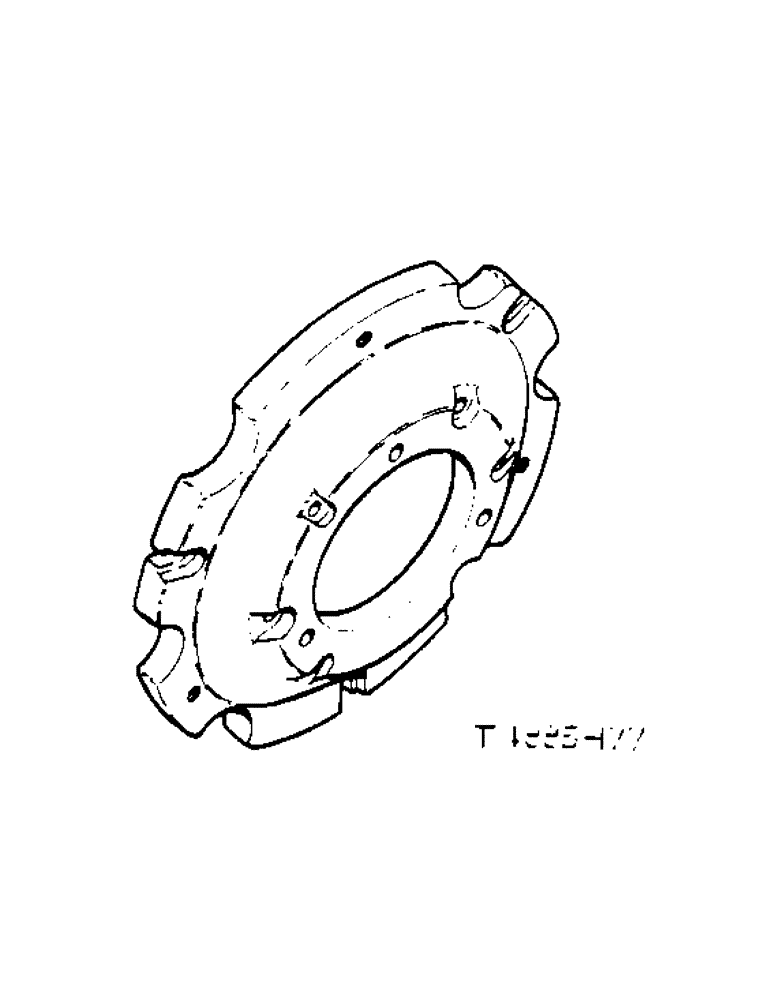

Запчасти Case IH 434 (6-030) - WEIGHTS, REAR WHEEL - ATTACHMENTS (09) - CHASSIS

3069683R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049758R92

1шт.

3069692R1

WEIGHT

rear wheel

4шт.

3069693R1

BOLT

(6-3/4" long) rear wheel weight

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

3069684R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049758R92

1шт.

3069692R1

WEIGHT

rear wheel

6шт.

3069693R1

BOLT

rear wheel weight

6шт.

102639

NUT,5/8"-11, G5

12шт.

102325

LOCK WASHER

WASHER, 5/8" lock

12шт.

3069685R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049758R92

1шт.

3069692R1

WEIGHT

rear wheel

8шт.

3069693R1

BOLT

rear wheel weight

6шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8" x 2-1/2" hex-hd.

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

3069686R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049758R92

1шт.

3069692R1

WEIGHT

rear wheel

10шт.

3069693R1

BOLT

rear wheel weight

6шт.

NLS

NO LONGER SERVICED

5/8" x 2-1/4" hex-hd.

12шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

3069687R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049217R93

1шт.

3069692R1

WEIGHT

rear wheel

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/6" x 3-1/4" hex-hd., Course Threads

6шт.

102639

NUT,5/8"-11, G5

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

3069688R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049217R93

1шт.

3069692R1

WEIGHT

rear wheel

4шт.

3069695R1

BOLT

rear wheel weight (6-1/2"long)

6шт.

102639

NUT,5/8"-11, G5

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074

12шт.

3069689R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049217R93

1шт.

3069692R1

WEIGHT

rear wheel

6шт.

3069695R1

BOLT

rear wheel weight

6шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074

18шт.

3069690R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049217R93

1шт.

3069692R1

WEIGHT

rear wheel

8шт.

3069695R1

BOLT

rear wheel weight

6шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8" x 2-1/2" hex-hd.

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074

24шт.

3069691R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049217R93

1шт.

3069692R1

WEIGHT

rear wheel

10шт.

3069695R1

BOLT

rear wheel weight

6шт.

NLS

NO LONGER SERVICED

5/8" x 2-1/2" hex-hd.

12шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074

30шт.

3069683R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049758R91

1шт.

3069692R1

WEIGHT

rear wheel

4шт.

3069693R1

BOLT

(6-3/4" long) rear wheel weight

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

3069684R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049758R91

1шт.

3069692R1

WEIGHT

rear wheel

6шт.

3069693R1

BOLT

rear wheel weight

6шт.

102639

NUT,5/8"-11, G5

12шт.

102325

LOCK WASHER

WASHER, 5/8" lock

12шт.

3069685R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049758R91

1шт.

3069692R1

WEIGHT

rear wheel

8шт.

3069693R1

BOLT

rear wheel weight

6шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8" x 2-1/2" hex-hd.

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

3069686R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use w/ WHEELS 3049758R91

1шт.

3069692R1

WEIGHT

rear wheel

10шт.

3069693R1

BOLT

rear wheel weight

6шт.

NLS

NO LONGER SERVICED

5/8" x 2-1/4" hex-hd.

12шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.
