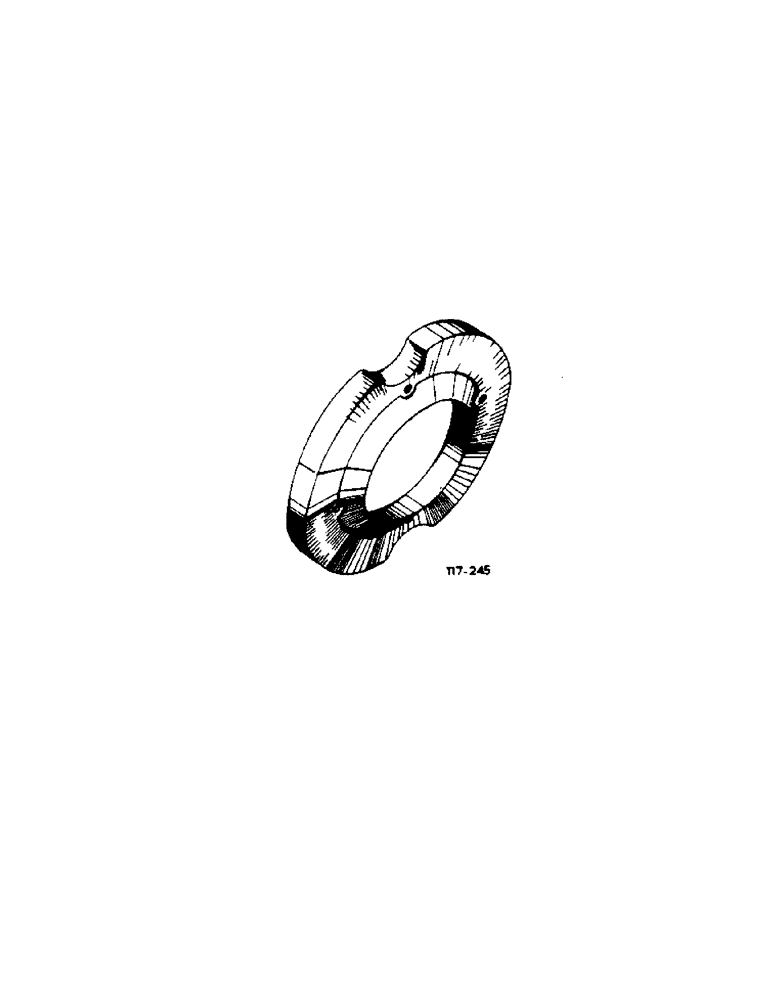

Запчасти Case IH 434 (6-029) - FRONT WHEEL WEIGHTS ATTACHMENT, 5.50 X 16 - ATTACHMENTS (09) - CHASSIS

WEIGHTS, front wheel (Single set) (4.50 x 16) (Not serviced) comprising:

1шт.

705985R1

SPACER

WEIGHT, front wheel ( 45 lbs. approx.)

2шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

1/2" x 2-1/4 hex-hd., for 19" wheels

8шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

WEIGHTS, front wheel ( 2nd set) (4.50 x 16) (Not serviced) comprising:

1шт.

705985R1

SPACER

WEIGHT, front wheel ( 45 lbs. approx.)

2шт.

17699R1

BOLT,Hex, 1/2" - 13 x 3 3/4"

1/2" x 3-3/4", hex-hd.

8шт.

WEIGHTS, front wheel (double set) (4.50 x 16) (Not serviced) comprising:

1шт.

705985R1

SPACER

WEIGHT, front wheel

4шт.

17699R1

BOLT,Hex, 1/2" - 13 x 3 3/4"

hex-hd., 1/2" x 3-3/4"

8шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.
