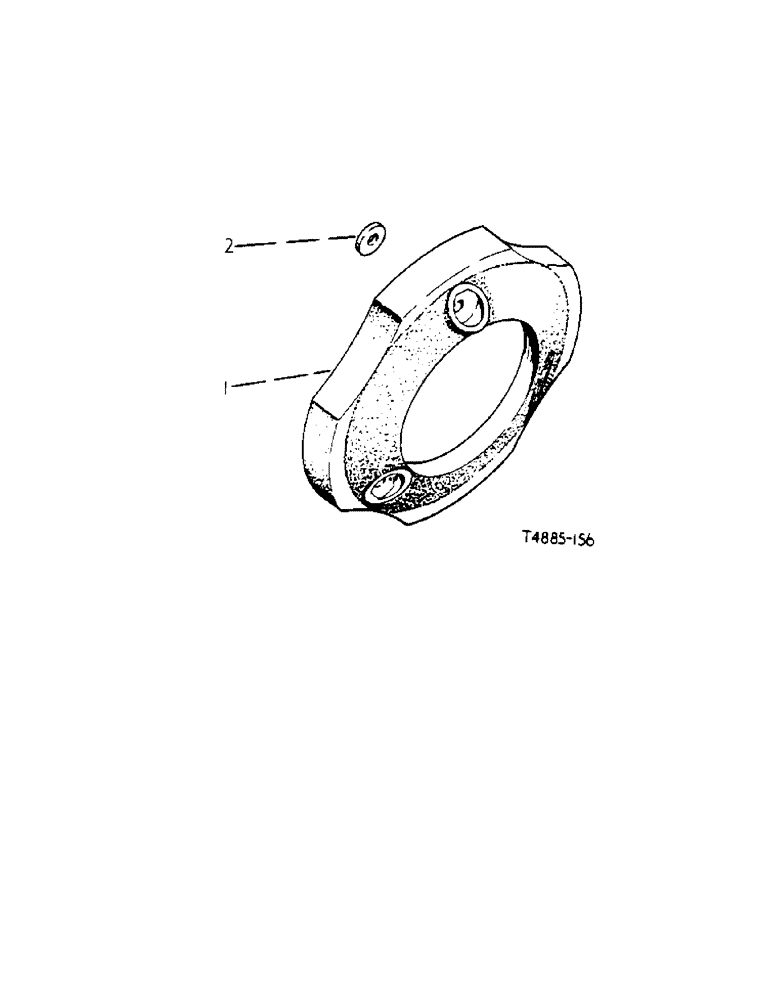

Запчасти Case IH 434 (6-029[1]) - FRONT WHEEL WEIGHTS ATTACHMENT - ATTACHMENTS (09) - CHASSIS

3069509R91

WEIGHT, double set, for 19" wheels, comprising:

1шт.

1

704155R1

WEIGHT, front wheel

4шт.

17784R1

BOLT,Hex, 5/8" - 11 x 4 5/8", Gr 2

5/8" x 4-7/8" hex-hd.

6шт.

102639

NUT,5/8"-11, G5

6шт.

704156R1

WASHER

taper (see ref. 2)

6шт.

3069510R91

WEIGHT, treble set, for 19" wheels, comprising:

1шт.

1

704155R1

WEIGHT, front wheel

6шт.

17884R1

BOLT, 5/8" x 6" hex-hd.

6шт.

102639

NUT,5/8"-11, G5

6шт.

704156R1

WASHER

taper (see ref. 2)

6шт.

3069511R91

WEIGHT, field conversion, for 19" wheels, comprising:

1шт.

1

704155R1

WEIGHT, front wheel

4шт.

17884R1

BOLT, 5/8" x 6" hex-hd.

6шт.

2

704156R1

WASHER

taper

6шт.

704152R91

WEIGHTS, front wheel (first set) comprising:

1шт.

1

704155R1

WEIGHT, front wheel

2шт.

17617

BOLT, 5/8" x 2-7/8" mach., hex-hd.

6шт.

102639

NUT,5/8"-11, G5

6шт.

704153R91

WEIGHTS, front wheel (second set) comprising:

1шт.

1

704155R1

WEIGHT, front wheel

2шт.

17784R1

BOLT,Hex, 5/8" - 11 x 4 5/8", Gr 2

5/8" x 4-5/8" mach. hex-hd.

6шт.

704154R91

WEIGHTS, front wheel (third set) comprising:

1шт.

1

704155R1

WEIGHT, front wheel

2шт.

17884R1

BOLT, 5/8" x 6" mach., hex-hd.

6шт.

2

704156R1

WASHER

taper

6шт.
