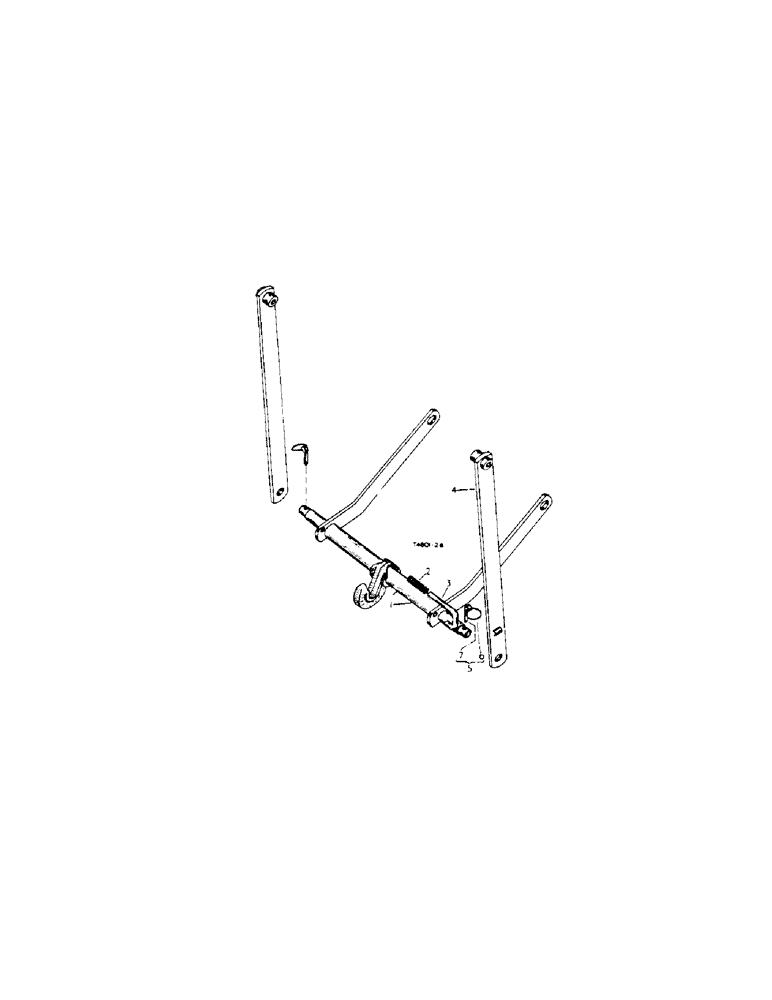

Запчасти Case IH 434 (6-006) - AUTOMATIC HITCH ATTACHMENT, 3069524R91 - ATTACHMENTS (09) - CHASSIS

3069524R91

LINKAGE

ATTACHMENT automatic hitch

1шт.

Can only be used when tractor is fitted with hydraulic lift attachment and drawbar attachment

1шт.

1

704278R31

NO LONGER SERVICED

HOOK, cpte., trailer

1шт.

2

704282R2

SPRING

automatic hitch retainer

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

575808R1

WASHER

19/32" x 1" x 16 ga.

1шт.

3

704281R2

PIN

automatic hitch, retainer

1шт.

4

704276R21

LINK

cpte., automatic hitch lift

2шт.

5

704212R91

COTTER PIN

COTTER, w/COTTER 700531R1 & RING 704187R1 cpte., implement

2шт.

6

704187R1

LOCKING RING

RING, implement cotter, dip

2шт.

7

700531R1

NO LONGER SERVICED

COTTER, implement

2шт.

3074662R1

HOLDER, cpte., lynch pin

2шт.
