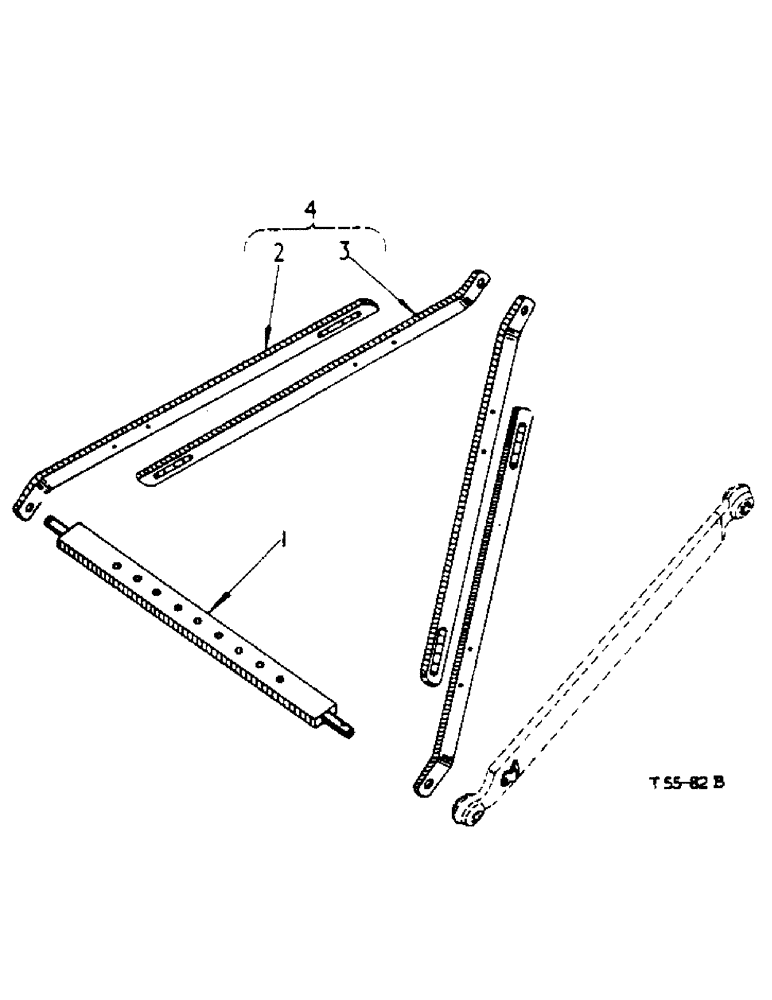

Запчасти Case IH 434 (6-005) - THREE POINT LINKAGE DRAWBAR ATTACHMENT, 751763R91 - ATTACHMENTS (09) - CHASSIS

751763R91

ATTACHMENT, three point linkage drawbar

1шт.

Used only with Hydraulic Lift Attachment (Mechanical Depth Control)

1шт.

1

751764R1

BAR

DRAWBAR

1шт.

2

751765R1

STRUT

lower half

2шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

1/2" x 1-3/8" hex-hd.

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

plain, 17/32" x 1-1/16" x .095

4шт.

3

751766R1

STRUT

upper half

1шт.

4

751769R91

STRUT

cpte., L.H., comprising

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

2шт.

102637

NUT,1/2"-13, G5

2шт.

751766R1

STRUT

1шт.

751765R1

STRUT

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

704187R1

LOCKING RING

RING, implement cotter, clip

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

704212R91

COTTER PIN

COTTER, w/COTTER 700531R1 and RING 704187R1 cpte., implement

1шт.

751768R1

SPACER, drawbar strut

1шт.
