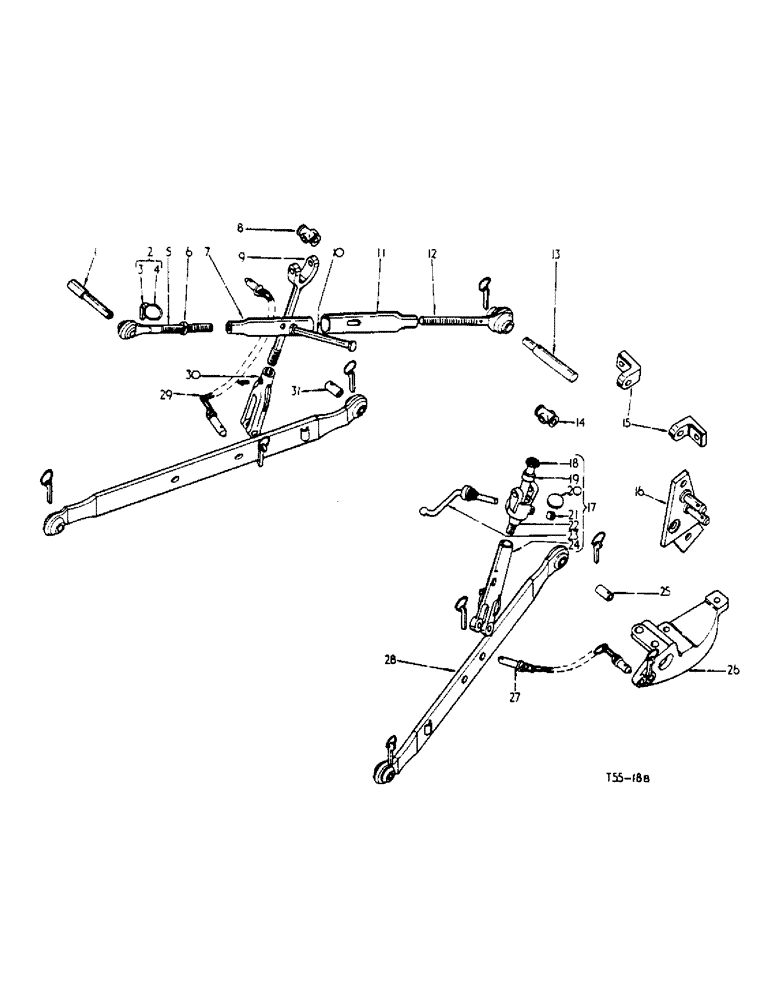

Запчасти Case IH 434 (6-002) - THREE POINT LINKAGE ATTACHMENT - ATTACHMENTS (09) - CHASSIS

3070832R91

ATTACHMENT, three point linkage (Illustrated) (High Hitch Points)

1шт.

Used only with Hydraulic Lift Attachment (Mechanical Depth Control)

1шт.

3070833R91

ATTACHMENT, three point linkage (Low Hitch Points)

1шт.

Used only with Hydraulic Lift Attachment (Mechanical Depth Control)

1шт.

704176R94

LINK, cpte., top telescoping, comprising

1шт.

3074763R1

RETAINER

CIRCLIP

2шт.

704178R21

BOLT

EYEBOLT

1шт.

704177R21

BOLT

EYEBOLT

1шт.

3074660R11

HANDLE

1шт.

704179R1

LINK

1шт.

704180R1

LINK

1шт.

426899

NUT,Jam, 1"-8, G5

1шт.

3074756R1

PIN

1шт.

3074755R1

PIN

1шт.

1

3074755R1

PIN

top link (cat. 1)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

2

704212R91

COTTER PIN

COTTER, w/COTTER 700531R1 & RING 704187R1 assy., implement

10шт.

3

700531R1

NO LONGER SERVICED

COTTER, implement

10шт.

4

704187R1

LOCKING RING

RING, clip, implement cotter

10шт.

5

704178R21

BOLT

EYEBOLT, w/BALL assy., top link (cat. 1)

1шт.

6

426899

NUT,Jam, 1"-8, G5

1" jam (cad-pltd.)

1шт.

7

704180R1

LINK

top, telescoping (half) (cat. 1 end)

1шт.

8

704207R3

PIVOT

SWITCH, lift rod

1шт.

9

704541R3

ROD

lift, upper half

1шт.

3044309R1

PIN

std-hd., special 5/8" x 3-3/8"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATOR, lift rod

1шт.

10

3074660R11

HANDLE

cpte.

1шт.

11

704179R1

LINK

top, telescoping (half) (cat. 2 end)

1шт.

12

704177R21

BOLT

EYEBOLT, w/BALL assy., top link (cat. 2)

1шт.

13

3074756R1

PIN

top link (cat. 2)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

14

704207R3

PIVOT

SWITCH, lift rod

1шт.

15

704779R3

BRACKET

check chain, inner

2шт.

16

3064335R91

PLATE, cpte., support, drawbar R.H., (Illustrated), for 3070832R91

1шт.

16

3064336R91

PLATE, cpte., support, drawbar L.H., for 3070832R91

1шт.

NLS

NO LONGER SERVICED

CAPSCREW, hex-hd., 3/4" x 1-3/8"

4шт.

Not required when drawbar attachment fitted.

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

4шт.

Not required when drawbar attachment fitted.

1шт.

16

704052R12

PLATE

cpte., support, drawbar R.H. Used on 706137R93 Attachment, for 3070833R91

1шт.

16

704051R12

PLATE

cpte., support, drawbar L.H. Used on 706137R93 Attachment, for 3070833R91

1шт.

16

3060786R11

PLATE

cpte., support, drawbar R.H., for 3070833R91

1шт.

16

3060787R11

PLATE

cpte., support, drawbar L.H., for 3070833R91

1шт.

17

704196R96

ROD

cpte., lift, leveling, comprising: Ref. 18 - 24

1шт.

18

704198R1

ROD

leveling

1шт.

19

704197R91

BALL BEARING

BEARING, ball, thrust, 20 mm opt.

1шт.

19

704201R91

BALL BEARING

BEARING, ball, thrust, 20 mm opt.

1шт.

19

704202R91

BALL BEARING

BEARING, ball, thrust, 20 mm opt.

1шт.

20

172580

PLUG,Exp, 1 7/8"

expansion, 1-7/8" O.D.

1шт.

21

704203R1

COLLAR

leveling control crank

1шт.

142507

GROOVED PIN

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

22

704195R4

BOX

leveling

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATOR, 7/16"

2шт.

23

704200R32

CRANK

leveling control

1шт.

24

704205R3

NUT

leveling rod

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

LUBRICATOR, 7/16"

1шт.

25

704194R2

BUSHING

BUSH, lower link

1шт.

26

707815R1

BRACKET, check chain, R.H. (Illustrated), for 3070832R91

1шт.

707814R1

BRACKET, check chain L.H., for 3070832R91

1шт.

704214R2

BRACKET

check chain R.H., for 3070833R91

1шт.

704213R2

BRACKET, check chain L.H., for 3070833R91

1шт.

17956R1

BOLT,Hex, 5/8" - 11 x 7 3/4"

hex-hd., 5/8" x 7-3/4"

2шт.

3070973R1

BOLT

rect-hd., 5/8" x 8-1/2"

1шт.

103630

NUT, hex.

3шт.

27

3063509R91

CHAIN (AG)

CHAIN, assy., check

1шт.

28

704188R97

LINK

w/two HOLDER 3074662R1 lower

2шт.

29

3063509R91

CHAIN (AG)

CHAIN, assy., check

1шт.

30

704542R5

ROD

lift, lower half

1шт.

31

704194R2

BUSHING

BUSH, lower link

1шт.

709307R92

BOLT

EYEBOLT, assy., top link (cat. 1), comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704178R21

BOLT

EYEBOLT

1шт.

704185R1

HOOK

1шт.

3074755R1

PIN

1шт.

218445

NUT,Jam, 1"-8, G5

1шт.

709308R92

BOLT

EYEBOLT, assy., top link (cat. 2), comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704177R21

BOLT

EYEBOLT

1шт.

704185R1

HOOK

1шт.

3074756R1

PIN

1шт.

704190R51

END

cpte., lower link (cat. 1)

1шт.

704191R51

END

cpte., lower link (cat. 2)

1шт.

3074662R1

HOLDER, lynch pin

4шт.
