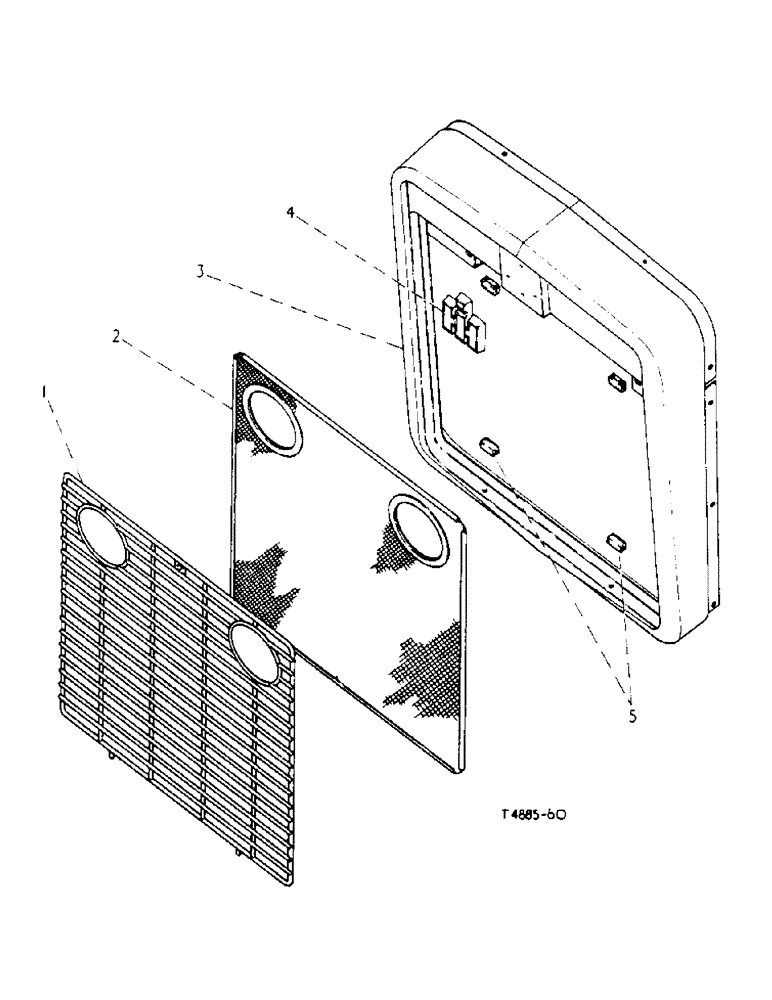

Запчасти Case IH 434 (4-35) - RADIATOR GRILLE AND FRAME, PETROL - CHASSIS (09) - CHASSIS

1

3071091R11

GRILLE

cpte., radiator

1шт.

3070511R1

FASTENER

(Dzus)

1шт.

3070512R1

RING

retaining

1шт.

2

3071092R11

RADIATOR GRILLE

MESH, cpte., radiator grille

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

3

3070325R91

FRAME

cpte., radiator grille

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

3044095R1

RIVET, pop

2шт.

3044094R1

SPRING

1шт.

3064777R1

WASHER, plain

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

2751846R1

EMBLEM CASE/IH

PLATE, I.H. monogram

1шт.

193238

KIT

No. 10 x 5/16" pan-hd., tap.

4шт.

5

3070509R1

PAD, rubber

4шт.

3068210R92

WHEEL ASSY

RIM and DISC, rear wheel (W13-28), comprising all parts listed below, Petrol

2шт.

703927R1

NO LONGER SERVICED

DISC, rear wheel, Petrol

1шт.

3070084R92

RIM

rear wheel cpte., Petrol

1шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

rear wheel rim, Petrol

6шт.

3075908R1

BOLT, hex., 5/8" UNF (sq-nk.), rear wheel, Petrol

6шт.

703931R1

WASHER

rear wheel rim bolt, Petrol

6шт.

703930R2

NUT

rear wheel rim bolt, Petrol

6шт.

425-110

hex., 5/8" UNF (for sq-nk bolt), rear wheel, Petrol

6шт.
