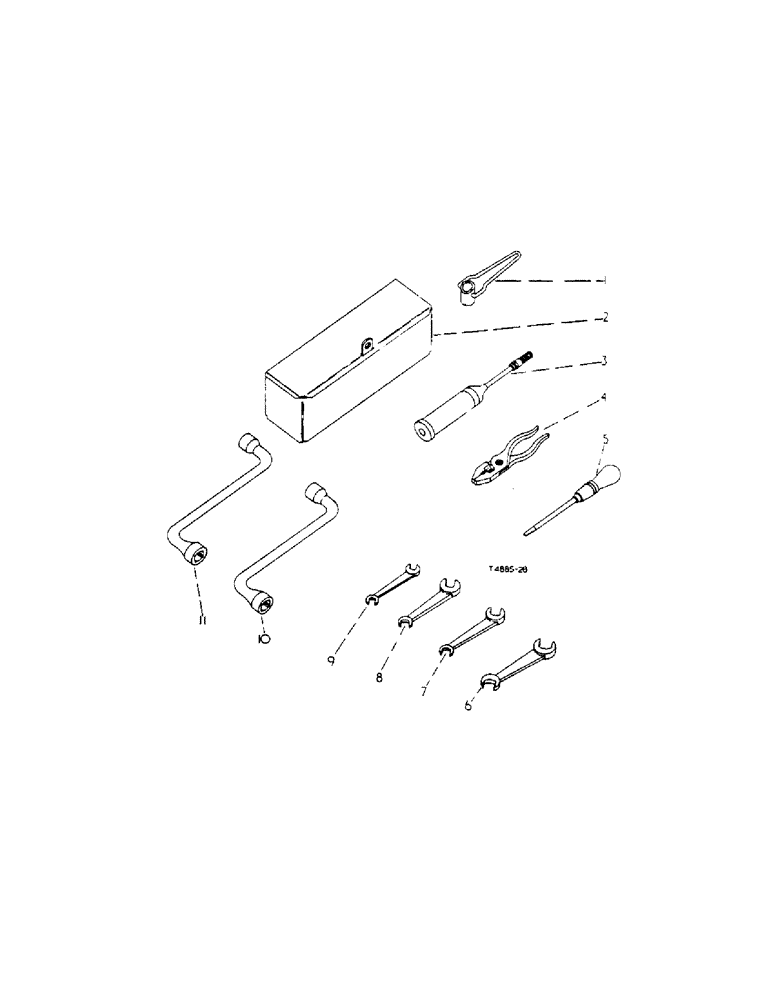

Запчасти Case IH 434 (4-33[1]) - TOOLBOX AND TOOLS - CHASSIS (09) - CHASSIS

1

3045260R92

WRENCH, glow spark plug

1шт.

2

708194R92

BOX

TOOLBOX, cpte.

1шт.

17413R1

BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd

7/16" x 3/4" mach. hex-hd.

2шт.

271500

SOCKET

7/16" hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

3

704669R92

GREASE GUN

see Figure 4-34

1шт.

4

3047686R92

PLIERS, 6" (pair)

1шт.

5

2588T

SCREWDRIVER, 5" (wood handled)

1шт.

6

3047690R1

SPANNER, (3/4" x 7/8") double open ended

1шт.

7

3047691R1

SPANNER, (11/16" x 17/32") double open ended

1шт.

8

3047689R1

SPANNER, (9/16" x 5/8") double open ended

1шт.

9

3047688R1

SPANNER, (1/2" x 7/16") double open ended

1шт.

10

3047692R1

WRENCH, double ended, socket

1шт.

11

705253R1

WRENCH, double ended, socket

1шт.
