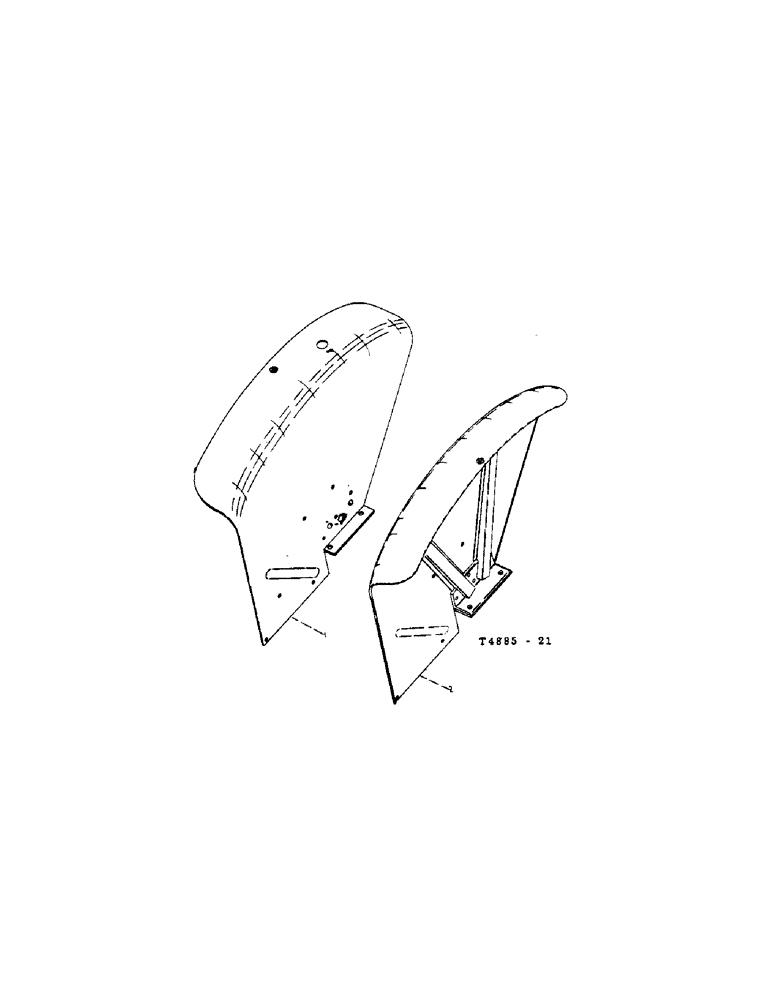

Запчасти Case IH 434 (4-10) - FENDERS - CHASSIS (09) - CHASSIS

1

3071653R91

FENDER

assy., cpte., R.H. (Export) 434D/20043 up, including 434P/2404 up

1шт.

1

3071643R91

FENDER, assy., cpte., R.H. (Export) 434D/10700/20042, including 434P/1362/2403

1шт.

1

3070580R91

FENDER, assy., cpte., R.H. (Export) up to 434D/10699, including, Serial Range: up-434P/1361

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8" x 2" Hex-hd.

2шт.

102639

NUT,5/8"-11, G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Fender to footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

Fender to Footplate 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Fender to footplate 3/8"

1шт.

2

3071652R91

FENDER, assy., cpte., L.H. (Export) 434D/20043 up, including 434P/2404 up

1шт.

2

3071642R91

FENDER

assy., cpte., L.H. (Export) 434D/10700/20042, including 434P/1362/2403

1шт.

2

3070579R91

FENDER, assy., cpte., L.H. (Export) up to 434D/10699, including, Serial Range: up-434P/1361

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8" x 2" hex-hd.

2шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Fender to footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

Fender to Footplate 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Fender to footplate 3/8"

1шт.

3071650R91

FENDER

assy., cpte., L.H. (Domestic) 434D/20043 up, including 434P/2404 up

1шт.

3071640R91

FENDER

assy., cpte., L.H. (Domestic) 434D/10700/20042, including 434P/1362/2403

1шт.

3070583R91

FENDER

assy., cpte., L.H. (Domestic) up to 434D/10699, including, Serial Range: up-434P/1361

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8" x 2" hex-hd.

2шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Fender to footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Fender to Footplate Hex, 3/8"-16 x 1", G5

1шт.

102635

NUT,3/8"-16, G5

Fender to Footplate 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Fender to footplate 3/8"

2шт.

3071651R91

FENDER

assy., cpte., R.H. (Domestic) 434D/20043 up, including 434P/2404 up

1шт.

3071641R91

FENDER, assy., cpte., R.H. (Domestic) 434D/10700 up, including 434P/1362/2403

1шт.

3070584R91

FENDER

assy., cpte., R.H. (Domestic) up to 434D/10699, including, Serial Range: up-434P/1361

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8" x 2" hex-hd.

2шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Fender to footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

Fender to Footplate 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Fender to footplate 3/8"

2шт.
