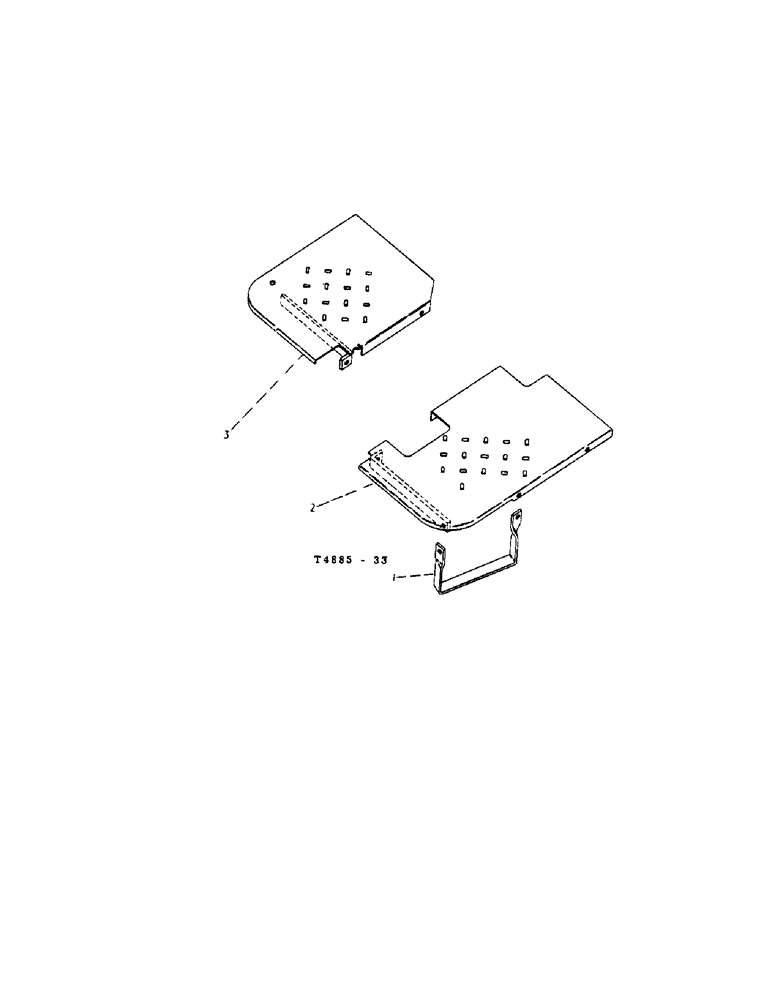

Запчасти Case IH 434 (4-10[1]) - FOOTPLATES - CHASSIS (09) - CHASSIS

1

3070589R1

FOOTSTEP

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3070585R11

PLATE

FOOTPLATE, cpte., L.H.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

3070587R21

PLATFORM

FOOTPLATE, cpte., R.H.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.
