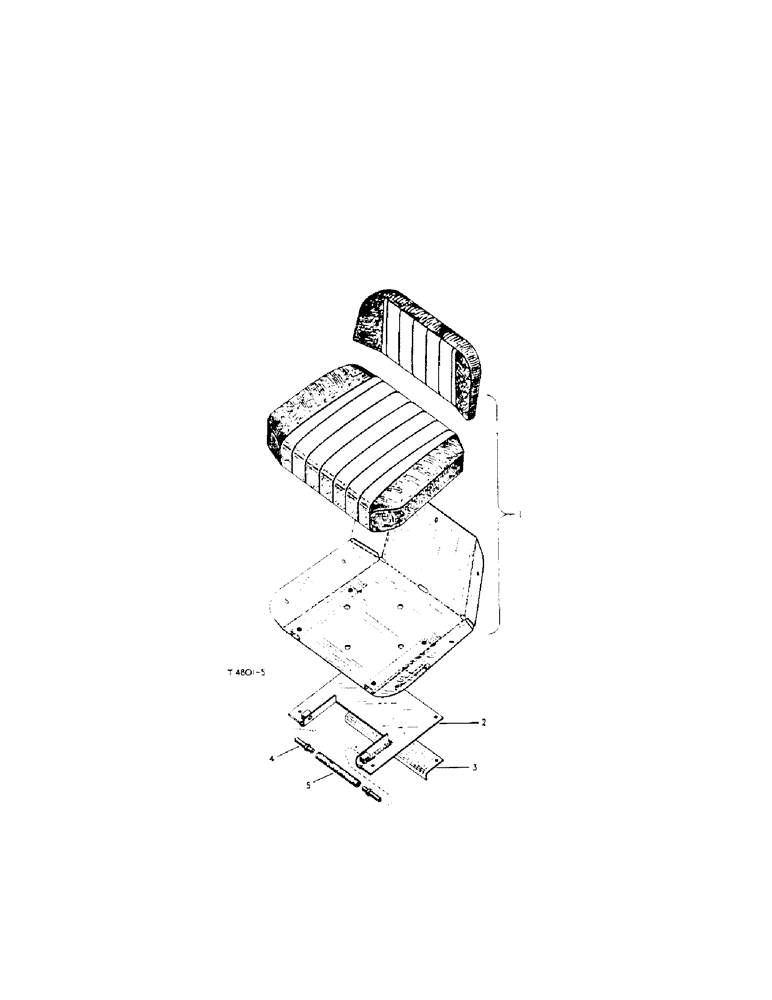

Запчасти Case IH 434 (4-09) - DELUXE SEAT - CHASSIS (09) - CHASSIS

3109579R91

SEAT

assy., deluxe, cpte., Includes: Ref. 1, 2, 4 and 5

1шт.

1

3069568R91

SEAT

cpte., deluxe

1шт.

3068212R91

CUSHION

assy., seat

1шт.

3068211R91

SEAT

PAN, assy., seat

1шт.

3068213R91

ARMREST

REST, assy., back

1шт.

3070940R1

SLIDE

RAIL, L.H. slide

1шт.

3070941R1

SLIDE

RAIL, R.H. slide

1шт.

3070942R1

SPACER

4шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16" x 3/8" pan-hd., recess

4шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

3069579R11

PLATFORM

cpte., seat

1шт.

3

3071396R1

ANGLE

SUPPORT, rear platform

1шт.

4

3069619R1

PIN

rear pivot

2шт.

5

3069620R1

RETAINER

pivot pin

1шт.
