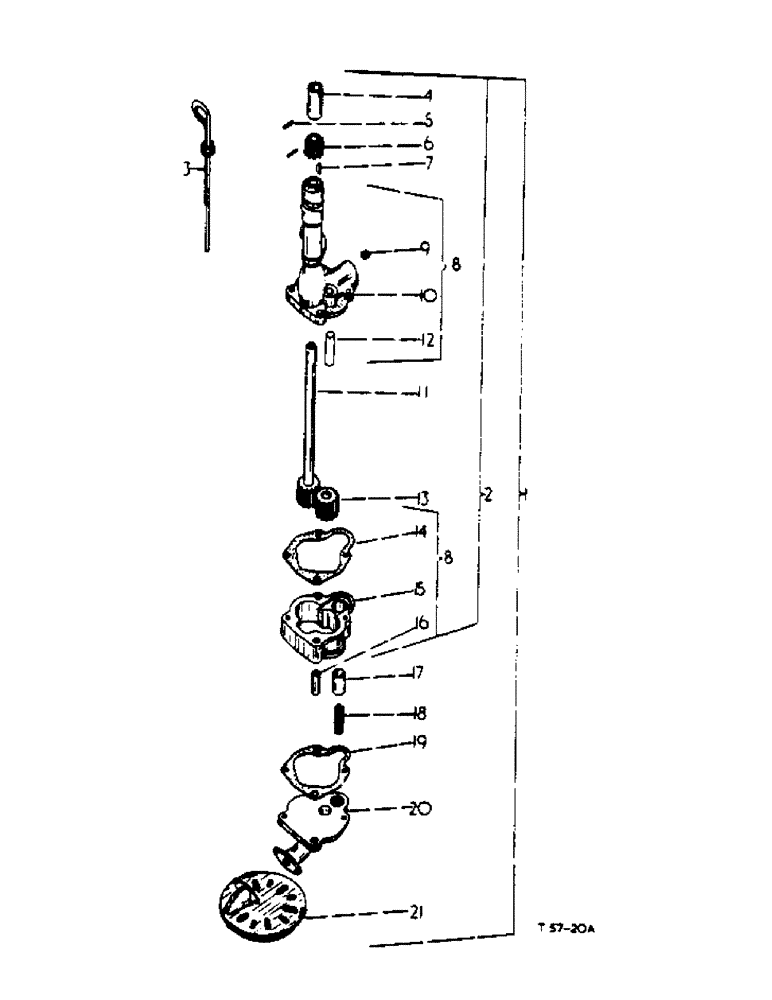

Запчасти Case IH 434 (1-14) - LUBRICATION SYSTEM - DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
3064060R91
PUMP
oil assy., comprising: Ref. 2 - 21
1шт.
751830R2
VALVE
BALL
1шт.
3043132R93
BODY
1шт.
179826
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
2шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
3064061R1
COVER
1шт.
711558R1
GASKET
1шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
3064062R91
FILTER SCREEN
SCREEN
1шт.
751829R1
SPRING
1шт.
115548
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
hex-hd., 3/8" x 1-1/8"
1шт.
115549
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
1шт.
2
3043132R93
BODY
oil pump, assy., comprising: Ref. 3 - 16
1шт.
3042570R92
CASE
BODY
1шт.
3042479R1
COUPLING, BREAK AWAY
COUPLING
1шт.
3063757R1
GEAR
1шт.
126-111
WOODRUFF KEY,#5, 1/8" x 5/8", HT
KEY
1шт.
704107R1
GEAR
PINION
1шт.
932204R1
LOCK PIN,M3 x 20, Slotted
PIN
2шт.
3042572R91
SHAFT
1шт.
3
706977R91
DIPSTICK
GAUGE, cpte., oil lever
1шт.
4
3042479R1
COUPLING, BREAK AWAY
COUPLING, hourmeter drive
1шт.
5
932204R1
LOCK PIN,M3 x 20, Slotted
PIN, roll (3 mm dia. x 20 mm. long)
2шт.
6
704107R1
GEAR
PINION, oil pump drive
1шт.
7
126-111
WOODRUFF KEY,#5, 1/8" x 5/8", HT
KEY, Woodruff
2шт.
8
3042570R92
CASE
BODY, cpte., oil pump, comprising
1шт.
NSS
NOT SOLD SEPARAT
BODY
1шт.
NSS
NOT SOLD SEPARAT
CASE
1шт.
706628R1
GASKET
1шт.
932205R1
LOCK PIN,M10 x 40, Slotted
PIN
2шт.
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
1шт.
NSS
NOT SOLD SEPARAT
SHAFT
1шт.
9
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
1шт.
10
NSS
NOT SOLD SEPARAT
BODY, oil pump
1шт.
11
3042572R91
SHAFT
oil pump drive
1шт.
12
NSS
NOT SOLD SEPARAT
SHAFT, oil pump roller
1шт.
13
3063757R1
GEAR
oil pump body idler
1шт.
14
706628R1
GASKET
oil pump body
1шт.
15
NSS
NOT SOLD SEPARAT
CASE, oil pump gear
1шт.
16
932205R1
LOCK PIN,M10 x 40, Slotted
PIN, roll (10 mm dia. x 40 mm long)
2шт.
17
751830R2
VALVE
BALL, oil pressure regulating valve
1шт.
18
751829R1
SPRING
oil pressure regulating valve
1шт.
19
711558R1
GASKET
oil pump gear
1шт.
20
3064061R1
COVER
oil pump
1шт.
179826
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
2шт.
9635082
NUT,5/16" - 18, Gr 5
hex., 5/16"
2шт.
115548
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
4шт.
21
3064062R91
FILTER SCREEN
SCREEN, assy., oil pump
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
126-111
WOODRUFF KEY,#5, 1/8" x 5/8", HT
KEY, Woodruff (used on oil pump body assy.)
2шт.
Выбрано товаров: 55
