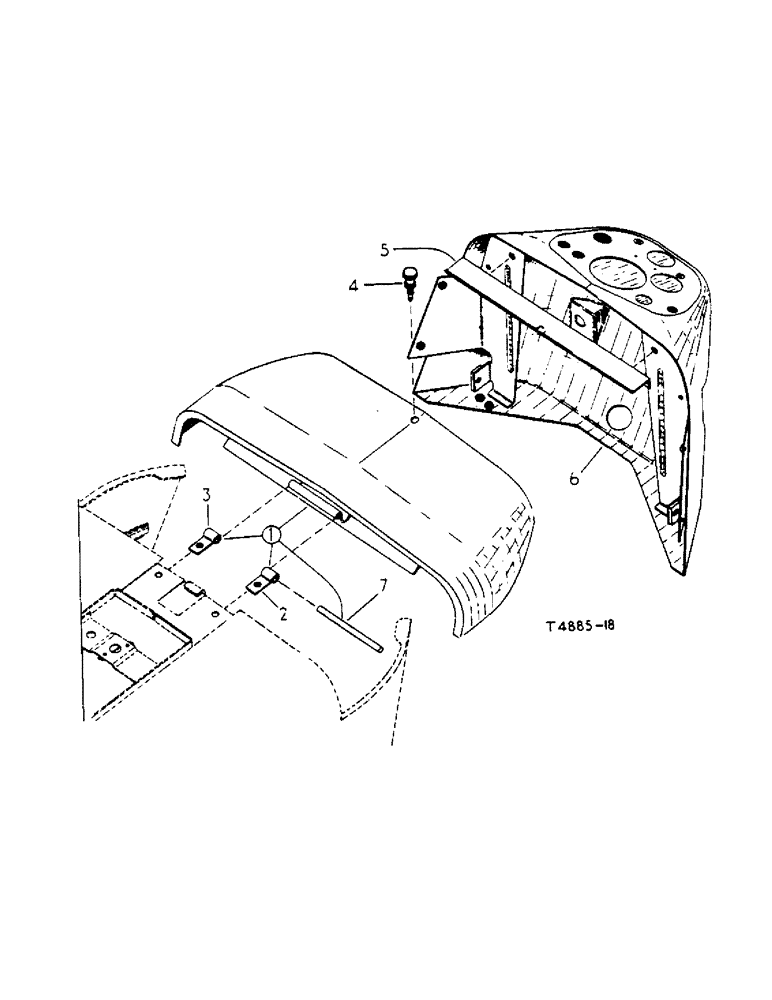

Запчасти Case IH 434 (4-06) - INSTRUMENT SHROUD AND BATTERY COVER, UP TO 434P/1748, UP TO 434D/14536 - CHASSIS (09) - CHASSIS

1

3070377R11

COVER

w/STRIP 3070521R11, STRIP 3070522R11 and PIN 3070523R1 cpte., battery

1шт.

2

3070521R11

STRIP, center piece L.H.

1шт.

3

3070522R11

STRIP, center piece R.H.

1шт.

4

3070525R1

KNOB

battery cover

1шт.

102025

NUT, 5/16" UNF hex-hd.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

3070519R1

BRACKET, shroud tie

1шт.

3070792R1

LATCH, self fixing

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT, hex-hd., 1/4 x 3/8"

1шт.

6

3071318R91

SHROUD, w/STRIP 3071317R1 cpte., instrument (Diesel)

1шт.

6

3071177R91

SHROUD, w/STRIP 3071317R1, GROMMET 3071178R1 cpte., instrument (Petrol)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex-hd., 1/4" x 5/8"

1шт.

3070374R1

SCREW, hex-hd., 1/4 UNF x 1/2" mech.

1шт.

7

3070523R1

PIN, hinge

1шт.

3070363R1

BUMPER

BUFFER, battery lid

4шт.

3071178R1

GROMMET

1шт.

3071317R1

STRIP

2шт.
