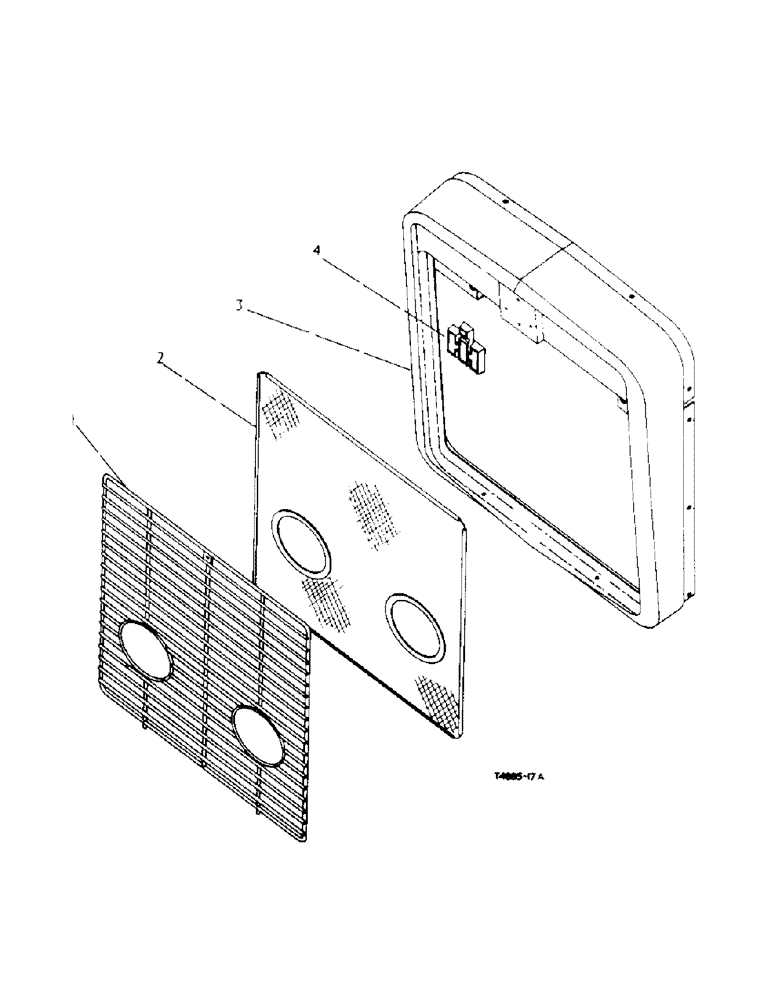

Запчасти Case IH 434 (4-05) - RADIATOR GRILLE AND FRAME - CHASSIS (09) - CHASSIS

1

3070331R11

GRILLE, cpte., radiator

1шт.

3070511R1

FASTENER

(Dzus)

1шт.

3070512R1

RING

retaining (Dzus)

1шт.

2

3070335R11

GRILLE

MESH, cpte., grille

1шт.

3

3071314R91

FRAME

w/FRAME 3070325R91, and 3 STRIP 3071315R1 assy., radiator grille

1шт.

3

3070325R91

FRAME

cpte., radiator grille

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

3044095R1

RIVET, pop

2шт.

3044094R1

SPRING

1шт.

3064777R1

WASHER, plain

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

2751846R1

EMBLEM CASE/IH

PLATE, I.H. monogram

1шт.

260-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

No. 10 x 5/16" pan-hd., tapp.

4шт.

3071315R1

STRIP

cushion

3шт.
