Запчасти Case IH 434 (4-04) - HOOD AND LID SIDE PANELS - CHASSIS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
3070369R11
PANEL

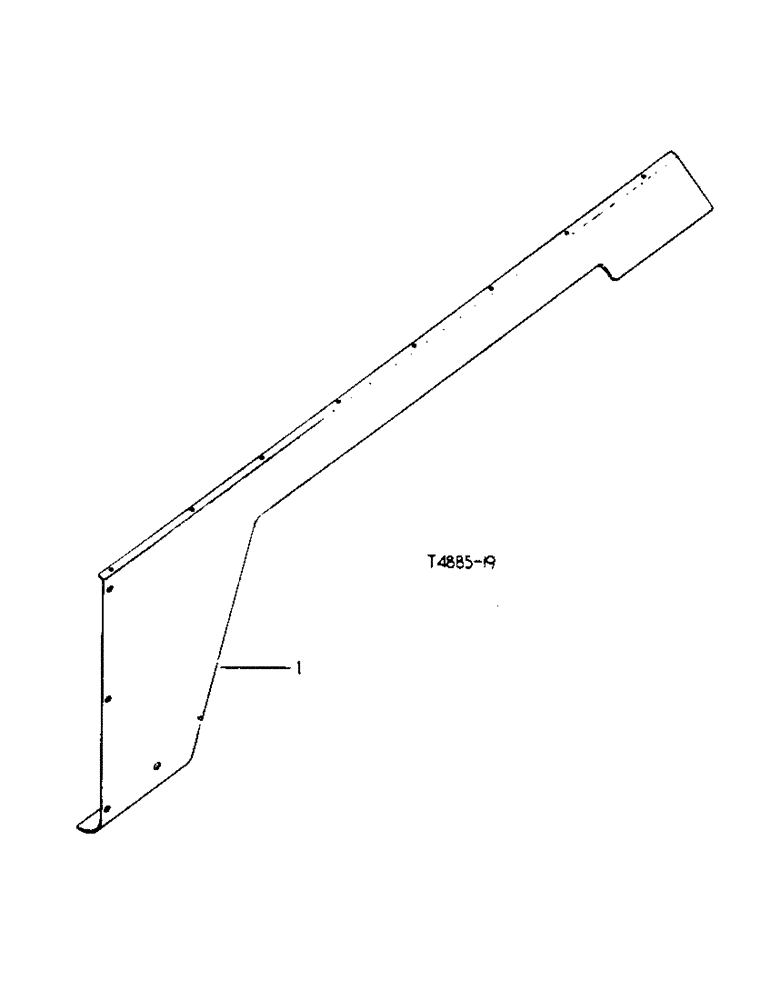

cpte., side L.H. (Illustrated)
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
20шт.
3070381R1
SCREW, 3/8" x 7/8" hex-hd., panel support
2шт.
436748
SCREW, pan-hd., No. 10-32
20шт.
131183
WASHER, lock, No. 10
20шт.
138542
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
2шт.
3070371R11
PANEL
cpte., side R.H.
1шт.
3070381R1
SCREW, 3/8" x 7/8" hex-hd., panel support
2шт.
436748
SCREW, pan-hd., No. 10-32
20шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
20шт.
131183
WASHER, lock, No. 10
20шт.
138542
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
2шт.
Выбрано товаров: 12
