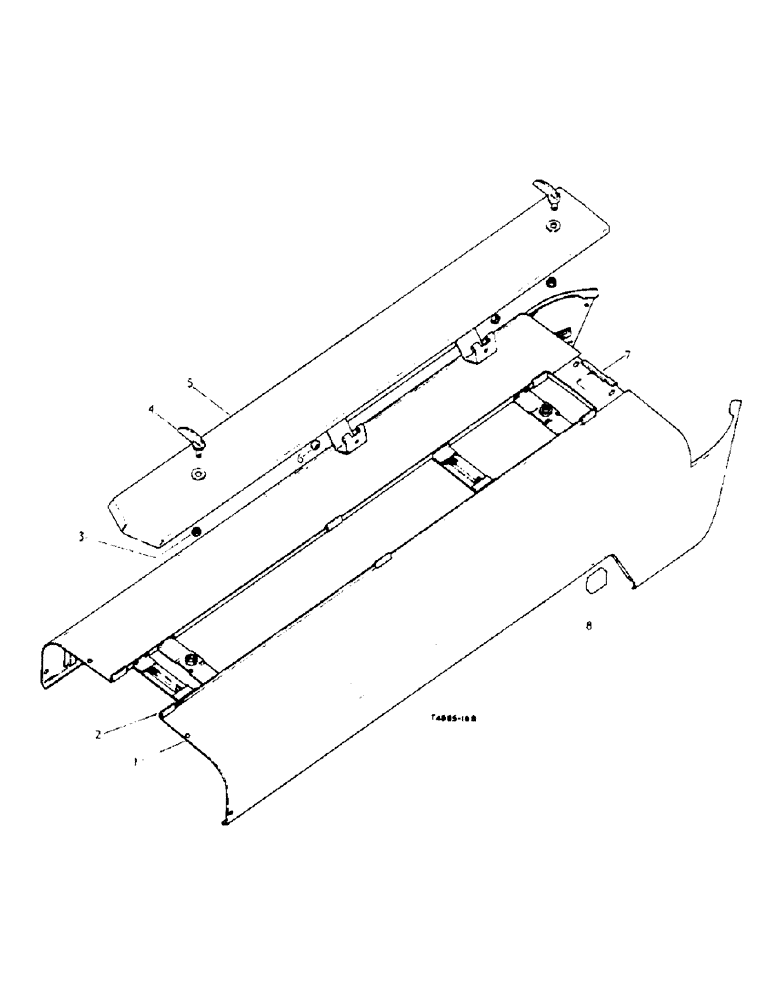

Запчасти Case IH 434 (4-03) - HOOD AND LID - CHASSIS (09) - CHASSIS

1

3070340R92

HOOD

SHEET, hood assy., up to 434/9081 Diesel, up to 434/1303 Petrol, comprising

1шт.

1

3071730R92

SHEET

hood assy., 434/9082 up Diesel, 434/1304 up Petrol, comprising

1шт.

3070342R2

STRIP

BUFFER

6шт.

3071954R1

PAD

2шт.

3070513R2

STRIP

1шт.

3070357R1

SPRING

1шт.

3044095R1

RIVET

2шт.

218322

WASHER,0.12" ID x 0.31" OD x 0.03" Thk

2шт.

2

3070342R2

STRIP

BUFFER, lid retainer

6шт.

3

3047340R1

GROMMET

hood sheet lid

2шт.

894585H1

RETAINER

434D/22780 up

2шт.

Including: 434P/2498 up, 434 N.T. Diesel/963 up, 434 N.T. Petrol/521 up, 434 H.V./527 up

1шт.

4

3107554R1

FASTENER

hood sheet lid 434D/22780 up

2шт.

Including: 434P/2498 up, 434 N.T. Diesel/963 up, 434 N.T. Petrol/521 up, 434 H.V./527 up

1шт.

4

3070361R1

FASTENER

hood sheet lid, Serial Range: up-434D/22779

2шт.

Including: up to 434P/2497, up to 434 N.T. Diesel/962, up to 434 N.T. Petrol/521, up to 434 H.V./527

1шт.

On orders for FASTENER 3070361R1, furnish FASTENER 3107554R1 & RETAINER 894585H1

1шт.

5

3070359R91

COVER

LID, hood sheet, assy., up to 434D/9081, comprising

1шт.

5

3071731R91

COVER

LID, hood sheet, assy., 434D/9082 up, comprising

1шт.

3070363R1

BUMPER

BUFFER

2шт.

3107554R1

FASTENER

2шт.

3047340R1

GROMMET

2шт.

894585H1

RETAINER

2шт.

3070366R1

PIN, hinge

2шт.

6

3070363R1

BUMPER

BUFFER, lid hinge

2шт.

7

3070513R2

STRIP, battery cover stop

1шт.

8

3071954R1

PAD

radiator

2шт.

3072055R1

BOLT

special

10шт.

3072684R1

WASHER

plain, 9/32" x 5/8"

10шт.

3072055R1

BOLT

hex-hd., 1/4" x 3/8"

6шт.

3072684R1

WASHER

9/32" x 5/8"

6шт.

3044095R1

RIVET, used in Hood assy.

2шт.

3070357R1

SPRING

used in Hood assy.

1шт.

218322

WASHER,0.12" ID x 0.31" OD x 0.03" Thk

used in Hood assy.

2шт.
