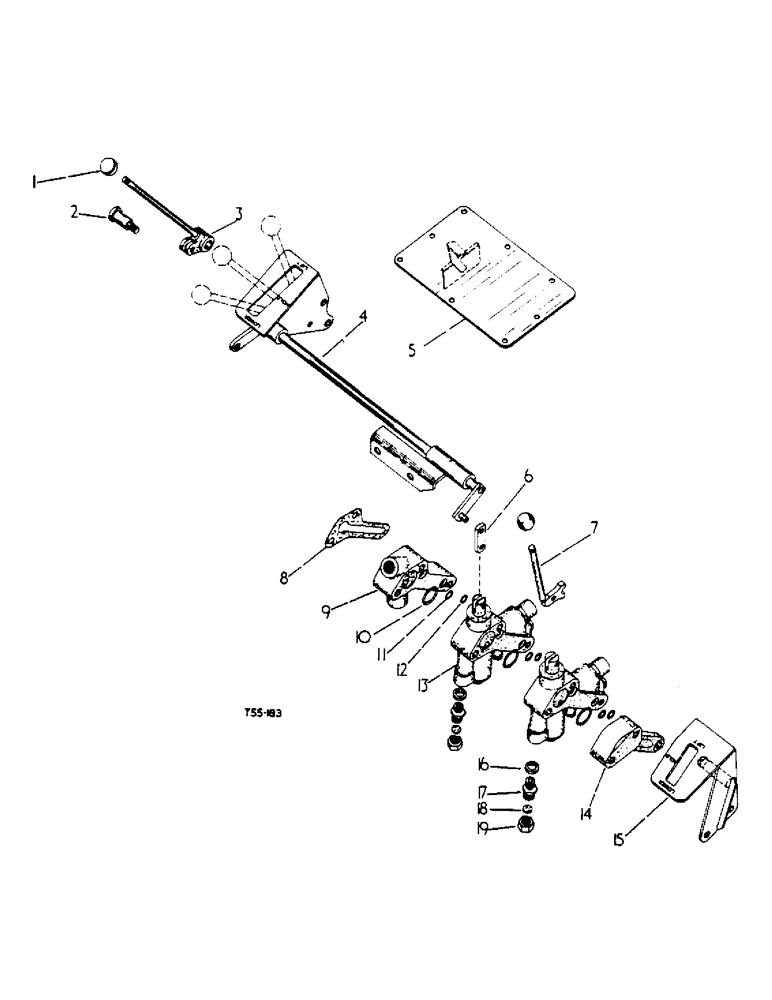

Запчасти Case IH 434 (5-33) - AUX. VALVE ATTACHMENTS, W/1 SINGLE ACTING & 1 DOUBLE ACTING VALVE(3070862R91, 3070863R91) - HYD. ATT (08) - HYDRAULICS

3070862R91

ATTACHMENT, Single Acting Ind. Aux. and Double Acting Aux. Valves (Domestic)

1шт.

3070863R91

ATTACHMENT, Single Acting Ind. Aux. and Double Acting Aux. Valves (Export)

1шт.

1

371602R1

KNOB

1шт.

2

3067252R1

SPINDLE, control lever, for 3070862R91

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8" x 1-1/8" hex-hd., (cad- or zinc-pltd.), for 3070862R91

2шт.

120377

NUT,3/8" - 16, Gr 5

For 3070862R91 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , For 3070862R91 3/8"

3шт.

3

3061041R11

LEVER

cpte., control R.H.

1шт.

3066427R1

PIN

5/16" x 7/8" std-hd.

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

4

3069015R91

SHAFT, assy., cross, for 3070862R91

1шт.

4

3069016R91

SHAFT

assy., cross, for 3070863R91

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2" x 2-3/4" hex-hd.

2шт.

102635

NUT,3/8"-16, G5

For 3070863R91 3/8"-16, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , For 3070863R91 3/8"

1шт.

Q1505

WASHER

13/32" x 1" x 16 ga. plain, for 3070863R91

1шт.

5

3044366R12

PLATE

top cover welded assy.

1шт.

6

3061040R1

LINK

connecting

1шт.

3063983R1

HEADED PIN,5/16" x 1"

PIN, std-hd. 5/16" x 1"

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

2шт.

7

3061061R91

LEVER

ARM and LEVER, assy., L.H.

1шт.

3063983R1

HEADED PIN,5/16" x 1"

PIN, 5/16" dia. x 1" std-hd.

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

8

3061055R2

GASKET

1шт.

9

3069023R1

BLOCK

adaptor

1шт.

10

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1" x 1-1/4" x 1/8"

3шт.

3110297R1

RETAINER

O-ring

3шт.

11

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

7/16" x 5/8" x 3/32"

3шт.

12

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8" x 9/16" x 3/32"

3шт.

13

3069019R92

LOCK VALVE

VALVE, single acting Ind. Aux., for 3070862R91 and 3070863R91

1шт.

13

3069020R92

CONTROL VALVE

VALVE, double acting Aux., for 3070862R91 and 3070863R91

1шт.

14

3069021R1

PLATE

valve cover

1шт.

15

3069017R91

BRACKET

and CONTROL lever pivot assy., for 3070862R91

1шт.

15

3069018R91

LEVER

BRACKET and CONTROL lever pivot assy., for 3070863R91

1шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

3/8" x 6-3/4" hex-hd., for 3070863R91

2шт.

186290

BOLT (SPREADER)

BOLT, 3/8" x 6" hex-hd., for 3070863R91

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , For 3070863R91 3/8"

3шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8" x 6-3/4" hex-hd., (cad. or zinc-pltd.), for 3070862R91

1шт.

20508R1

BOLT

3/8" x 6" hex-hd., (cad. or zinc-pltd.), for 3070862R91

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , For 3070862R91 3/8"

3шт.

16

704743R91

SEALING WASHER

WASHER, Dowty

1шт.

17

702270R2

ADAPTER

ADAPTOR, hose

1шт.

18

703619R1

GASKET

blanking off nut

1шт.

19

703618R1

NUT

blanking off

1шт.

9410360

PLUG

blanking (C.D.), used with double acting auxiliary valves

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(C.D.) PRESSURE PIPES (see detail list), used with double acting auxiliary valves

2шт.

3110307R91

O-RING

PACKAGE, O-ring service, comprising all parts listed below

1шт.

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

3110297R1

RETAINER

1шт.
