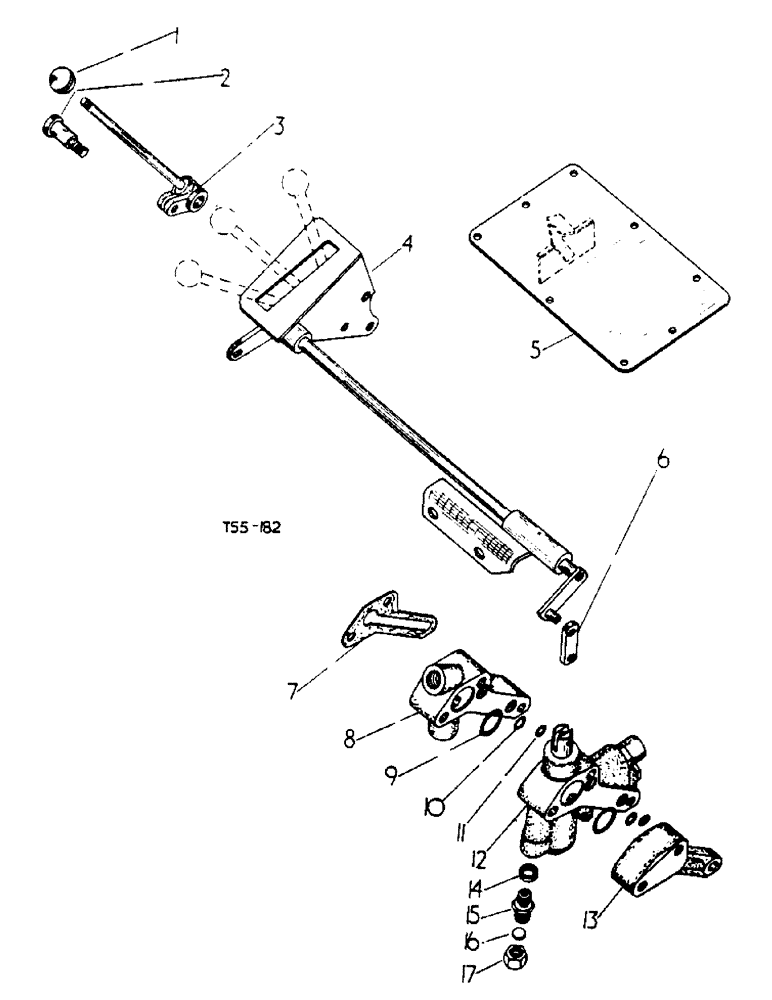

Запчасти Case IH 434 (5-31) - AUXILIARY VALVE ATTACHMENTS, WITH ONE SINGLE ACTING OR ONE DOUBLE ACTING VALVE - HYD. ATTACHMENTS (08) - HYDRAULICS

3070854R91

ATTACHMENT, Single Acting Ind. Aux. Valve (Domestic)

1шт.

3070855R91

ATTACHMENT, Single Acting Ind. Aux. Valve (Export)

1шт.

3070856R91

ATTACHMENT, Double Acting Aux. Valve (Domestic)

1шт.

3070857R91

ATTACHMENT, Double Acting Aux. Valve (Export)

1шт.

1

371602R1

1шт.

2

3067252R1

SPINDLE, control lever, for 3070854R91 and 3070856R91

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

hex. hd. (cad. or zinc plated.), 3/8" x 1-1/8", for 3070854R91 and 3070856R91

2шт.

120377

NUT,3/8" - 16, Gr 5

For 3070854R91 and 3070856R91 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , For 3070854R91 and 3070856R91 3/8"

3шт.

3

3061041R11

LEVER

cpte., R. H. control

1шт.

3066427R1

PIN

5/16" x 7/8" std-hd.

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

4

3069015R91

SHAFT, assy., cross, for 3070854R91 and 3070856R91

1шт.

4

3069016R91

SHAFT

assy., cross, for 3070855R91 and 3070857R91

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2" x 3-3/4" hex-hd.

2шт.

102635

NUT,3/8"-16, G5

For 3070855R91 and 3070857R91 3/8"-16, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , For 3070855R91 and 3070857R91 3/8"

1шт.

Q1505

WASHER

13/32" x 1" x 16 ga. plain, for 3070855R91 and 3070857R91

1шт.

5

3044366R12

PLATE

top cover welded assy.

1шт.

6

3061040R1

LINK

connecting

1шт.

3063983R1

HEADED PIN,5/16" x 1"

PIN, std-hd. 5/16" x 1"

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

7

3061055R2

GASKET

1шт.

8

3069023R1

BLOCK

adaptor

1шт.

9

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1" x 1-1/4" x 1/8"

2шт.

3110297R1

RETAINER

O-ring

2шт.

10

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

7/16" x 5/8" x 3/32"

2шт.

11

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8" x 9/16" x 3/32"

2шт.

12

3069019R92

LOCK VALVE

VALVE, single acting Ind. Aux., for 3070854R91 and 3070855R91

1шт.

12

3069020R92

CONTROL VALVE

VALVE, double acting Aux., for 3070856R91 and 3070857R91

1шт.

13

3069021R1

PLATE

valve cover

1шт.

186289

BOLT,Hex, 3/8" - 16 x 5", Gr 5

hex. hd., 3/8" x 5", for 3070856R91 and 3070857R91

2шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

3/8" x 4-1/4" hex-hd., for 3070856R91 and 3070857R91

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , For 3070856R91 and 3070857R91 3/8"

3шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

hex. hd. (cad. or zinc plated), 3/8" x 5", for 3070854R91 and 3070855R91

2шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

3/8" x 4-1/4", hex-hd., (cad. or zinc-pltd.), for 3070854R91 and 3070855R91

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , For 3070854R91 and 3070855R91 3/8"

3шт.

14

704743R91

SEALING WASHER

WASHER, Dowty, for 3070854R91 and 3070855R91

1шт.

15

702270R2

ADAPTER

ADAPTOR, hose, for 3070854R91 and 3070855R91

1шт.

16

703619R1

GASKET

blanking off nut, for 3070854R91 and 3070855R91

1шт.

17

703618R1

NUT

blanking off, for 3070854R91 and 3070855R91

1шт.

9410360

PLUG

blanking, for 3070856R91 and 3070857R91

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

PRESSURE PIPES (see detail list), for 3070856R91 and 3070857R91

2шт.

3110307R91

O-RING

PACKAGE, O-ring service, comprising all parts listed below

1шт.

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

3110297R1

RETAINER

1шт.
