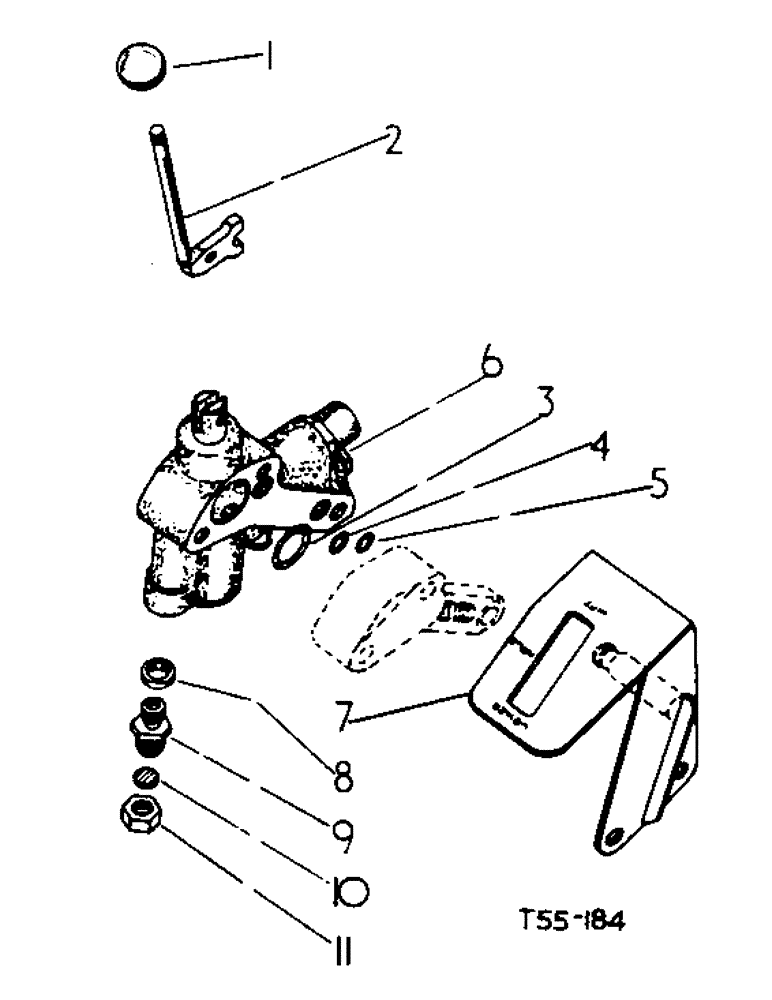

Запчасти Case IH 434 (5-30) - AUXILIARY VALVE ATTACHMENTS (WHEN ONE AUXILIARY VALVE ALREADY FITTED) - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

3069011R91

ATTACHMENT, Single Acting Ind. Aux. Valve (Domestic)

1шт.

3069012R91

ATTACHMENT Single Acting Ind. Aux. Valve (Export)

1шт.

3069013R91

ATTACHMENT Double Acting Aux. Valve (Domestic)

1шт.

3069014R91

ATTACHMENT Double Acting Aux. Valve (export)

1шт.

1

371602R1

KNOB

1шт.

2

3061061R91

LEVER

ARM and LEVER, assy., L.H.

1шт.

3063983R1

HEADED PIN,5/16" x 1"

PIN, 5/16" dia. x 1" std-hd.

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1" x 1-1/4" x 1/8"

1шт.

3110297R1

RETAINER

O-ring

1шт.

4

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

7/16" x 5/8" x 3/32"

1шт.

5

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8" x 9/16" x 3/32"

1шт.

6

3069019R92

LOCK VALVE

VALVE, Single Acting Ind. Aux., for 3069011R91 and 3069012R91

1шт.

6

3069020R92

CONTROL VALVE

VALVE, Double Acting Aux., for 3069013R91 and 3069014R91

1шт.

7

3069017R91

BRACKET

and Control lever pivot assy., for 3069011R91 and 3069013R91

1шт.

7

3069018R91

LEVER

BRACKET, and Control lever pivot assy., for 3069012R91 and 3069014R91

1шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

3/8" x 6-3/4" hex-hd., for 3069012R91 and 3069014R91

2шт.

186290

BOLT (SPREADER)

BOLT, 3/8" x 6" hex-hd., for 3069012R91 and 3069014R91

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , For 3069012R91 and 3069014R91 3/8"

3шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8" x 6-3/4" hex-hd., (cad. or zinc pltd.), for 3069011R91 and 3069013R91

1шт.

20508R1

BOLT

hex. hd. (cad. or zinc pltd.), 3/8" x 6", for 3069011R91 and 3069013R91

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , For 3069011R91 and 3069013R91 3/8"

3шт.

8

704743R91

SEALING WASHER

WASHER, Dowty, for 3069011R91 and 3069012R91

1шт.

9

702270R2

ADAPTER

ADAPTOR, hose, for 3069011R91 and 3069012R91

1шт.

10

703619R1

GASKET

blanking off nut, for 3069011R91 and 3069012R91

1шт.

11

703618R1

NUT

blanking off, for 3069011R91 and 3069012R91

1шт.

3110307R91

O-RING

PACKAGE service, O-ring, comprising all parts listed below

1шт.

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

3110297R1

RETAINER

1шт.
