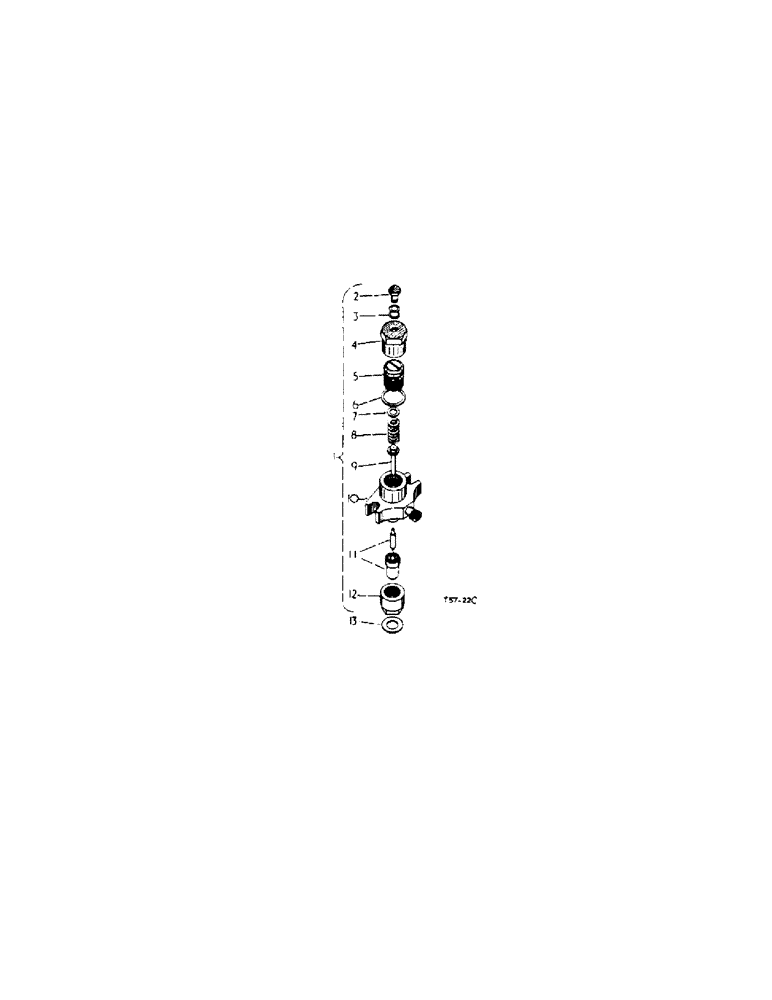

Запчасти Case IH 434 (1-10) - INJECTION NOZZLE AND NOZZLE COMPLETE - DIESEL ENGINE (02) - ENGINE

1

3040870R93

FUEL SYSTEM INJECTOR

HOLDER, injection nozzle w/HOLDER 3072556R91 and NOZZLE 3040871R91, each comprising: Ref. 2 - 12

4шт.

On orders for holder 3040870R93, furnish R94 with two 706077R1 washers, two 703519R1 washers and one 705498R1 stud.

1шт.

2

705498R1

STUD,M8 x 14mm

leak off

1шт.

Part of injection nozzle holder P/N 3072556R91

1шт.

3

703519R1

WASHER

leak off stud

1шт.

Part of injection nozzle holder P/N 3072556R91

1шт.

4

3066623R1

NUT

body cap

1шт.

Part of injection nozzle holder P/N 3072556R91

1шт.

5

3066624R1

CAP, spring

1шт.

Part of injection nozzle holder P/N 3072556R91

1шт.

6

706287R1

WASHER

joint

1шт.

Part of injection nozzle holder P/N 3072556R91

1шт.

7

895578H1

WASHER

1шт.

Part of injection nozzle holder P/N 3072556R91

1шт.

7

3066626R1

WASHER

used w/Fabricated body

1шт.

8

3066625R1

SPRING

1шт.

Part of injection nozzle holder P/N 3072556R91

1шт.

9

706282R91

NEEDLE BEARING CAGE

SPINDLE

1шт.

Part of injection nozzle holder P/N 3072556R91

1шт.

10

3066622R91

BODY

1шт.

Part of injection nozzle holder P/N 3072556R91

1шт.

11

3040871R91

NOZZLE CAP

NOZZLE, cpte.

1шт.

12

3066627R1

NUT

nozzle cap

1шт.

Part of injection nozzle holder P/N 3072556R91

1шт.

3072556R91

HOLDER, INJECTOR NOZ

HOLDER, injection nozzle, consists of: Ref. 2 - 7 (P/N 895578H1), 8 - 10 and 12

1шт.

13

706291R1

WASHER

1шт.
