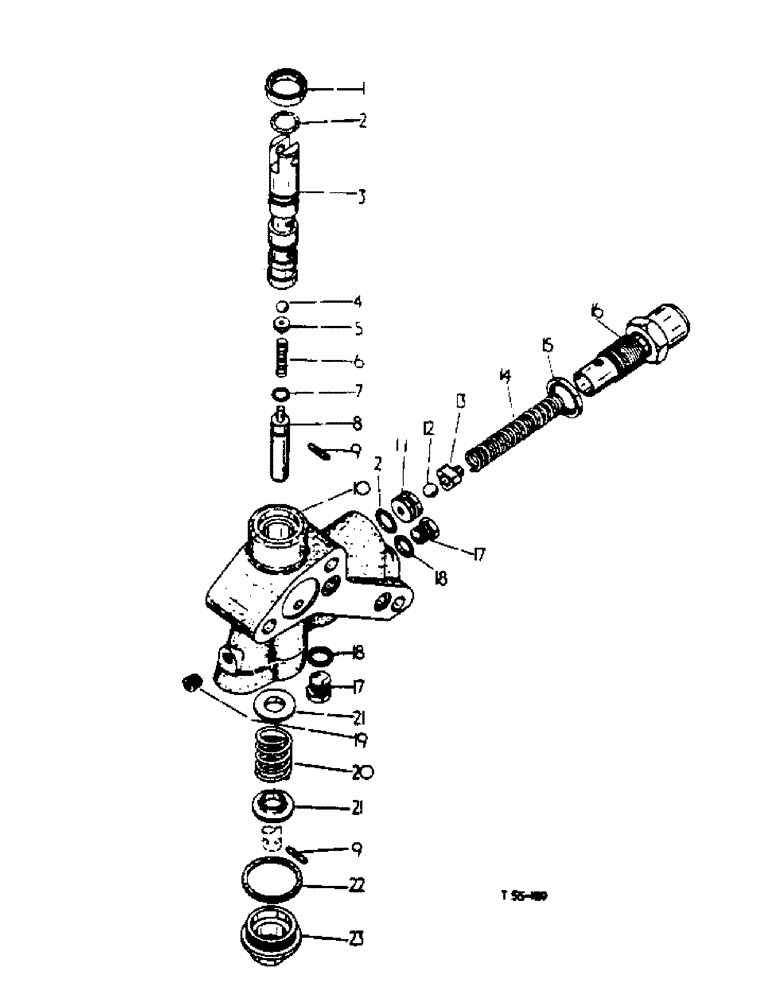

Запчасти Case IH 434 (5-27) - SINGLE ACTING INDEPENDENT AUXILIARY VALVES - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

3069019R92

LOCK VALVE

VALVE, auxiliary independent, single acting, comprising: Ref. 1 - 23

1шт.

1

3061049R1

SEAL

oil

1шт.

2

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16" x 3/4" x 3/32"

2шт.

3

SPOOL, valve (order 3069040R91)

1шт.

4

3072917R1

BALL,11/32" Dia

. 11/32" Dia

1шт.

5

3061046R1

SEAT

RIDER, ball

1шт.

6

3061047R1

SPRING

1шт.

7

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16" x 7/16" x 1/16"

1шт.

8

3061048R1

END

spool

1шт.

9

20948R1

PIN,1/8" x 5/8", Coiled

1шт.

10

BODY, valve (order 3069040R91)

1шт.

11

3069041R1

SEAT

relief valve

1шт.

12

3072883R1

BALL,3/8" Dia

. 3/8" Dia

1шт.

13

751556R2

SEAT

RIDER, ball

1шт.

14

751557R1

SPRING

relief valve

1шт.

15

3043070R1

WASHER

Dowty, 7/8" dia.

1шт.

16

3061054R1

HOUSING

relief valve spring

1шт.

17

110832

SPACER

SCREW, 7/16" x 1/2" mach., sltd-fill-hd.

2шт.

18

3043969R1

WASHER

Dowty

2шт.

19

444687

PLUG,Hex Soc, 1/8"-27

Pipe Hex Soc, 1/8"-27

1шт.

20

3064800R1

SPRING

return

1шт.

21

3061050R1

SEAT

spring

2шт.

22

3063547R1

WASHER

fiber

1шт.

23

3063999R1

PLUG

1шт.

3069040R91

BODY

assy., valve and Spool., (matched pair)

1шт.
