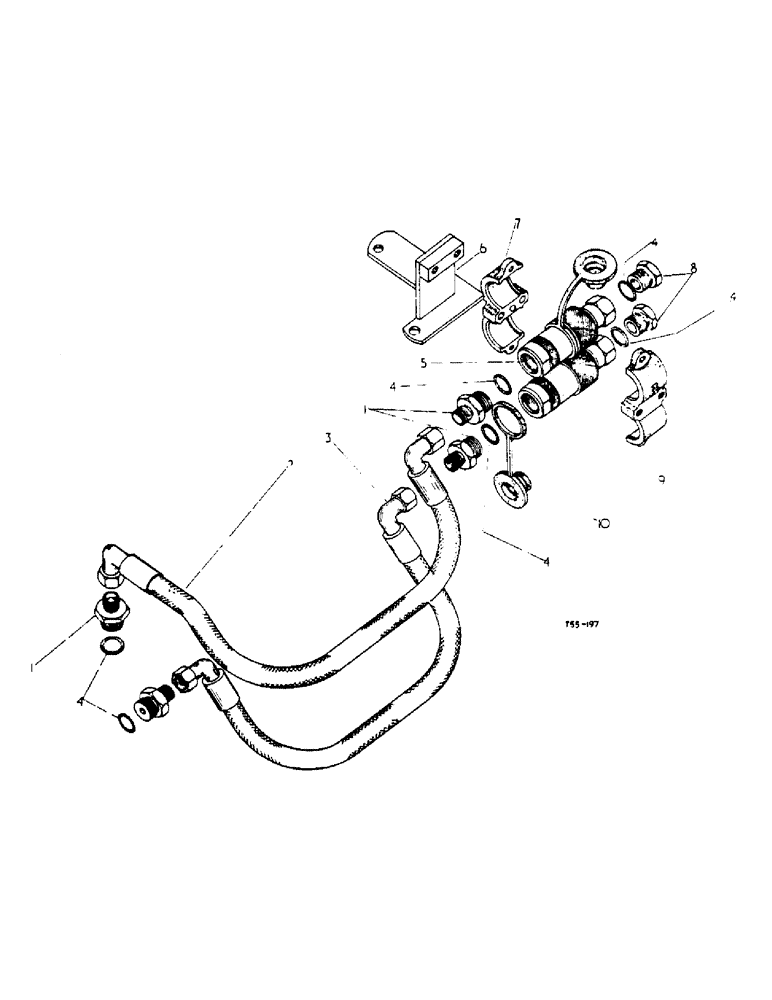

Запчасти Case IH 434 (5-26) - SELF-SEALING COUPLING ATTACHMENT, DOUBLE ACTING BREAKAWAY - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

3069764R91

ATTACHMENT, breakaway, self-sealing coupling

1шт.

Fitted to tractors with Double Acting Independent Auxiliary Valve Attachment

1шт.

1

3060799R2

ADAPTER

ADAPTOR, hose

4шт.

2

3069765R91

HOSE

flexible

1шт.

3

3062508R91

HOSE

flexible

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4" x 15/16" x 3/32"

6шт.

5

3067991R91

BREAKER POINTS

COUPLING, cpte., breakaway

2шт.

3067993R91

COUPLING, BREAK AWAY

COUPLING, cpte., female half, breakaway

2шт.

3067992R91

COUPLING, BREAK AWAY

COUPLING, cpte., male half, breakaway

2шт.

6

3065078R11

SUPPORT

PLATE, assy., coupling support

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16" x 1-1/2" hex-hd.

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

371114R1

CLAMP

FRAME

1шт.

8

9410360

PLUG

5/8" blanking

2шт.

9

371115R1

CLAMP

1шт.

10

373220R1

PLUG

SEAL, dust opt.

2шт.

10

401757R11

PLUG

SEAL, dust opt.

2шт.
