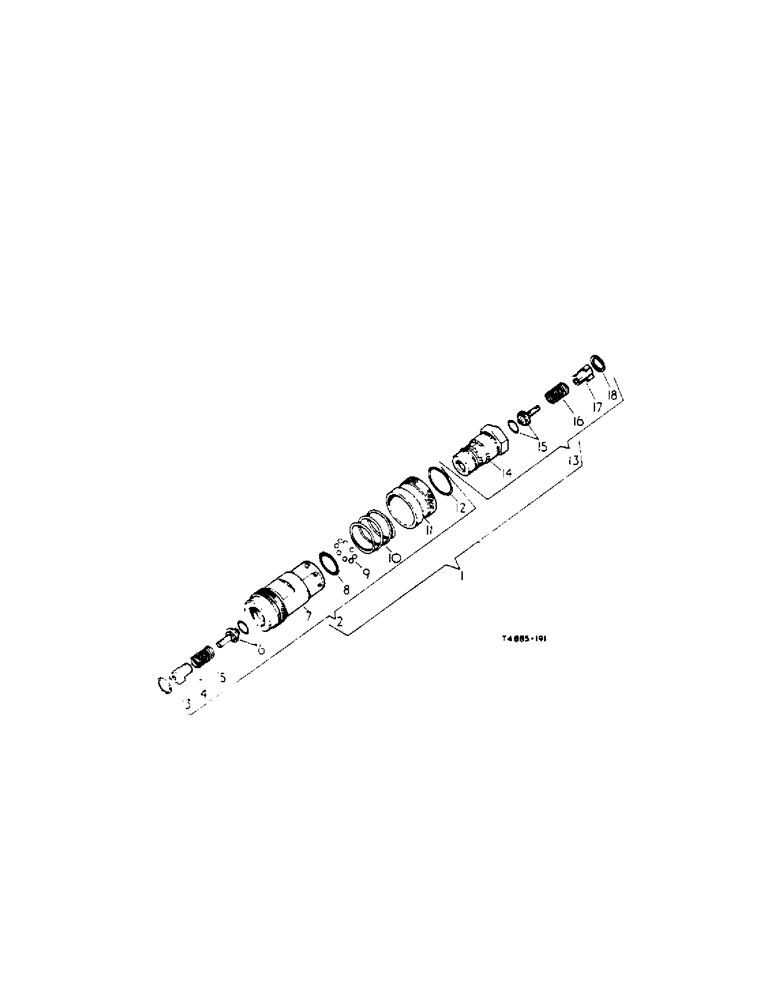

Запчасти Case IH 434 (5-25) - SELF-SEALING COUPLING, SINGLE BREAKAWAY, SERVICE ONLY - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

1

374781R92

COUPLING cpte., order 3067991R91, comprising: Ref. 2 - 18

1шт.

2

374780R92

COUPLING

assy., female, order 3067993R91, comprising: Ref. 3 - 12

1шт.

3

378051R1

SNAP RING,#62, .665", Int, Spiral

RING, retainer

1шт.

4

378043R1

RETAINER, check valve spring

1шт.

5

371121R1

SPRING, check ball retaining

1шт.

6

378042R11

CHECK VALVE

VALVE, cpte., check

1шт.

7

374785R2

BODY, female coupling

1шт.

8

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

1шт.

9

16006R1

BALL

3/16" dia. steel (Grade 2)

8шт.

10

371123R1

SPRING, lock, ball retainer

2шт.

11

371119R1

RETAINER, lock, ball

1шт.

12

371120R1

STOP, lock, ball retainer

1шт.

13

374779R92

COUPLING

assy., male, order 3067992R91, comprising: Ref. 14 - 18

1шт.

14

374787R2

BODY, male coupling

1шт.

15

378042R11

CHECK VALVE

VALVE, cpte., check

1шт.

16

371121R1

SPRING, check, ball retaining

1шт.

17

378043R1

RETAINER, check valve spring

1шт.

18

378051R1

SNAP RING,#62, .665", Int, Spiral

RING, retainer

1шт.
