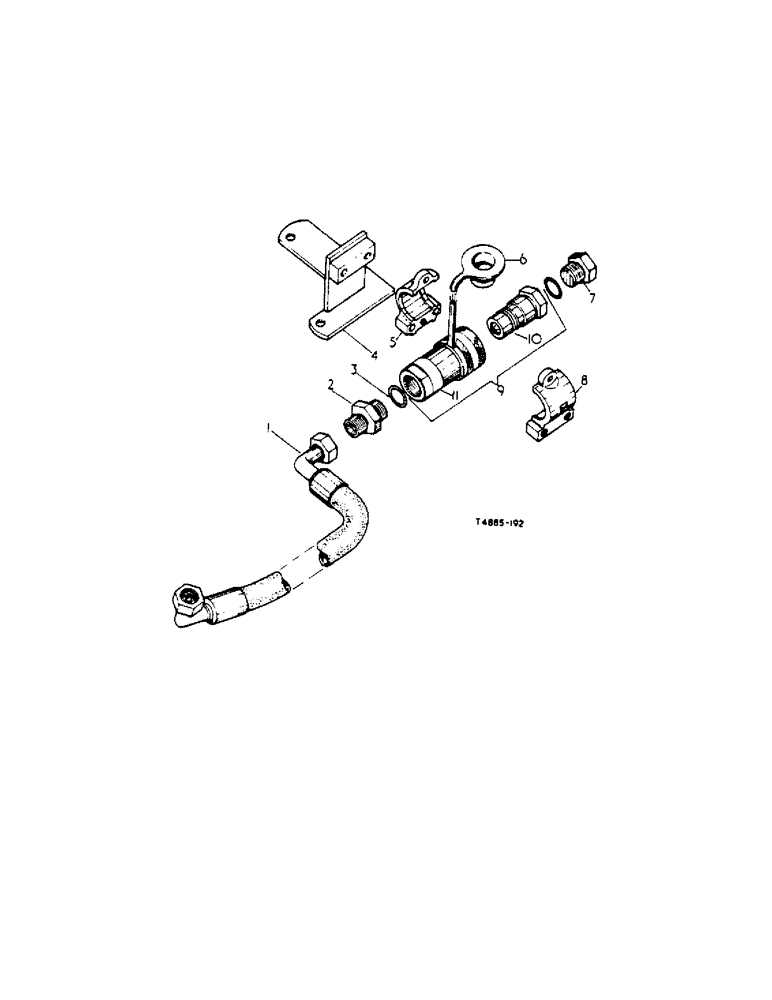

Запчасти Case IH 434 (5-25[1]) - SELF-SEALING COUPLING, SINGLE BREAKAWAY - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

1

3063993R91

HOSE

flexible

1шт.

2

3060799R2

ADAPTER

ADAPTOR, hose

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4" x 15/16" x 3/32"

2шт.

4

3065078R11

SUPPORT

PLATE, assy., coupling support

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

NLS

NO LONGER SERVICED

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

hex-hd., 5/16" x 2"

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

3063989R1

CLAMP

FRAME

1шт.

6

373220R1

PLUG

SEAL, dust opt.

1шт.

6

401757R11

PLUG

SEAL, dust opt.

1шт.

7

9410360

PLUG

blanking, 5/8"

1шт.

8

3063988R1

CLAMP

1шт.

9

3067991R91

BREAKER POINTS

COUPLING, breakaway cpte., comprising: Ref. 10 and 11

1шт.

10

3067992R91

COUPLING, BREAK AWAY

COUPLING, breakaway - male half cpte.

1шт.

11

3067993R91

COUPLING, BREAK AWAY

COUPLING, breakaway - female half cpte.

1шт.
