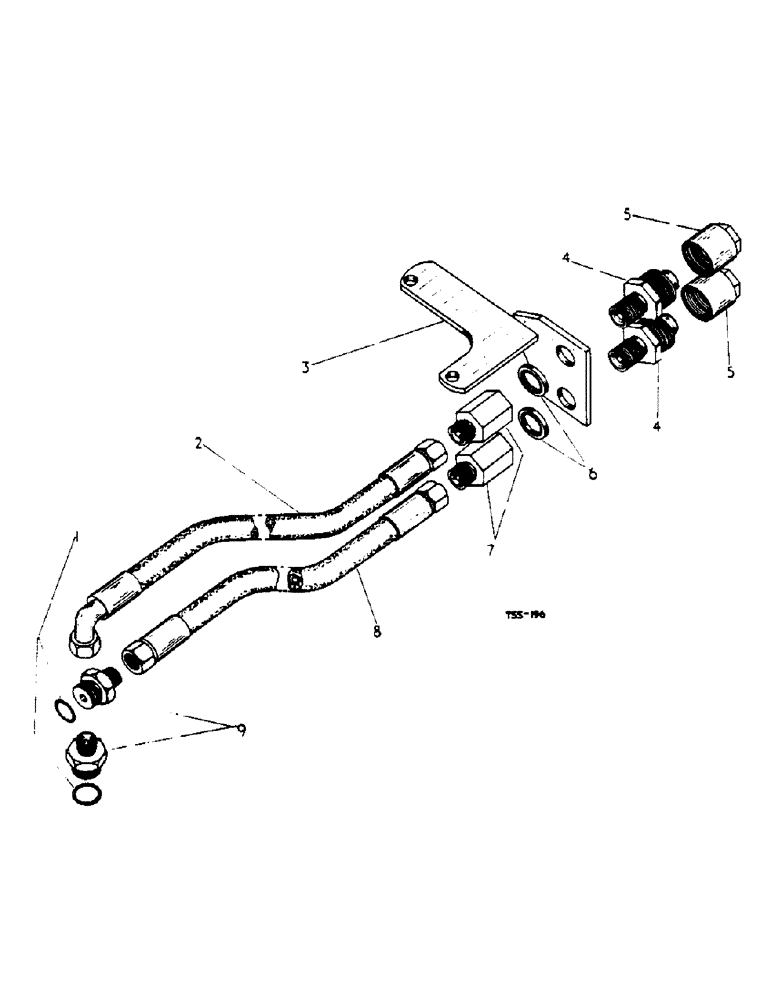

Запчасти Case IH 434 (5-24) - SELF-SEALING COUPLING ATTACHMENT, DOUBLE ACTING VALVE - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

3069763R91

ATTACHMENT cpte., self-sealing

1шт.

Fitted to tractors with Double Acting Independent Auxiliary Valve Attachment

1шт.

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4" x 15/16" x 3/32"

2шт.

2

3069766R91

HOSE

flexible

1шт.

3

3065081R91

SUPPORT, assy., coupling

1шт.

4

3041962R91

COUPLING, BREAK AWAY

COUPLING, male half, self-sealing, optional

2шт.

3045135R1

RING

O-RING

2шт.

3045134R91

SLEEVE

assy., sub.

2шт.

3045136R1

SLEEVE

tub.

2шт.

3045137R1

SPRING

2шт.

4

705579R91

COUPLING

Dowty, male half, self-sealing, optional

2шт.

3045140R1

RING

O-RING

2шт.

3045142R91

SLEEVE

assy., valve

2шт.

3045138R1

SPRING, locking

2шт.

3045139R1

SPRING, male half, valve

2шт.

3045141R1

VALVE

2шт.

5

3041963R1

CAP

dust, optional

2шт.

5

705578R1

CYLINDER END CAP

CAP, coupling dust, optional

2шт.

6

704337R1

SEALING WASHER

WASHER, Dowty, 1/2" BSP

2шт.

7

3063984R1

ADAPTER

ADAPTOR, Serial Range: coupling-hose

2шт.

8

3063985R91

HOSE

flexible

1шт.

9

3060799R2

ADAPTER

ADAPTOR, hose

2шт.
