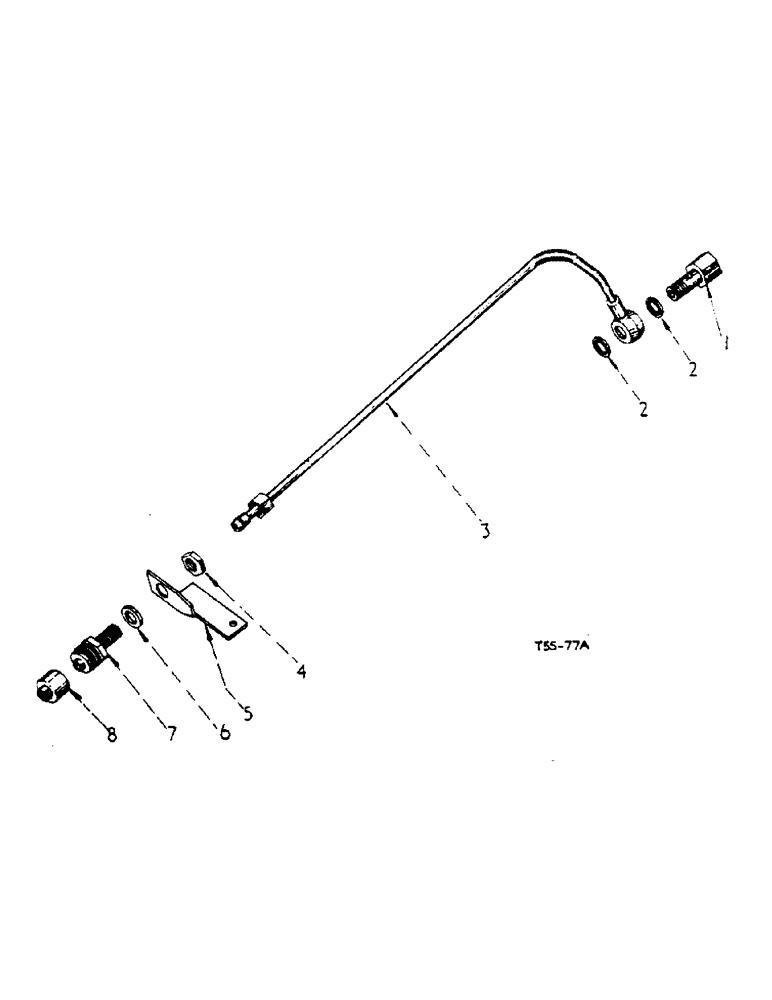

Запчасти Case IH 434 (5-21) - SELF-SEALING COUPLING ATTACHMENT - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

3048413R92

COUPLING

ATTACHMENT self-sealing coupling

1шт.

Can only be used when tractor is fitted with Hydraulic Lift attachment (Vary Touch)

1шт.

1

705512R1

BOLT,1/2"-14 x 1 5/8"

self-sealing coupling

1шт.

2

704337R1

SEALING WASHER

WASHER, Dowty, 1/2" BSP

2шт.

3

3048414R91

PIPE

assy., self-sealing coupling

1шт.

4

752286R1

NUT

lock, 1/2" BSP

1шт.

5

3065076R11

SUPPORT

BRACKET self-sealing coupling

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

6

551658R1

WASHER

plain, 25/32" x 1-1/4 x 22 ga.

1шт.

6

Q3501

WASHER

plain, 25/32" x 1-1/4" x 16 ga.

1шт.

575813R1

WASHER

plain, 25/32" x 1-1/4" x 11 ga.

1шт.

7

3041962R91

COUPLING, BREAK AWAY

COUPLING self-sealing, male half, comprising

1шт.

3045135R1

RING

O-RING

1шт.

3045134R1

SLEEVE, sub. assy.

1шт.

3045136R1

SLEEVE

tubular

1шт.

3045137R1

SPRING

1шт.

7

705579R91

COUPLING

self-sealing (Dowty) male half, comprising

1шт.

3045140R1

RING

O-RING

1шт.

3045138R1

SPRING locking

1шт.

3045139R1

SPRING valve (male half)

1шт.

3045141R1

VALVE

1шт.

3045142R91

SLEEVE

assy. valve

1шт.

8

705578R1

CYLINDER END CAP

CAP coupling, dust, optional

1шт.

8

3041963R1

CAP

dust, optional

1шт.
