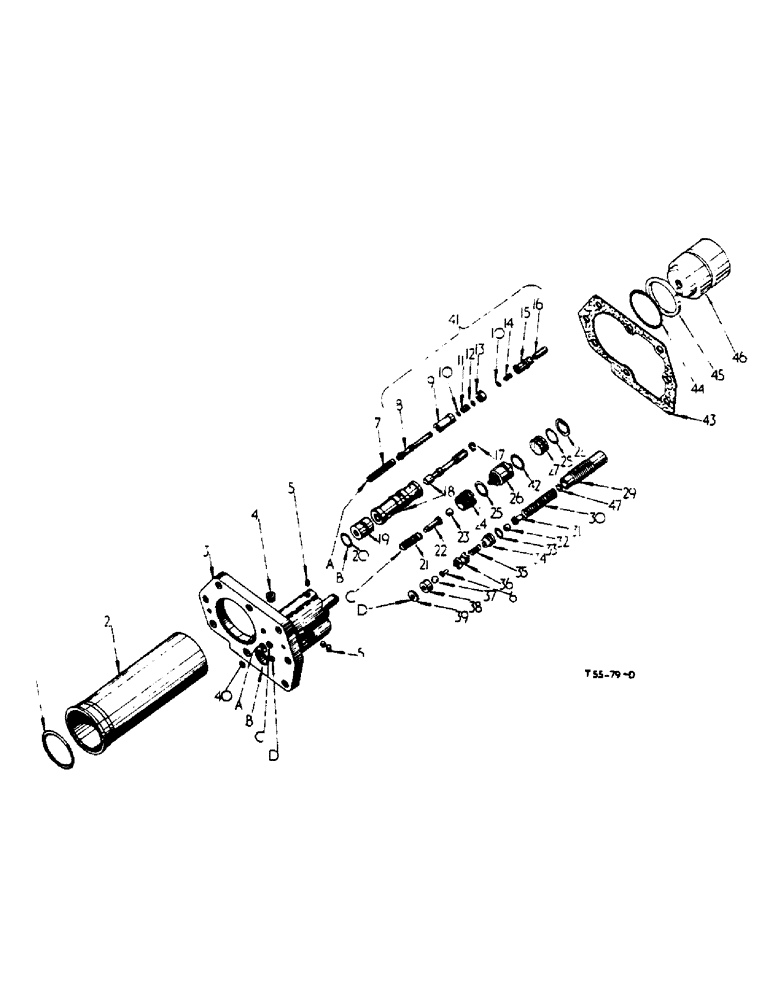

Запчасти Case IH 434 (5-19) - CONTROL VALVE, VALVE BODY - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

1

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

cyl., 2-5/8" x 3" x 3/16 (class 6)

1шт.

2

3044434R1

SLEEVE

CYLINDER, hydraulic lift

1шт.

3

3044426R1

BODY

valve

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

444697

PLUG,Hex Soc, 3/8"-18

3/8" NPT

1шт.

5

444687

PLUG,Hex Soc, 1/8"-27

3шт.

6

3063495R1

SEAT

RIDER, ball

1шт.

7

41608D

SPRING

spool

1шт.

8

SPOOL, lowering, order 3049142R93

1шт.

9

SLEEVE, lowering, order 3049142R93

1шт.

10

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4" x 3/8" x 1/16"

2шт.

11

GLAND, lowering spool, order 3049142R93

1шт.

12

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16" x 7/16" x 1/16" (class 6)

1шт.

13

PLUG, lowering sleeve, order 3049142R93

1шт.

14

3045610R1

SPRING

plunger

1шт.

15

SLEEVE, lowering spool, order 3049142R93

1шт.

16

PLUNGER, lowering spool, order 3049142R93

1шт.

17

3040910R1

RETAINER

CIRCLIP, internal 1/2" bore

1шт.

18

3049088R91

SPOOL

and SLEEVE, w/CIRCLIP 3040910R1 assy., (matched set)

1шт.

19

3040809R1

PLUG

main sleeve

1шт.

20

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

valve sleeve, 13/16" x 1-1/16" x 1/8

1шт.

21

352026R2

SPRING

flow control valve ball

1шт.

22

350084R2

SEAT

RIDER, flow control valve ball

1шт.

23

3072912R1

BALL

flow control valve

1шт.

24

751562R1

SEAT

flow control valve

1шт.

25

704378R1

O-RING,0.139" Thk x 0.85" ID

2шт.

26

751563R91

PISTON

valve cpte.

1шт.

27

751566R1

PLUG

valve piston

1шт.

28

751567R1

RETAINER

CIRCLIP, internal, 1-3/16" bore

1шт.

29

3108947R2

HOUSING

relief valve spring, 434D/25466 up

1шт.

Including: 434P/2870 up, 434 N.T./petrol/521 up, 434 N.T./diesel/1121 up

1шт.

29

751558R2

HOUSING

relief valve spring, Serial Range: up-434D/25465

1шт.

Order 3108946R3 together w/3108947R2

1шт.

Including up to 434P/2869, up to 434 N.T./petrol/52, up to 434 N.T./diesel/1120

1шт.

30

751557R1

SPRING

relief valve

1шт.

31

3108946R3

SEAT

RIDER relief valve ball ,434D/25466 up

1шт.

Including: 434P/2870 up, 434 N.T./petrol/521 up, 434 N.T./diesel/1121 up

1шт.

31

751556R2

SEAT

RIDER relief valve ball, Serial Range: up-434D/25465

1шт.

Order 3108946R3 together w/3108947R2

1шт.

Including up to 434P/2869, up to 434 N.T./petrol/520, up to 434 N.T./diesel/1120

1шт.

32

3072883R1

BALL,3/8" Dia

relief valve

1шт.

33

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

valve seat, 9/16" x 3/4" x 3/32" (class 6)

1шт.

34

751554R1

SEAT

relief valve

1шт.

35

3074227R1

SPRING

non-return valve

1шт.

36

751555R2

SLEEVE

non-return valve

1шт.

37

3072883R1

BALL,3/8" Dia

non-return valve

1шт.

38

751559R2

SEAT

non-return valve

1шт.

39

751560R1

COPPER WASHER

copper, 9/32" x 23/32" x 16 ga.

1шт.

40

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

flow control valve bore, 3/8" x 1/2" x 1/16" (class 6)

1шт.

41

3049142R93

SPOOL

lowering, assy., comprising

1шт.

On orders for 3049142R91 order PACKAGE 3063660R91

1шт.

NSS

NOT SOLD SEPARAT

GLAND

1шт.

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

706584R1

GASKET

O-RING

2шт.

NSS

NOT SOLD SEPARAT

PLUG

1шт.

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3045610R1

SPRING

1шт.

42

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

valve piston

1шт.

43

3044437R2

GASKET

valve body

1шт.

44

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2-5/8" x 3" x 3/16"

1шт.

45

3072018R1

WASHER

back-up

1шт.

46

3044376R92

PISTON

assy., comprising

1шт.

On orders for 3044376R91, furnish 3044376R92 w/WASHER 3072018R1 and O-RING 381871R91

1шт.

3072882R1

BALL,3/32" Dia

chrome steel, . (grade 2) 3/32" Dia

1шт.

707747R1

SCRAPER RING

O-RING relief valve

1шт.

707745R1

PLUG

relief valve

1шт.

3044377R4

PISTON

1шт.

707746R2

SEAT

RIDER ball

1шт.

57561D

VALVE SPRING

SPRING valve

1шт.

47

3110027R1

SHIM

steel, 434D/25466 up

2/UARшт.

Including: 434P/2870 up, 434 N.T./petrol/521 up, 434 N.T./diesel/1121 up

1шт.

3047842R1

RETAINER

CIRCLIP piston oil seal used w/Circlip grooved piston

1шт.

3044379R1

RETAINER

oil seal used w/Circlip grooved piston

1шт.

3044378R1

SEAL

oil, piston used w/Circlip grooved piston

1шт.

3063656R93

VALVE

PACKAGE non-return valve and relief valve, comprising, ball, housing, O-ring, riders, seats springs sleeve washer and shim

1шт.

3072883R1

BALL,3/8" Dia

2шт.

3108947R2

HOUSING

1шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

3063495R1

SEAT

RIDER

1шт.

3108946R3

SEAT

RIDER

1шт.

751554R1

SEAT

1шт.

751559R2

SEAT

1шт.

751557R1

SPRING

1шт.

3074227R1

SPRING

1шт.

751555R2

SLEEVE

1шт.

751560R1

COPPER WASHER

1шт.

3110027R1

SHIM

5шт.

3063659R91

REPAIR KIT

PACKAGE service, lowering spool, comprising O-rings, spool and spring

1шт.

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

1шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

1шт.

3063657R91

SPOOL

1шт.

41058DA

SPRING

1шт.

3063660R91

CONVERSION KIT

PACKAGE improvement, lowering spool, comprising O-rings, spool and spring

1шт.

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

1шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

1шт.

3049142R92

SPOOL

1шт.

41608DA

SPRING

1шт.

3067990R91

KIT

PACKAGE service, control valve O-ring, comprisng all parts listed below

1шт.

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

1шт.

704753R1

GASKET,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

O-RING

2шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

706584R1

GASKET

O-RING

4шт.

704378R1

O-RING,0.139" Thk x 0.85" ID

2шт.

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

2шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

2шт.

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

3067284R1

GASKET

O-RING

1шт.

3045116R1

O-RING,0.103" Thk x 0.469" ID, Cl 6

O-RING

1шт.
