(1-10[1]) - PRE-COMBUSTION CHAMBER AND HOLDER - DIESEL ENGINE

Запчасти Case IH 434 (1-10[1]) - PRE-COMBUSTION CHAMBER AND HOLDER - DIESEL ENGINE (02) - ENGINE

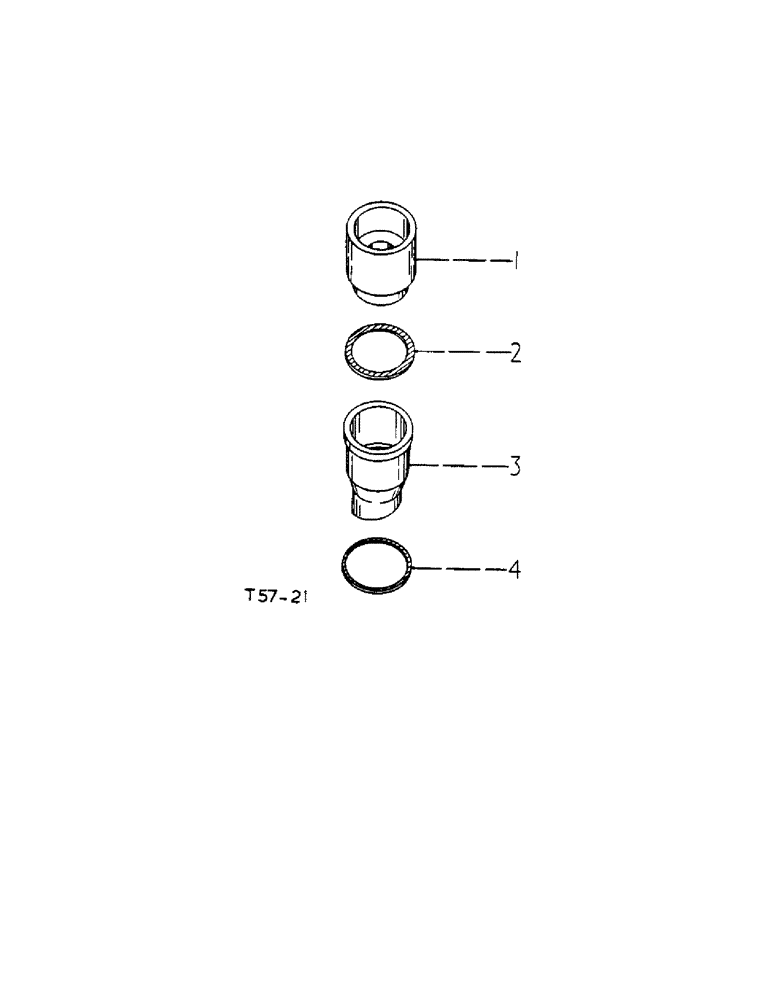

Схема запчастей Case IH 434 - (1-10[1]) - PRE-COMBUSTION CHAMBER AND HOLDER - DIESEL ENGINE (02) - ENGINE
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

708314R1

CHAMBER

HOLDER, pre-combustion chamber

4шт.

2

710382R3

GASKET,29mm ID x 35mm OD x 1.22mm Thk

pre-combustion chamber - upper

4шт.

3

3045523R1

CHAMBER

pre-combustion

4шт.

4

710383R1

GASKET

pre-combustion chamber- lower

4шт.

Выбрано товаров: 4
