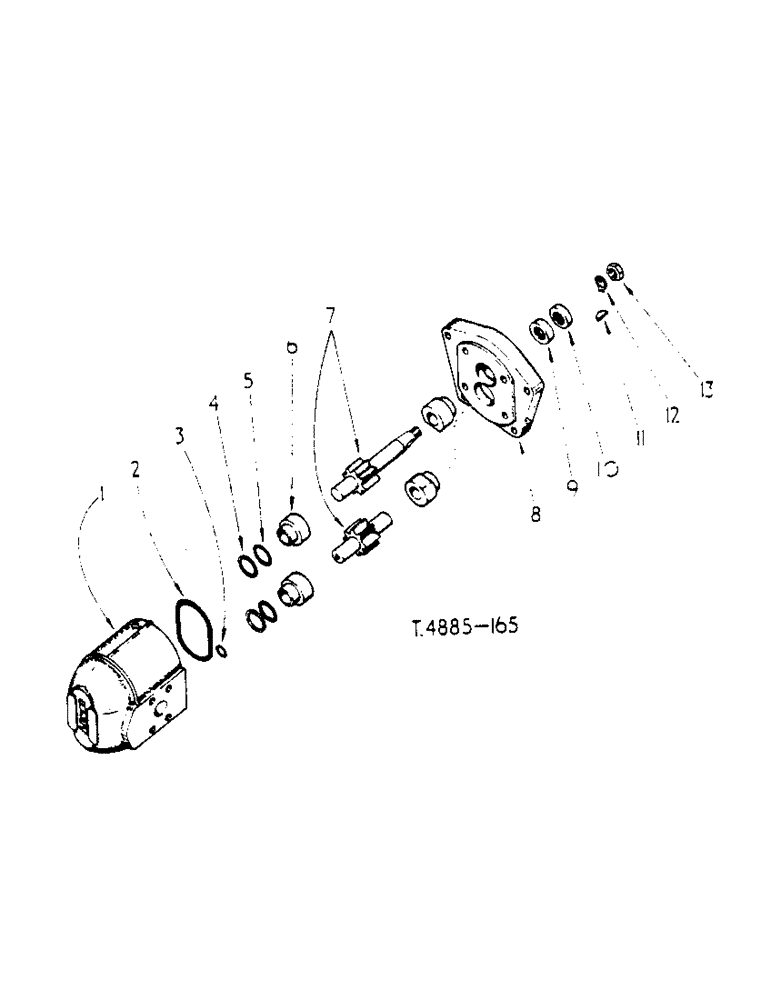

Запчасти Case IH 434 (5-09) - HYDRAULIC PUMP, 3067220R91 - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

3067220R91

PUMP

hyd. cpte., (Dowty)

1шт.

1

3067281R1

BODY, pump

1шт.

2

O-RING

1шт.

Part of seal package P/N 3105195R91

1шт.

3

O-RING

1шт.

Part of seal package P/N 3105195R91

1шт.

4

3067289R1

RING, back-up

2шт.

5

O-RING

2шт.

Part of seal package P/N 3105195R91

1шт.

6

3067285R91

BUSHES (matched pair)

2шт.

7

3067283R91

GEAR, drive and driven (matched pair)

1шт.

8

3067281R1

COVER, pump body

1шт.

3067290R1

BOLT

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

SEAL, oil

1шт.

Part of seal package P/N 3105195R91

1шт.

10

SEAL, oil

1шт.

Part of seal package P/N 3105195R91

1шт.

11

706067R1

KEY

No. 405 Woodruff

1шт.

12

706069R1

LOCK WASHER

WASHER, tab

1шт.

13

3044638R1

NUT

LOCKNUT

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3/4" x 9/16" x 3/32", class 5 (outlet)

1шт.

3044642R1

SCREW

1/4" x 3/4", "Allen" (outlet port)

2шт.

706053R1

SPRING WASHER

lock (outlet port)

2шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8" x 1-1/16" x 3/32", class 5 (inlet)

1шт.

706075R1

SCREW

5/16" x 3/4", "Allen" (inlet port)

2шт.

706072R1

WASHER

lock (inlet port)

2шт.

3105195R91

STRIPPER PACKAGE

PACKAGE, seal, Includes: Ref. 2, 3, 5, 9 and 10

1шт.

3070813R91

ATTACHMENT hydraulic lift, comprising CONTROL LEVER (see Figure 5-11); CONTROL VALVE ASSY., see Figure 5-17; HOUSING; LIFT ARMS (see Figure 5-13); PUMP (see Figure 5-14); PIPES suction and pressure (see Figure 5-14); (Vary Touch)

1шт.
