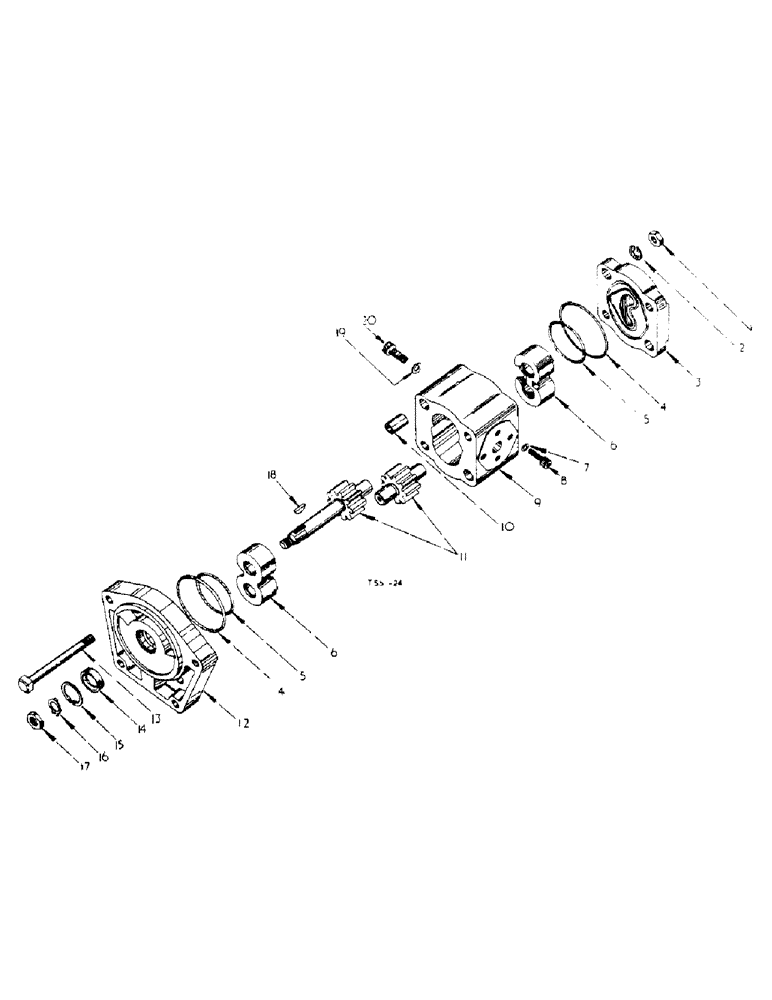

Запчасти Case IH 434 (5-08) - HYDRAULIC PUMP, 704330R95 - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

704330R95

PUMP

cpte., hydraulic Plessey C-25-VR, comprising: Ref. 1 - 20

1шт.

1

214441

NUT

3/8" UNF

4шт.

2

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

3044628R1

COVER

1шт.

4

O-RING flange sealing

2шт.

Part of seal package P/N 3044645R91

1шт.

5

O-RING pressure relief

2шт.

Part of seal package P/N 3044645R91

1шт.

6

3066762R91

BEARING

2шт.

7

706053R1

SPRING WASHER

spring

2шт.

8

3044642R1

SCREW

Allen, 1/4" x 3/4"

2шт.

9

3044633R1

BODY

pump

1шт.

O-RING manifold, inlet

1шт.

Part of seal package P/N 3044645R91

1шт.

O-RING manifold, outlet

1шт.

Part of seal package P/N 3044645R91

1шт.

10

3064276R1

PIN

DOWEL, hollow

4шт.

11

3044627R91

GEAR

PACK, gear spares

1шт.

12

708395R1

FLANGE

1шт.

12

3044630R1

FLANGE

(clockwise)

1шт.

13

3072021R1

BOLT

sq-hd., 3/8" UNF x 3-5/8"

4шт.

Part of seal package P/N 3044645R91

1шт.

14

SEAL oil

1шт.

Part of seal package P/N 3044645R91

1шт.

14

3044625R91

SEAL

oil

1шт.

15

706066R1

RETAINER

CIRCLIP

1шт.

16

706069R1

LOCK WASHER

WASHER, lock

1шт.

17

3044638R1

NUT

lock

1шт.

18

706067R1

KEY

Woodruff

1шт.

19

706072R1

WASHER

spring

2шт.

20

706075R1

SCREW

Allen, 5/16" x 3/4"

2шт.

3044645R91

SEAL

PACKAGE, seal, Includes: Ref. 4, 5, 13 and Ref. 14 (without the part number) and the two O-rings shown following Ref. 9

1шт.
