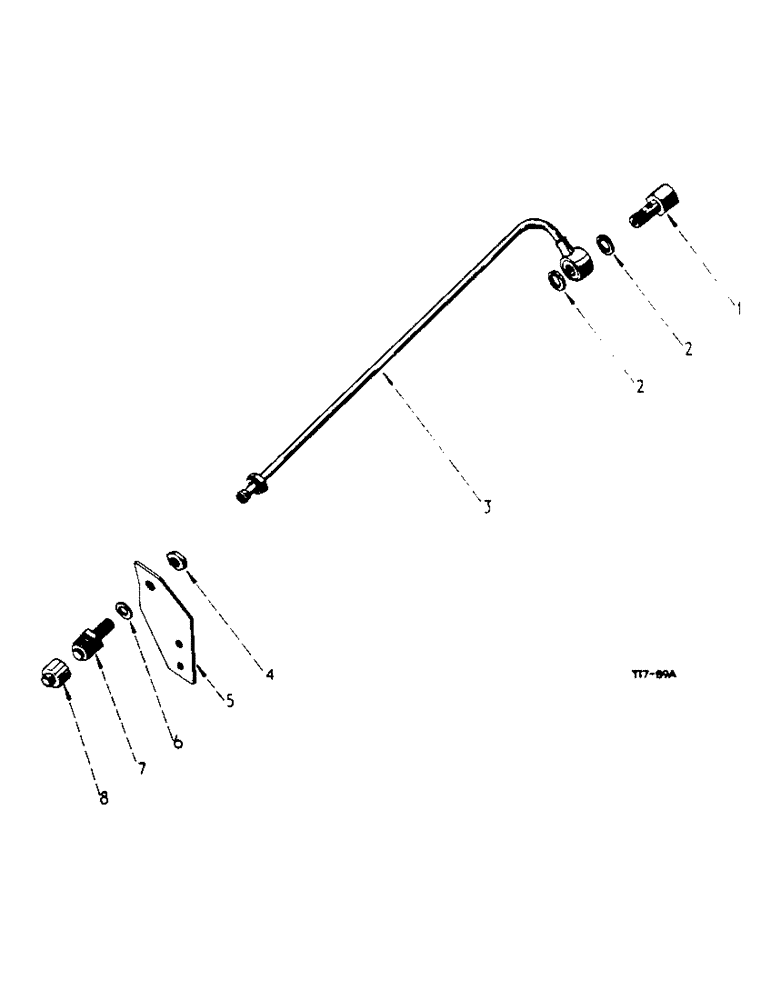

Запчасти Case IH 434 (5-05) - SELF-SEALING COUPLING ATTACHMENT - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

705517R91

GUARD ASSY.

ATTACHMENT, self-sealing coupling

1шт.

Can only be used when tractor is fitted with hydraulic lift attachment (Mechanical Depth Control)

1шт.

1

705512R1

BOLT,1/2"-14 x 1 5/8"

self-sealing coupling

1шт.

2

704337R1

SEALING WASHER

(Dowty) 1/2" BSP

2шт.

3

706588R91

PIPE

assy., self-sealing coupling

1шт.

4

752286R1

NUT

lock, 1/2" BSP

1шт.

5

705516R2

SUPPORT

self-sealing coupling

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

hex-hd., 1/2" x 7/8"

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

551658R1

WASHER

plain, 25/32" x 1-1/4" x 22 ga.

1шт.

Q3501

WASHER

plain, 25/32" x 1-1/4" x 16 ga.

1шт.

573813R1

WASHER plain, 25/32" x 1-1/4" x 11 ga.

1шт.

7

3041962R91

COUPLING, BREAK AWAY

COUPLING self-sealing, male half, comprising

1шт.

3045135R1

RING

O-RING

1шт.

3045134R91

SLEEVE

assy., sub.

1шт.

3045136R1

SLEEVE

tubular

1шт.

3045137R1

SPRING

1шт.

7

705579R91

COUPLING

self-sealing (Dowty) male half, comprising

1шт.

3045140R1

RING

O-RING

1шт.

3045138R1

SPRING locking

1шт.

3045139R1

SPRING valve (male half)

1шт.

3045141R1

VALVE

1шт.

3045142R91

SLEEVE

valve assy.

1шт.

8

705578R1

CYLINDER END CAP

CAP, coupling, dust, optional

1шт.

8

3041963R1

CAP

dust, optional

1шт.

706589R91

KIT

PACKAGE service, self-sealing coupling pipe and coupling, comprising all parts listed below

1шт.

705579R1

COUPLING

1шт.

752286R1

NUT

1шт.

706588R92

PIPE

1шт.
