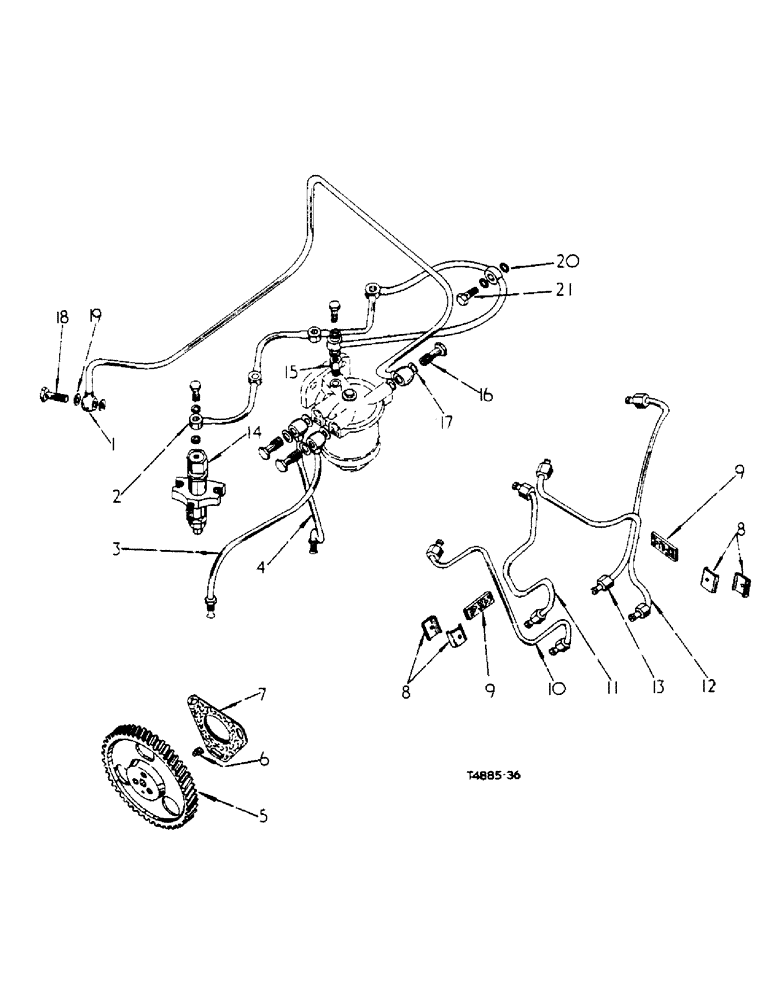

Запчасти Case IH 434 (1-09) - FUEL INJECTION SYSTEM - DIESEL ENGINE (02) - ENGINE

1

3043649R94

PIPE

cpte., fuel pump to filter fuel

1шт.

2

3070932R91

PIPE

fuel spill

1шт.

3

3043651R91

PIPE

injection pump to filter, excess fuel

1шт.

4

3043650R93

PIPE

cpte., fuel filter to injection pump

1шт.

5

708290R11

GEAR

w/PIN 708291R1 cpte., injection pump

1шт.

425463

SCREW,Hex Hd, 5/16"-24 x 3/4", w/LW

w/Lock Washer Ext. Tooth, 5/16" UNF x 3/4" hex-hd.

3шт.

6

708291R1

DOWEL

PIN, dowel

1шт.

7

708289R2

GASKET

injection pump

1шт.

8

841432R1

CLAMP

CLIP

4шт.

703700R1

NUT, 12 ANC type P Nyloc lock

2шт.

100780

VALVE

SCREW, No. 12-24 x 7/8" mach.

2шт.

9

841433R1

INSULATOR BLOCK

PAD, injection pipe clip

2шт.

10

708307R21

PIPE

cpte., No. 1 injection

1шт.

11

708308R31

PIPE

cpte., No. 2 injection

1шт.

12

708309R1

PIPE, cpte., No. 3 injection

1шт.

13

708310R21

PIPE

cpte., No. 4 injection

1шт.

14

3040870R92

FUEL SYSTEM INJECTOR

NOZZLE, cpte., and nozzle holder (C.A.V. 5306801) (see Figure 1-10)

4шт.

103026

NUT,3/8"-24, G5

8шт.

706077R1

WASHER

8шт.

15

3043646R91

FITTING

VALVE, assy., ball check

1шт.

3043647R1

CAPSCREW

SCREW, connection

1шт.

701735R1

WASHER

2шт.

3049111R1

SEALING WASHER

1шт.

16

708296R1

CONNECTOR, ELEC

BOLT, fuel filter banjo

3шт.

17

708297R1

GASKET

WASHER, banjo bolt

6шт.

18

708296R1

CONNECTOR, ELEC

BOLT, fuel feed pump banjo

2шт.

19

708297R1

GASKET

WASHER, banjo bolt

4шт.

20

751876R1

SEALING WASHER

WASHER, sealing

2шт.

21

3070933R1

BOLT,5/16" - 18 x 0.88"

banjo

1шт.

707321R91

ELECTRICAL WIRE

SEAL, governor

2шт.
