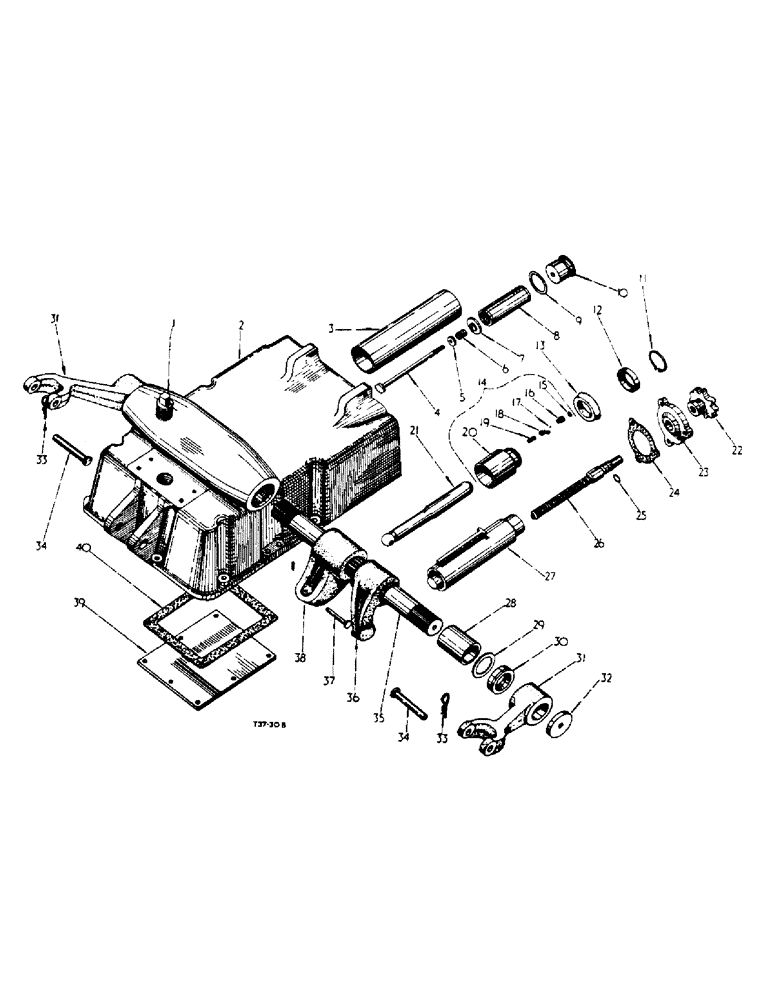

Запчасти Case IH 434 (5-02) - HYDRAULIC LIFT ATTACHMENT, HYDRAULIC LIFT - HYDRAULIC ATTACHMENTS (08) - HYDRAULICS

3070814R91

ATTACHMENT, hydraulic lift, mechanical depth control, comprising: Ref. 1 - 40 and HYDRAULIC PUMP AND CONTROL VALVE (see Figure 5-04)

1шт.

1

217-442

PLUG,3/4" - 14

sq-hd., 3/4" NPT pipe optional

1шт.

1

NLS

NO LONGER SERVICED

sq-hd., 3/4" NPT pipe optional

1шт.

1

217-442

PLUG,3/4" - 14

sq-hd., 3/4" NPT pipe optional

1шт.

2

704274R31

HOUSING, w/two PLUGS 112428 and PLUG 103869 cpte., hydraulic lift

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

3шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, hex-hd., 3/8" x 1-3/8"

11шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

3

704340R2

CYLINDER hydraulic

1шт.

4

18575R1

BOLT, hex-hd., 5/16"-24 UNF x 6-1/2"

1шт.

5

Q398

WASHER

plain, 11/32" x 7/8" x 16 ga.

1шт.

6

704738R1

VALVE SPRING

SPRING hold-down, by-pass filter

1шт.

7

704739R1

SEAT, by-pass filter hold-down spring

1шт.

8

704353R91

FILTER

assy., by-pass

1шт.

9

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

O-RING by-pass filter

1шт.

10

704740R2

BODY

by-pass filter

1шт.

705817R1

PIN, by-pass filter

1шт.

11

704369R1

RING

CIRCLIP, piston oil seal

1шт.

12

704368R1

RING, SNAP

RETAINER, oil seal

1шт.

13

704367R1

BUSHING

SEAL oil, piston, optional

1шт.

3070699R91

SEAL oil, piston, optional

1шт.

14

707744R92

PISTON ASSY.

PISTON, assy., comprising

1шт.

3072882R1

BALL,3/32" Dia

1шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

704366R2

PISTON

1шт.

707745R1

PLUG

1шт.

707746R2

SEAT

RIDER

1шт.

3066410R1

SPRING

1шт.

15

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Class 6, 3/8" x 1/2"

1шт.

16

707745R1

PLUG

relief valve

1шт.

17

3072882R1

BALL,3/32" Dia

chrome steel (grade 2) . 3/32" Dia

1шт.

18

707746R2

SEAT

RIDER, ball

1шт.

19

3066410R1

SPRING

valve

1шт.

20

704366R2

PISTON

1шт.

21

704363R2

ROD, connecting

1шт.

705206R1

BUSHING

BUSH, connecting rod

1шт.

22

704379R1

DRIVE SPROCKET

WHEEL, hand, depth control

1шт.

188943

DOWEL

PIN, groove, 3/16" x 1-1/8"

1шт.

23

704380R1

SUPPORT

depth control

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

3шт.

24

704381R1

GASKET

depth control support

1шт.

25

704378R1

O-RING,0.139" Thk x 0.85" ID

RING, depth control, sealing

1шт.

26

707889R1

SCREW

depth control

1шт.

27

704370R21

SPRING, assy., depth control

1шт.

28

704356R1

BUSHING

BUSH, rockshaft

2шт.

29

704360R1

WASHER

rockshaft

2шт.

30

706095R91

SEAL

oil, rockshaft, optional

2шт.

30

706308R91

SEAL

oil, rockshaft, optional

2шт.

30

709546R91

OIL SEAL

oil, rockshaft, optional

2шт.

31

704361R4

ARM, lift

2шт.

32

707754R1

PLATE, lift arm, retaining

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

720631R1

LINCH PIN

PIN, cotter

2шт.

34

3044309R1

PIN

head, std., 5/8" x 3-3/8"

2шт.

35

707760R2

ROCKSHAFT

1шт.

36

704359R2

CAM, depth control

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

hex-hd., 3/8" UNF x 1"

1шт.

37

U5354

HEADED PIN,5/16" x 2 7/8"

PIN, head, std., 5/16" x 2-7/8"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

131402H

WASHER

plain, 11/32" x 9/16" x 16 ga.

1шт.

38

704358R3

ARM

rocker

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

hex-hd., 3/8" UNF x 1"

1шт.

39

704338R1

PLATE

cover, hydraulic lift housing

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

40

704339R1

GASKET

cover plate, hydraulic lift housing

1шт.

112428

PLUG

cork, No. o (Hydraulic Lift Housing, cpte.)

2шт.
