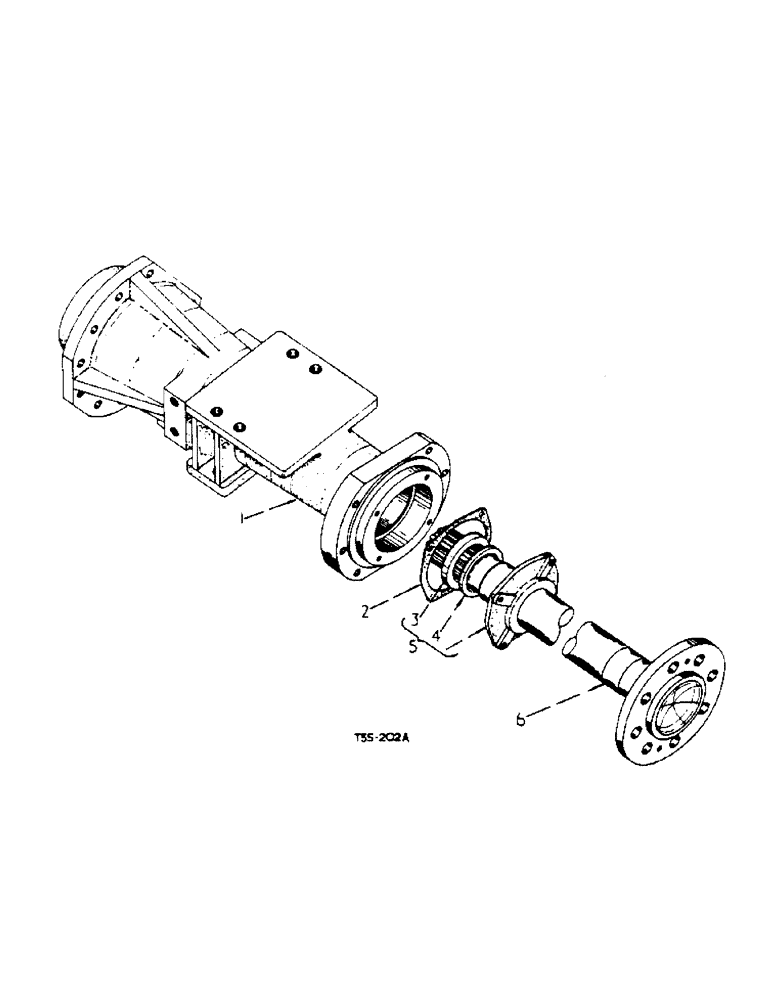

Запчасти Case IH 434 (6-077) - HAND OPERATED DRUM BRAKE ATTACHMENT, REAR AXLE AND CARRIERS - ATTACHMENTS (07) - BRAKES

1

3074046R1

CARRIER, rear axle, L.H.

1шт.

434D/19033, 434P/2303 & 434HV/515 up

1шт.

1

3046386R1

CARRIER, rear axle, L.H.

1шт.

up to 434D/19032, 434P/2302 & 434HV/514

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

hex-hd., 1/2" x 1-5/8"

10шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

1

3074047R1

CARRIER, rear axle, R.H.

1шт.

434D/19033, 434P/2303 & 434HV/515 up

1шт.

1

3046387R1

CARRIER, rear axle, R.H.

1шт.

up to 434D/19032, 434P/2302 & 434HV/514

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

hex-hd., 1/2" x 1-5/8"

10шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

2

709109R1

GASKET

rear axle bearing retainer

2шт.

3

703916R91

SEAL

oil, opt.

2шт.

703917R92

OIL SEAL

oil, opt.

2шт.

3069987R91

SEAL

oil, opt.

2шт.

4

703915R1

WASHER,2.56mm ID x 3.13mm OD x 0.25mm Thk

rear axle felt

1шт.

5

709110R11

RETAINER

w/SEAL 703916R91 & WASHER 703915R1

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

3110730R1

CENTER AXLE

AXLE, rear

2шт.

3047577R2

BOLT,Wheel, 5/8" - 18 x 2 1/2"

rear wheel hub

16шт.
