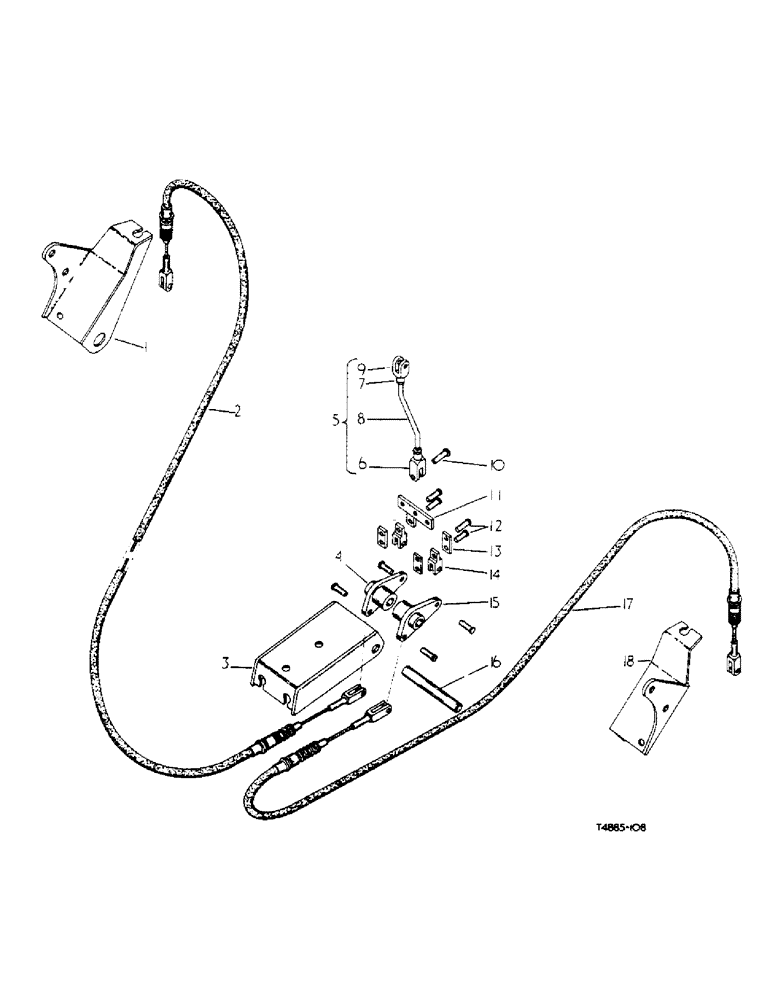

Запчасти Case IH 434 (6-075) - HAND OPERATED DRUM BRAKE ATTACHMENT, HAND BRAKE LINKAGE - ATTACHMENTS (07) - BRAKES

1

3068506R91

BRACKET

cpte., anchor, cam and cable L.H.

1шт.

2

3068525R91

CABLE

cpte., L.H.

1шт.

3069964R1

RING, SNAP

CIRCLIP, ext. 19 mm, opt.

1шт.

3067977R1

O-RING

CIRCLIP, opt.

1шт.

3

3068532R91

BRACKET

cpte., cable and compensator

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2" x 1-1/2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

3068516R91

CRANK LEVER

BELLCRANK, cpte., L.H.

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

5

3071355R11

ROD

cpte., connecting, comprising:

1шт.

6

3068529R1

CLEVIS

FORK, pull rod end

1шт.

7

120368

NUT,5/16"-24, G5

2шт.

8

3071355R1

ROD, connecting

1шт.

9

3071486R1

CLEVIS

rod end

1шт.

10

3068523R1

PIN

yoke

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

95-11041

WASHER,3/8"

flat, 13/32" x 13/16 x 16 ga.

1шт.

11

3068522R1

YOKE, compensator

1шт.

12

3068512R1

PIN

link

8шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

8шт.

95-11034

WASHER,1/4"

flat, 11/32" x 11/16" x 16 ga.

8шт.

13

3068521R1

LINK, compensator

4шт.

14

3068520R1

LINK, swivel

2шт.

15

3068517R91

CRANK

BELLCRANK, cpte., R.H.

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

16

3068524R1

PIN

bellcrank axis

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

flat, 21/32" x 1-5/16" x .095

2шт.

17

3068526R91

CABLE

cpte., R.H.

1шт.

18

3068507R91

BRACKET

anchor, cam and cable cpte., R.H.

1шт.

3068531R1

GROMMET, L.H. fender

1шт.

3071354R1

CLIP

cable

2шт.
