(6-074) - HAND OPERATED DRUM BRAKE ATTACHMENT, BRAKE PEDAL AND SHAFT - ATTACHMENTS

Запчасти Case IH 434 (6-074) - HAND OPERATED DRUM BRAKE ATTACHMENT, BRAKE PEDAL AND SHAFT - ATTACHMENTS (07) - BRAKES

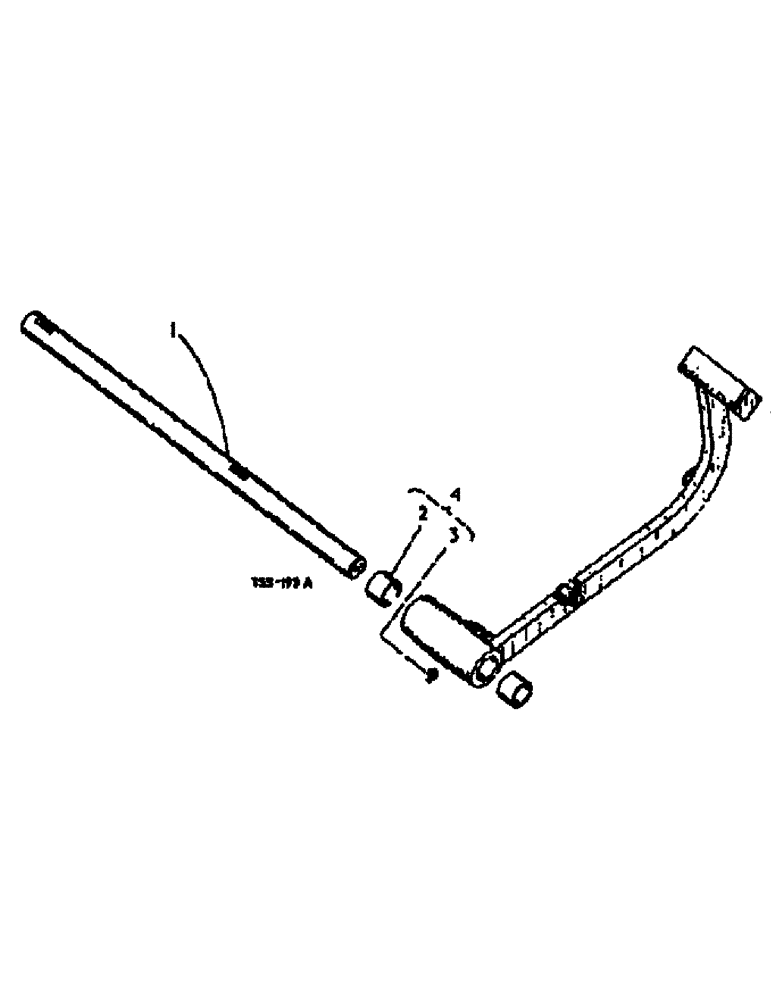

Схема запчастей Case IH 434 - (6-074) - HAND OPERATED DRUM BRAKE ATTACHMENT, BRAKE PEDAL AND SHAFT - ATTACHMENTS (07) - BRAKES
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3066289R1

SHAFT

brake pedal

1шт.

2

3061206R1

BUSHING

brake pedal cross shaft

1шт.

3

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, straight, 1/8 PTF x 90 degree

1шт.

4

3066292R91

PEDAL, w/two BUSHING 3061206R1 and LUBRICATOR 109462 cpte., R.H. brake

1шт.

Выбрано товаров: 4
