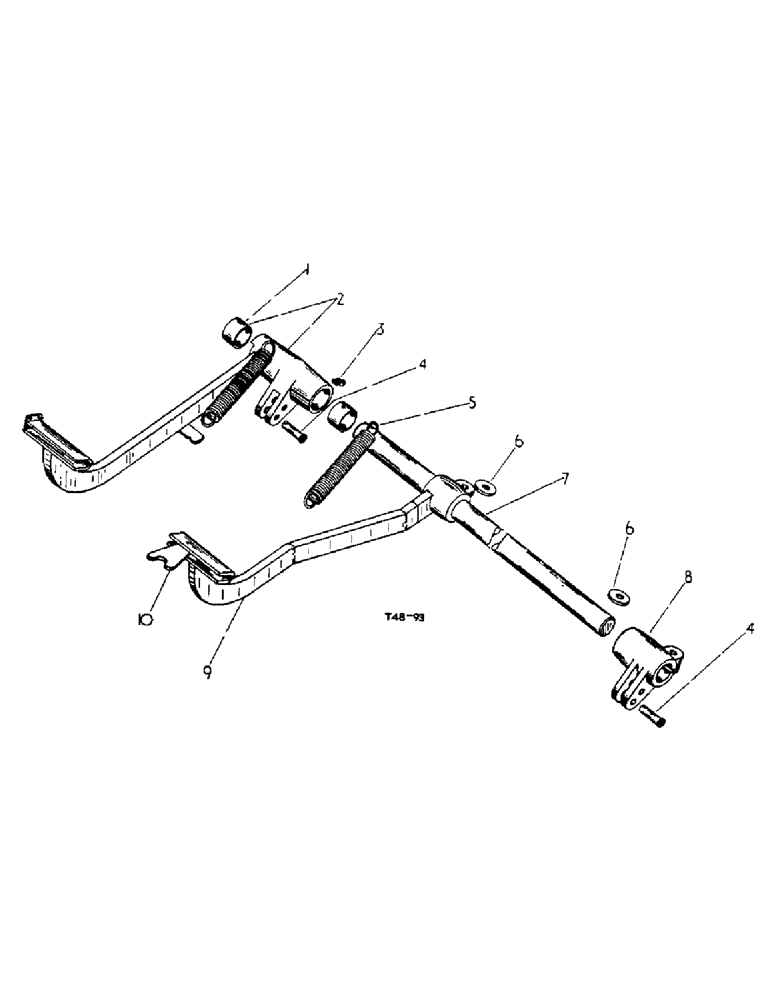

Запчасти Case IH 434 (4-30) - FOOT BRAKES AND LINKAGE - CHASSIS (07) - BRAKES

1

3061206R1

BUSHING

brake pedal cross shaft

2шт.

2

3064177R91

PEDAL

w/FITTING 109461 and two BUSHING 3061206R1 cpte., R.H. brake

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

4

3064219R1

PIN

footbrake adjuster

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

120396

WASHER

plain, 17/32" x 1-1/16" x .095 ga.

2шт.

5

3064186R2

SPRING

brake pedal return

2шт.

6

3064184R1

KEY

brake lever

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

3064175R2

SHAFT

brake pedal

1шт.

3072088R1

RETAINER

CIRCLIP 434D/9447 up, including 434P/1341 up

1шт.

8

3064185R1

LEVER

L.H. disc brake

1шт.

9

3064176R91

PEDAL

w/PLATE 43751DB, PIN 442946 and SPRING 51293D cpte., L.H. brake

1шт.

10

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

51293D

SPRING

brake pedal lock, plate tension

1шт.

442946

LEVER

groove, 1/4" x 5/8" type 3

1шт.
